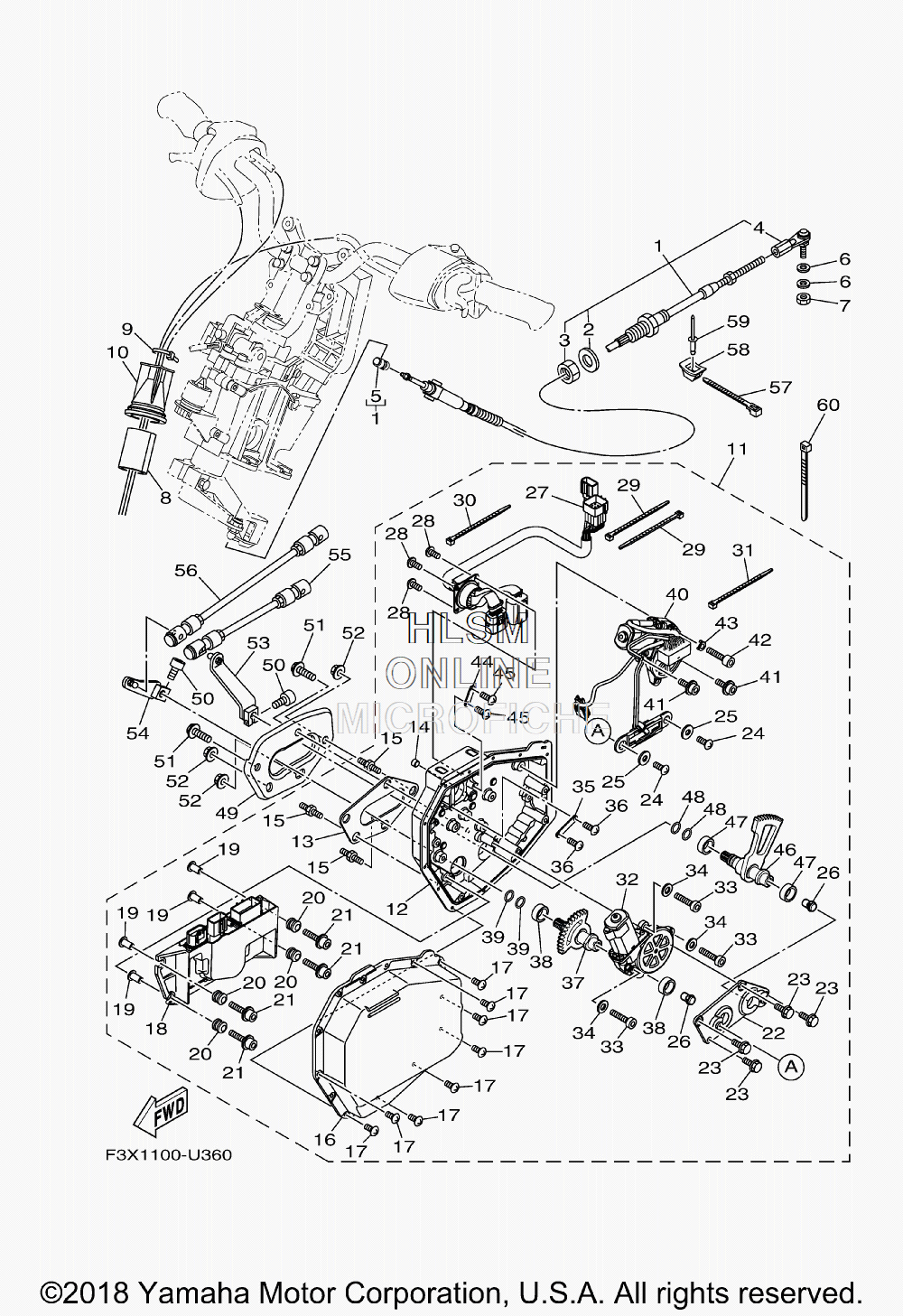

CONTROL CABLES для Yamaha FX CRUISER HO - 2019 года выпуска
-
№АртикулНазвание
-
1F1S-61481-10-00 CABLE, STEERINGCABLE, STEERING
-
2F1B-61438-00-00 ...PACKING C...PACKING C
-
3F1B-6151S-00-00 ...NUT...NUT
-
4F1B-61461-02-00 ...STUD, JOINT BALL...STUD, JOINT BALL
-
5F2N-61460-00-00 ...BALL JOINT ASSY...BALL JOINT ASSY
-
690201-06906-00 WASHER, PLATEWASHER, PLATE
-
79538R-06700-00 NUTNUT
-
8GJ1-U7578-21-00 PACKING, HOSE 2PACKING, HOSE 2
-
990464-32801-00 CLAMPCLAMP
-
10F3J-U822E-00-00 GROMMETGROMMET
-
11F3X-6140B-02-00 MOTOR ASSY.MOTOR ASSY.
-
12F3J-6152K-00-00 ...HOUSING...HOUSING
-
13F3J-63262-00-00 ...SEAL...SEAL
-
14F3J-613D0-00-00 ...PLUG...PLUG
-
15F3J-67369-00-00 ...BOLT, STUD...BOLT, STUD
-
16F3J-6143J-00-00 ...COVER...COVER
-
17F3J-68198-00-00 ...SCREW...SCREW
-
18F3X-68197-00-00 ...CONTROL UNIT...CONTROL UNIT
-
1990387-06119-00 ...COLLAR...COLLAR
-
206A0-82317-00-00 ...DAMPER, IGNITION COIL...DAMPER, IGNITION COIL
-
21F3J-613B4-20-00 ...BOLT...BOLT
-
22F3J-61256-00-00 ...PLATE...PLATE
-
23F3J-613B3-00-00 ...BOLT, HEXAGON...BOLT, HEXAGON
-
24F3J-68198-20-00 ...SCREW...SCREW
-
25F3J-613C3-10-00 ...WASHER, PLAIN...WASHER, PLAIN
-
26F3J-60428-00-00 ...MAGNET, SENSOR...MAGNET, SENSOR
-
27F3J-68270-00-00 ...WIRE HARNESS ASSY...WIRE HARNESS ASSY
-
28F3J-68198-10-00 ...SCREW...SCREW
-
29F3J-68273-00-00 ...CLAMP...CLAMP
-
30F3J-68273-00-00 ...CLAMP...CLAMP
-
31F3J-68273-00-00 ...CLAMP...CLAMP
-
32F3J-68352-00-00 ...MOTOR...MOTOR
-
33F3J-613B4-00-00 ...BOLT...BOLT
-
34F3J-613C3-00-00 ...WASHER, PLAIN...WASHER, PLAIN
-
35F3J-61348-00-00 ...PLATE...PLATE
-
36F3J-68198-20-00 ...SCREW...SCREW
-
37F3J-60221-00-00 ...SHAFT, 1...SHAFT, 1
-
38F3J-61344-00-00 ...BUSH...BUSH
-
39F3J-613A5-00-00 ...O-RING...O-RING
-
40F3J-68352-10-00 ...MOTOR...MOTOR
-
41F3J-613B4-10-00 ...BOLT...BOLT
-
42F3J-613B4-00-00 ...BOLT...BOLT
-
43F3J-61492-00-00 ...SPACER...SPACER
-
44F3J-61348-10-00 ...PLATE...PLATE
-
45F3J-68198-20-00 ...SCREW...SCREW
-
46F3J-60222-00-00 ...SHAFT, 2...SHAFT, 2
-
47F3J-61344-00-00 ...BUSH...BUSH
-
48F3J-613A5-00-00 ...O-RING...O-RING
-
49F3Y-U8285-00-00 PLATEPLATE
-
5090110-06040-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
5190119-08851-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
52F3Y-U142L-00-00 NUT, LOCKNUT, LOCK
-
53F3J-6150E-00-00 TRIM ARM ASSYTRIM ARM ASSY
-
54F3J-6150F-00-00 SHIFT ARM ASSYSHIFT ARM ASSY
-
55F3J-6150A-00-00 ROD ASSYROD ASSY
-
56F3J-6150D-00-00 ROD ASSY 2ROD ASSY 2
-
5790464-32801-00 CLAMPCLAMP
-
58F1W-U828M-00-00 BASE, CLAMPBASE, CLAMP
-
5990267-48802-00 RIVET, BLINDRIVET, BLIND
-
6090464-32801-00 CLAMPCLAMP
