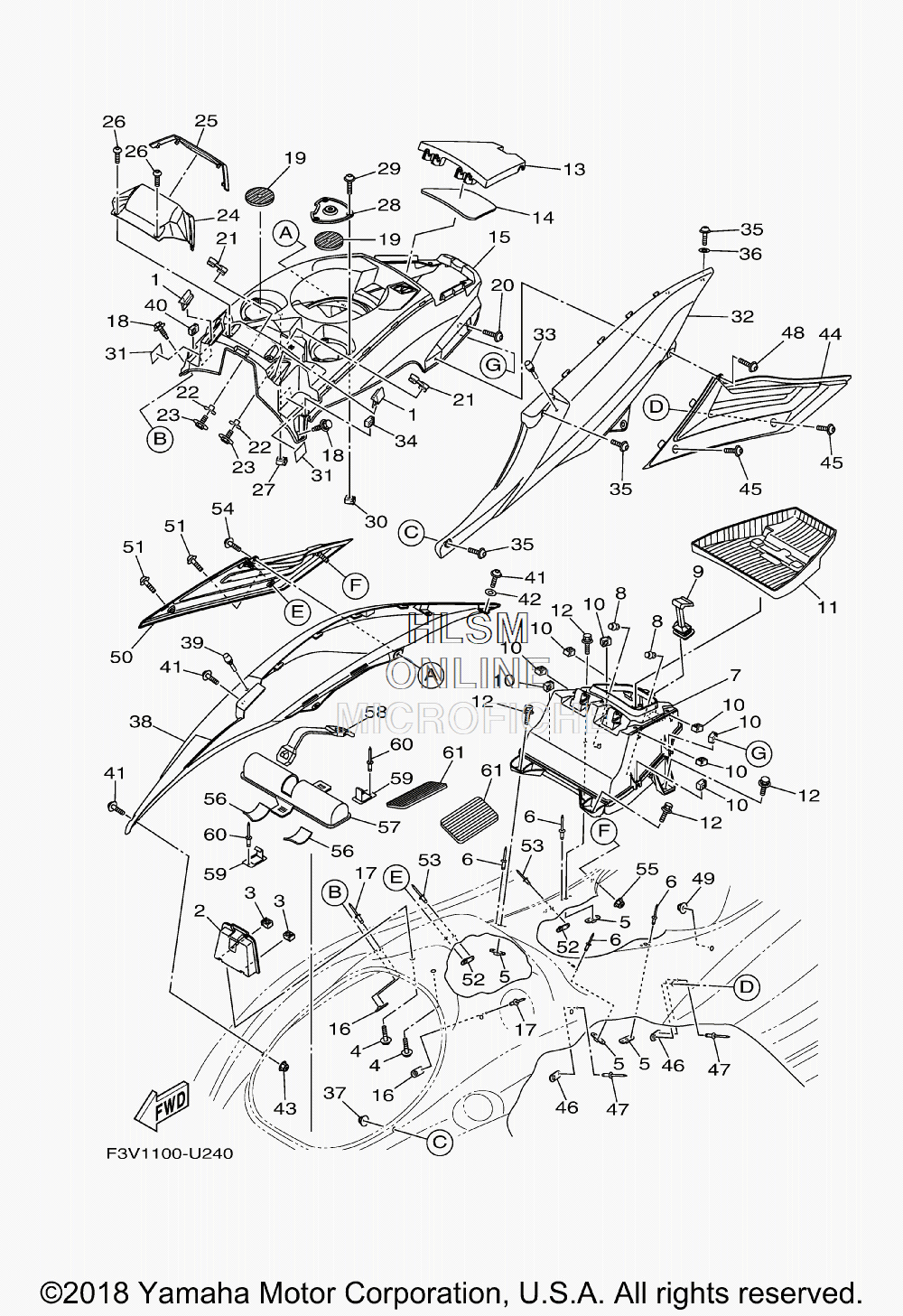

SIDE COVERS для Yamaha FX CRUISER HO - 2019 года выпуска
-
№АртикулНазвание
-
1F1K-U266C-00-00 PACKING 4PACKING 4
-
2F3X-U517F-00-00 HOOK, LID LOCKHOOK, LID LOCK
-
3F3X-U517E-00-00 NUTNUT
-
490119-06880-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
5F2C-U826C-00-00 BRACKETBRACKET
-
690267-489U2-00 RIVET, BLINDRIVET, BLIND
-
7F3X-U516P-00-00 BOX GLOVEBOX GLOVE
-
8F3X-U2723-00-00 SEALSEAL
-
9F3X-U2875-01-00 LOCKLOCK
-
10F3X-U517E-00-00 NUTNUT
-
11F3X-U591L-00-00 INNER, CASEINNER, CASE
-
1290119-08822-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
13F3X-U517H-00-00 LID HATCHLID HATCH
-
14F3X-U519D-01-00 PACKING CASEPACKING CASE
-
15F3X-U5554-00-00 COVER, CENTERCOVER, CENTER
-
16F2X-U5175-00-00 PLATE, FIXPLATE, FIX
-
1790267-489U1-00 RIVET,BLINDRIVET,BLIND
-
1890119-06858-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
19F3X-U3844-00-00 MATMAT
-
20F3X-U7823-11-00 SCREWSCREW
-
21F3X-U1338-00-00 GROMMETGROMMET
-
22F3X-U151R-00-00 COLLARCOLLAR
-
23F3X-U1355-00-00 BOLTBOLT
-
24F3X-U8262-00-00 COVER METERCOVER METER
-
25F3X-U826F-00-00 ORNAMENT, METERORNAMENT, METER
-
26F2S-U13C1-00-00 SCREWSCREW
-
27F3X-U517E-00-00 NUTNUT
-
28F3X-UE175-00-00 FIX, PLATEFIX, PLATE
-
29F3X-U7823-11-00 SCREWSCREW
-
30F3X-U517E-00-00 NUTNUT
-
31F2C-U1743-00-00 PACKINGPACKING
-
32F3X-U377B-00-P0 COVER, SIDE 1 (PURW - PURE WHITE)COVER, SIDE 1 (PURW - PURE WHITE)
-
32F3X-U377B-00-P1 COVER, SIDE 1 (DNMC - GRAY METALLIC)COVER, SIDE 1 (DNMC - GRAY METALLIC)
-
33F1W-U3768-01-00 CUSHION, RUBBERCUSHION, RUBBER
-
34F3X-U517E-00-00 NUTNUT
-
35F3X-U7823-11-00 SCREWSCREW
-
3690201-06805-00 WASHER, PLAINWASHER, PLAIN
-
37F2N-U142L-00-00 NUT, LOCKNUT, LOCK
-
38F3X-U377C-00-P0 COVER, SIDE 2 (PURW - PURE WHITE)COVER, SIDE 2 (PURW - PURE WHITE)
-
38F3X-U377C-00-P1 COVER, SIDE 2 (DNMC - GRAY METALLIC)COVER, SIDE 2 (DNMC - GRAY METALLIC)
-
39F1W-U3768-01-00 CUSHION, RUBBERCUSHION, RUBBER
-
40F3X-U517E-00-00 NUTNUT
-
41F3X-U7823-11-00 SCREWSCREW
-
4290201-06805-00 WASHER, PLAINWASHER, PLAIN
-
43F2N-U142L-00-00 NUT, LOCKNUT, LOCK
-
44F3X-U370J-20-00 SIDE ORNAMENT ASSY 1 (PURW - PURE WHITE)SIDE ORNAMENT ASSY 1 (PURW - PURE WHITE)
-
44F3X-U370J-10-00 SIDE ORNAMENT ASSY 1 (DNMC - GRAY METALLIC)SIDE ORNAMENT ASSY 1 (DNMC - GRAY METALLIC)
-
45F3X-U7823-01-00 SCREWSCREW
-
46F2X-U5175-00-00 PLATE, FIXPLATE, FIX
-
4790267-48802-00 RIVET, BLINDRIVET, BLIND
-
48F3X-U7823-11-00 SCREWSCREW
-
49F2N-U142L-00-00 NUT, LOCKNUT, LOCK
-
50F3X-U370K-20-00 SIDE ORNAMENT ASSY 2 (PURW - PURE WHITE)SIDE ORNAMENT ASSY 2 (PURW - PURE WHITE)
-
50F3X-U370K-10-00 SIDE ORNAMENT ASSY 2 (DNMC - GRAY METALLIC)SIDE ORNAMENT ASSY 2 (DNMC - GRAY METALLIC)
-
51F3X-U7823-01-00 SCREWSCREW
-
52F2X-U5175-00-00 PLATE, FIXPLATE, FIX
-
5390267-48802-00 RIVET, BLINDRIVET, BLIND
-
54F3X-U7823-11-00 SCREWSCREW
-
55F2N-U142L-00-00 NUT, LOCKNUT, LOCK
-
56F1K-U759C-00-00 MAT 2MAT 2
-
57F1K-U5983-01-00 BOX, FIRE EXTINGUISHERBOX, FIRE EXTINGUISHER
-
58F2P-U828K-00-00 BAND 1BAND 1
-
59F1K-U5772-04-00 HOOK AHOOK A
-
6090267-489U1-00 RIVET,BLINDRIVET,BLIND
-
61F1S-U8221-00-00 PAD, BATTERYPAD, BATTERY
