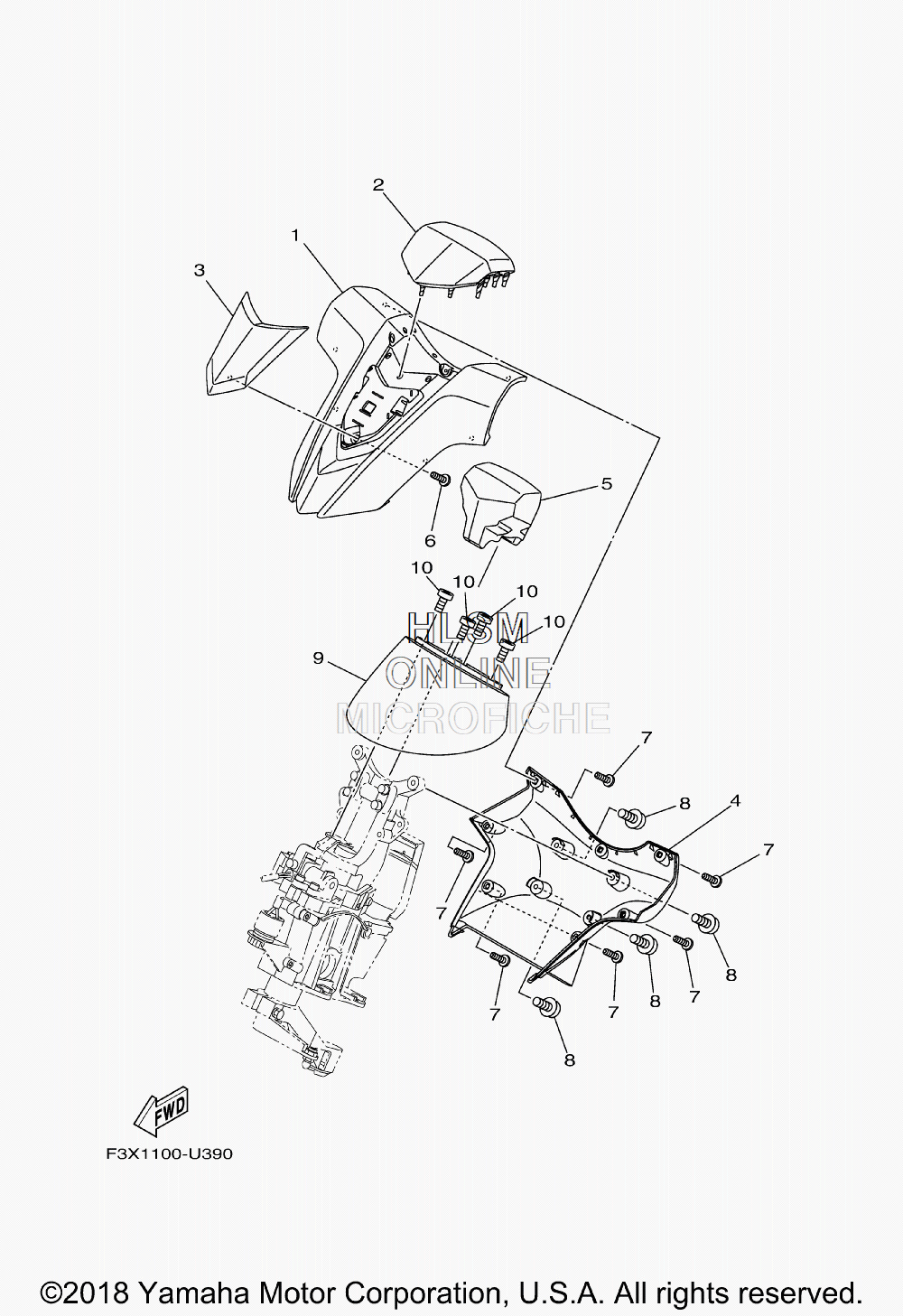

STEERING - PADDING для Yamaha FX CRUISER HO - 2019 года выпуска
-
№АртикулНазвание
-
1F3X-U143D-00-00 PAD, STEERING 1PAD, STEERING 1
-
2F3X-U142D-00-00 COVER, PADCOVER, PAD
-
3F3X-U142M-10-00 BASE, PADBASE, PAD
-
4F3X-U143E-00-00 PAD, STEERING 2PAD, STEERING 2
-
5F3X-U142E-00-00 CUSHION, PAD 1CUSHION, PAD 1
-
6F2S-U13C1-00-00 SCREWSCREW
-
7F2S-U13C1-00-00 SCREWSCREW
-
8F3Y-U2624-00-00 BOLTBOLT
-
9F2S-U143L-01-00 PAD, STEERING 3PAD, STEERING 3
-
1090154-06030-00 SCREW, BINDINGSCREW, BINDING
