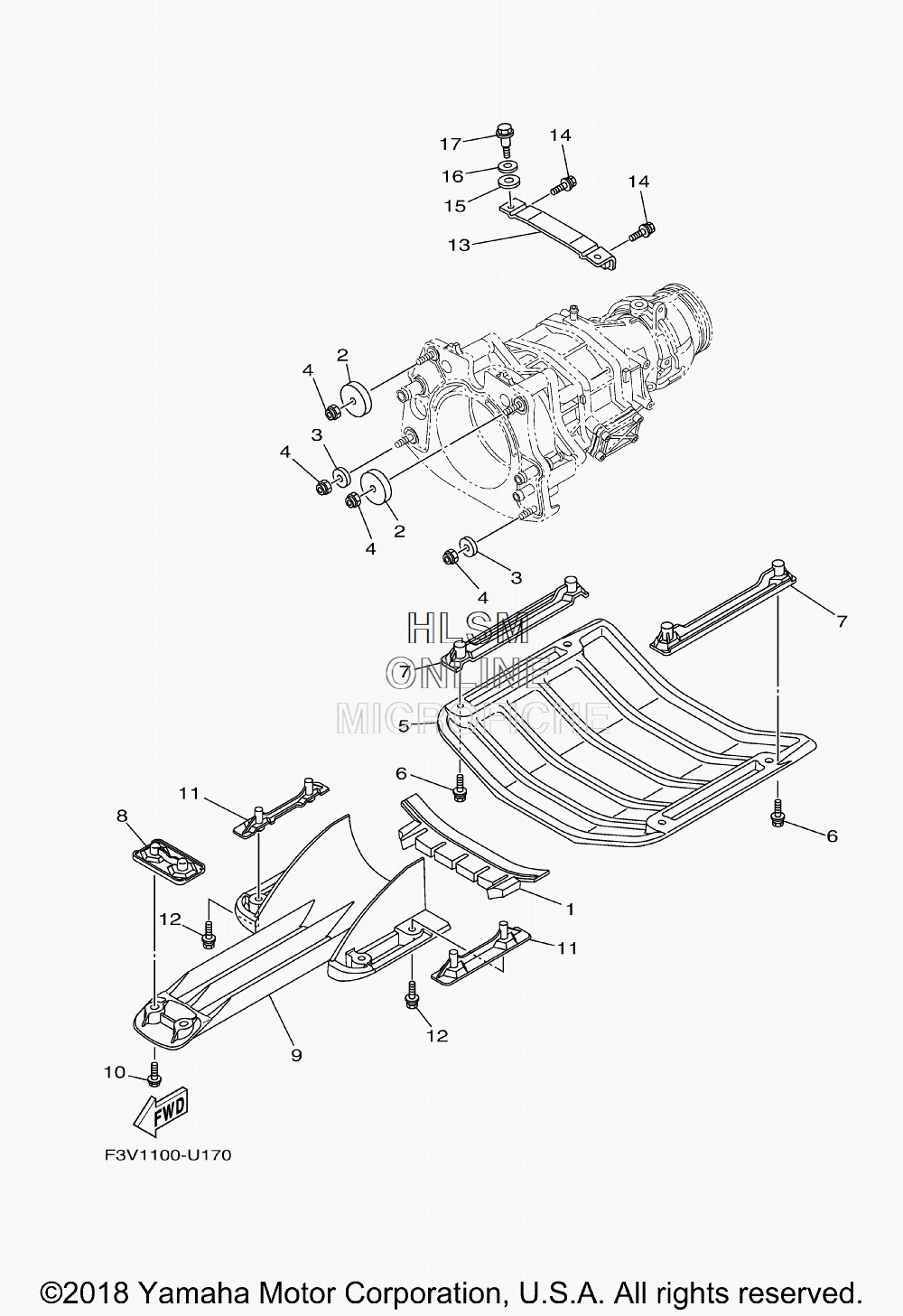

INTAKE AND RIDE PLATE ASSY для Yamaha FX CRUISER HO - 2019 года выпуска
-
№АртикулНазвание
-
1F2S-U72C0-01-00 SPACERSPACER
-
2F1S-U725E-01-00 WASHERWASHER
-
390201-10801-00 WASHER, PLATEWASHER, PLATE
-
49572R-10300-00 NUT, NYLONNUT, NYLON
-
5F3X-U273B-01-00 PLATE 2PLATE 2
-
690119-08823-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
7F1B-U8572-01-00 BRACKET 2BRACKET 2
-
8F2S-U8577-00-00 BRACKET, 3BRACKET, 3
-
96CS-R1333-00-00 SCREEN, INTAKESCREEN, INTAKE
-
1090119-08823-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
11F1G-U8571-02-00 BRACKET 1BRACKET 1
-
1290119-08823-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
13F2C-U7557-01-00 BRACKETBRACKET
-
1490119-089U7-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
1590430-12002-00 GASKETGASKET
-
1692990-12200-00 WASHER, PLAINWASHER, PLAIN
-
1790109-08041-00 BOLTBOLT
