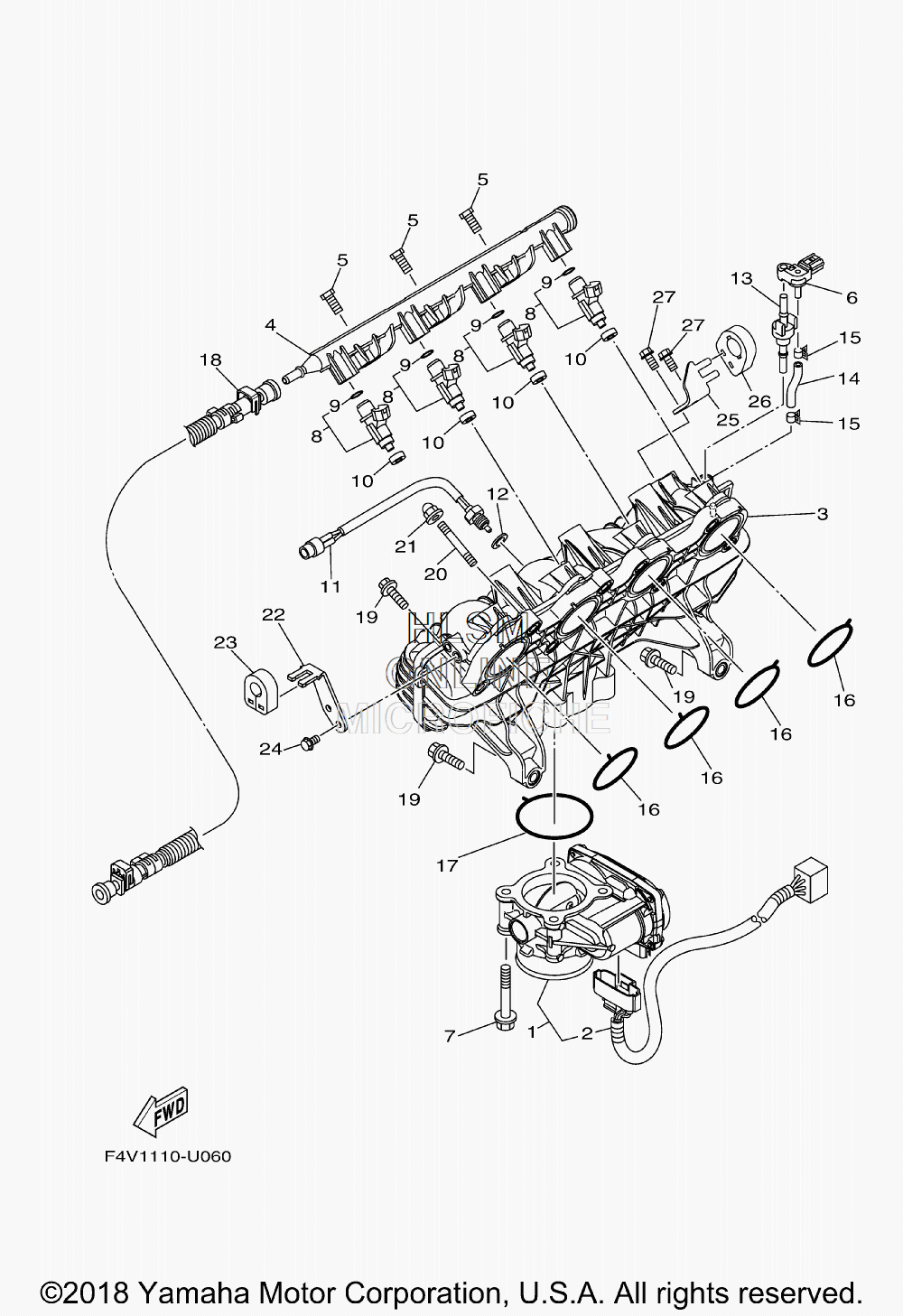

AIR INDUCTION SYSTEM для Yamaha GP1800R - 2019 года выпуска
-
№АртикулНазвание
-
16ET-13750-00-00 THROTTLE BODY ASSYTHROTTLE BODY ASSY
-
26S5-82509-00-00 ...WIRE, SUB LEAD...WIRE, SUB LEAD
-
36ET-13641-10-00 MANIFOLD, INTAKE 1MANIFOLD, INTAKE 1
-
46CS-12880-00-00 DELIVERY PIPEDELIVERY PIPE
-
56CS-14446-00-00 BOLTBOLT
-
66BH-82380-00-00 SENSOR, PRESSURESENSOR, PRESSURE
-
790105-08243-00 BOLT, FLANGEBOLT, FLANGE
-
86ET-13761-00-00 INJECTORINJECTOR
-
968V-1416A-00-00 ...O-RING...O-RING
-
108FP-13556-10-00 GASKET, MANIFOLDGASKET, MANIFOLD
-
116S5-85886-00-00 SENSOR, AIR TEMPERATURESENSOR, AIR TEMPERATURE
-
126S5-14285-00-00 WASHERWASHER
-
136BH-14445-00-00 GROMMETGROMMET
-
146S5-13532-00-00 HOSE, VACUUM SENSING 3HOSE, VACUUM SENSING 3
-
156S5-14159-00-00 CLIPCLIP
-
166ET-14156-00-00 GASKET, INSULATINGGASKET, INSULATING
-
176EY-14156-00-00 GASKET, INSULATINGGASKET, INSULATING
-
186CN-2450B-10-00 FUEL HOSE ASSYFUEL HOSE ASSY
-
1997513-08535-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
2090116-08032-00 BOLT, STUDBOLT, STUD
-
2190176-08080-00 NUT, CROWNNUT, CROWN
-
226ET-14572-00-00 PLATE, STAYPLATE, STAY
-
236ET-14445-00-00 GROMMETGROMMET
-
2495023-06012-00 BOLTBOLT
-
256CS-14572-00-00 PLATE, STAYPLATE, STAY
-
266CS-14445-00-00 GROMMETGROMMET
-
2795023-06012-00 BOLTBOLT
