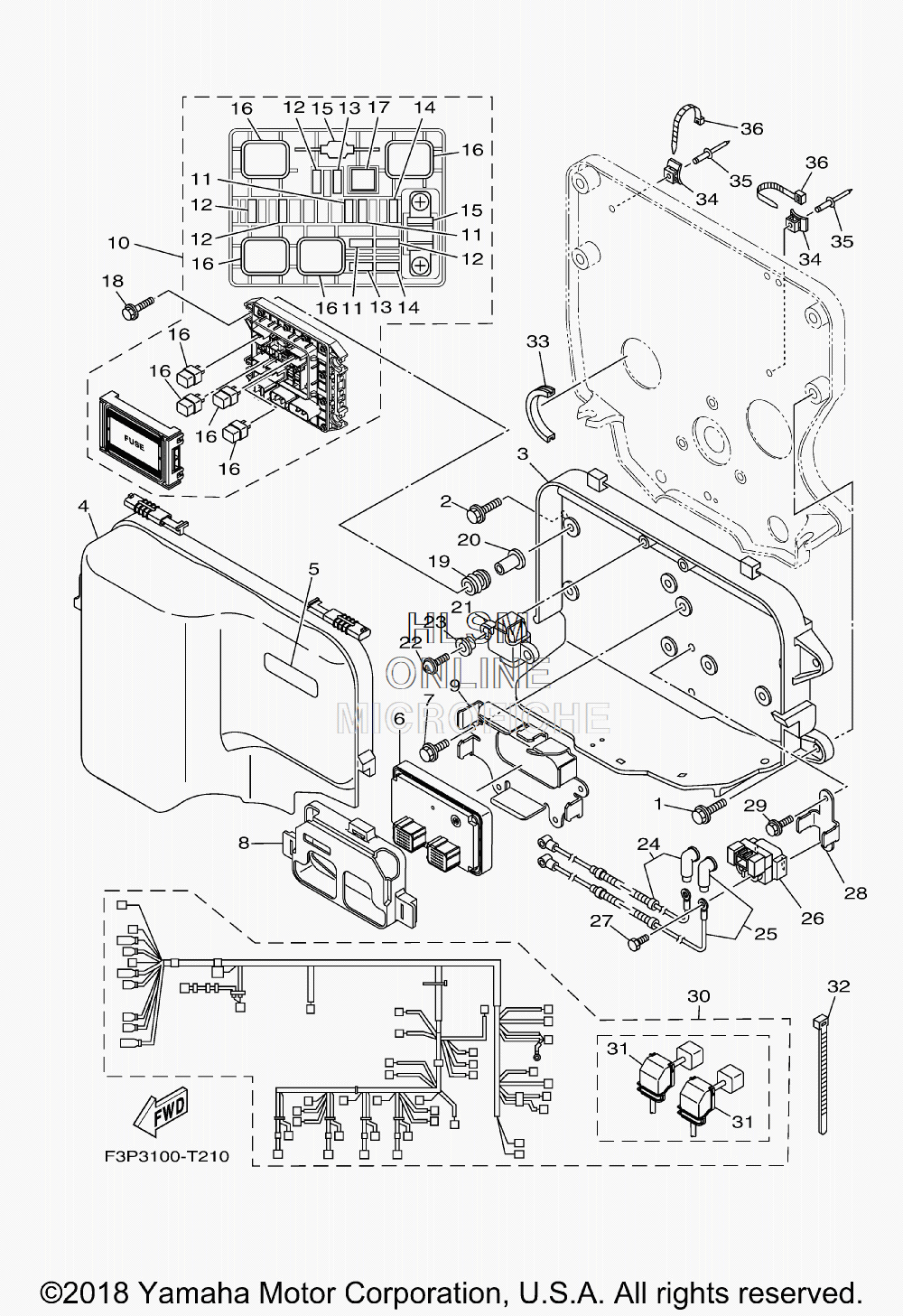

ELECTRICAL - FUSE BOX для Yamaha GP1800R - 2019 года выпуска
-
№АртикулНазвание
-
190119-089UT-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
290119-089UT-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
36CS-81845-10-00 PLATEPLATE
-
46S5-81942-20-00 COVERCOVER
-
560E-83627-00-00 LABEL, CAUTION 7LABEL, CAUTION 7
-
66DH-8591A-20-00 ENGINE CONTROL UNIT ASSYENGINE CONTROL UNIT ASSY
-
795814-06012-00 BOLT, FLANGEBOLT, FLANGE
-
86EY-8591S-00-00 GROMMET, ECUGROMMET, ECU
-
96ET-81948-00-00 BRACKETBRACKET
-
106EX-82170-01-00 FUSE BOX ASSYFUSE BOX ASSY
-
1167F-82151-30-00 ...FUSE (3A)...FUSE (3A)
-
1267F-82151-40-00 ...FUSE (10A)...FUSE (10A)
-
1367F-82151-00-00 ...FUSE (20A)...FUSE (20A)
-
1467F-82151-10-00 ...FUSE (30A)...FUSE (30A)
-
156EX-82151-00-00 ...FUSE (50A)...FUSE (50A)
-
166EX-8195A-00-00 ...RELAY ASSY...RELAY ASSY
-
176EX-2812A-00-00 ...PULLER, FUSE...PULLER, FUSE
-
1890119-06M88-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
196A0-82317-00-00 DAMPER, IGNITION COILDAMPER, IGNITION COIL
-
2090387-06119-00 COLLARCOLLAR
-
216ET-82576-00-00 SENSOR, LEAN ANGLESENSOR, LEAN ANGLE
-
2297780-60025-00 SCREW, TAPPINGSCREW, TAPPING
-
2390387-06M05-00 COLLARCOLLAR
-
246CS-82115-00-00 WIRE, PLUS LEADWIRE, PLUS LEAD
-
256CS-82117-00-00 WIRE, LEADWIRE, LEAD
-
261B7-81940-00-00 STARTER RELAY ASSY (2768102-A)STARTER RELAY ASSY (2768102-A)
-
2797595-06612-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
286CS-81953-00-00 STAY, RELAYSTAY, RELAY
-
2995814-06012-00 BOLT, FLANGEBOLT, FLANGE
-
306DH-8259L-10-00 WIRE HARNESS ASSY 1WIRE HARNESS ASSY 1
-
316EM-82599-00-00 ...COVER, CONNECTOR...COVER, CONNECTOR
-
3290465-14M66-00 CLAMPCLAMP
-
33F1S-U828H-01-00 TRIM, 1TRIM, 1
-
34F1W-U828M-00-00 BASE, CLAMPBASE, CLAMP
-
3590267-48802-00 RIVET, BLINDRIVET, BLIND
-
3690464-32801-00 CLAMPCLAMP
