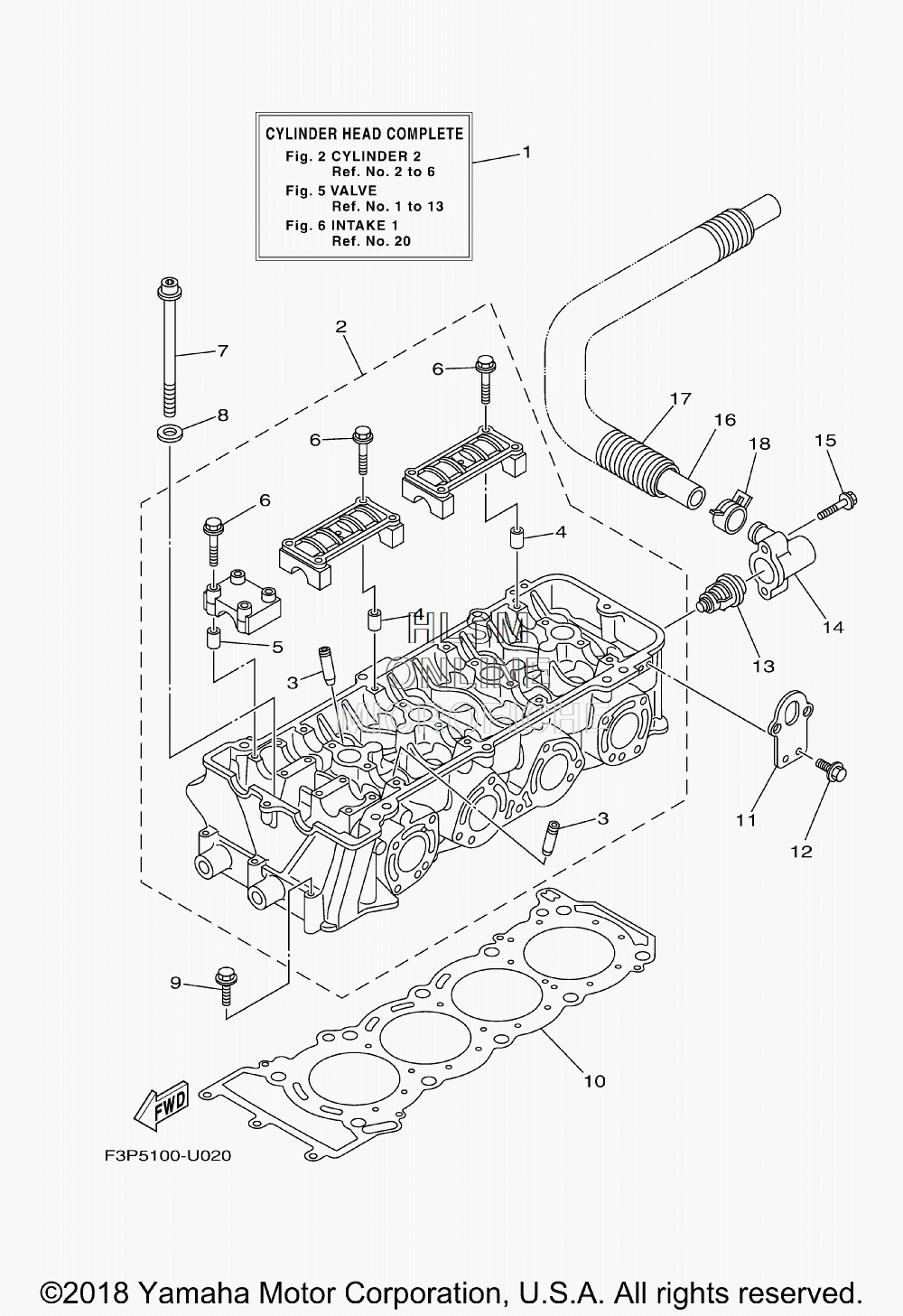

CYLINDER HEAD ASSY. для Yamaha GP1800R - 2019 года выпуска
-
№АртикулНазвание
-
16ET-W009A-01-94 CYLINDER HEAD COMPLETECYLINDER HEAD COMPLETE
-
26S5-11102-11-00 CYLINDER HEAD ASSYCYLINDER HEAD ASSY
-
36S5-11133-10-00 ...GUIDE, VALVE 1...GUIDE, VALVE 1
-
491809-16002-00 ...PIN, DOWEL...PIN, DOWEL
-
591809-16002-00 ...PIN, DOWEL...PIN, DOWEL
-
690105-07009-00 ...BOLT, FLANGE...BOLT, FLANGE
-
76S5-12228-01-00 BOLTBOLT
-
890201-12039-00 WASHER, PLATEWASHER, PLATE
-
997513-06555-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
106BH-11181-00-00 GASKET, CYLINDER HEAD 1GASKET, CYLINDER HEAD 1
-
116BH-1111E-00-00 HANGER, ENGINE 2HANGER, ENGINE 2
-
1290119-06078-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
136D3-12411-00-00 THERMOSTATTHERMOSTAT
-
146BH-12413-00-00 COVER, THERMOSTATCOVER, THERMOSTAT
-
1590105-06035-00 BOLT, FLANGEBOLT, FLANGE
-
166S5-12578-00-00 HOSE 3HOSE 3
-
1790447-28008-00 TUBE (L850)TUBE (L850)
-
1890467-240A0-00 CLIPCLIP
