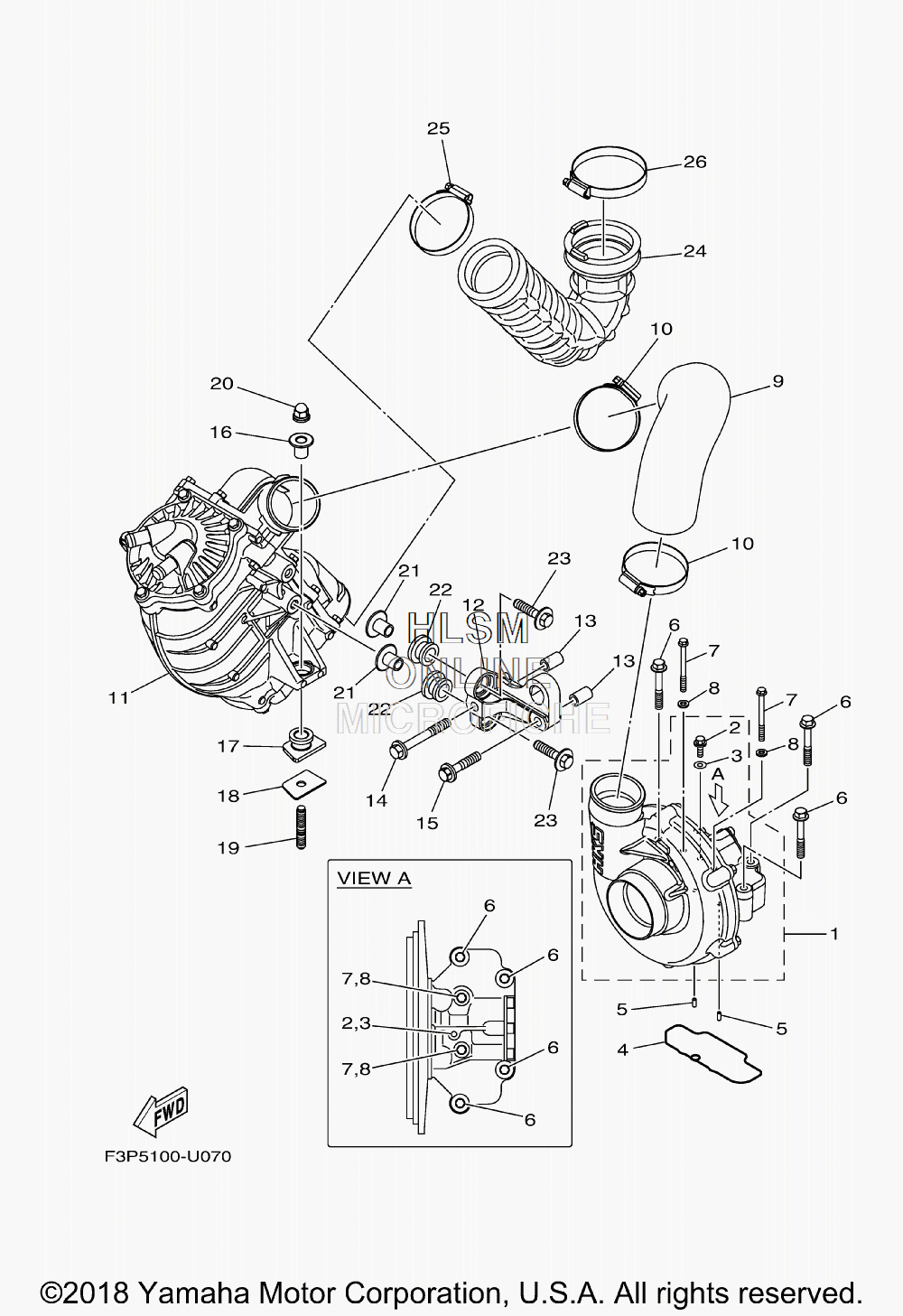

SUPER CHARGER ASSY для Yamaha GP1800R - 2019 года выпуска
-
№АртикулНазвание
-
16HL-141A0-00-00 SUPER CHARGER ASSYSUPER CHARGER ASSY
-
290105-05020-00 ...BOLT, FLANGE...BOLT, FLANGE
-
36S5-14199-00-00 ...GASKET...GASKET
-
46S5-1416A-00-00 O-RINGO-RING
-
593604-10M03-00 PIN, DOWELPIN, DOWEL
-
695814-08055-00 BOLT, FLANGEBOLT, FLANGE
-
795024-06065-00 BOLT, FLANGE (SMALL HEAD)BOLT, FLANGE (SMALL HEAD)
-
890201-06028-00 WASHER, PLATEWASHER, PLATE
-
96HL-14349-00-00 PIPEPIPE
-
1090450-75003-00 HOSE CLAMP ASSYHOSE CLAMP ASSY
-
116HL-13670-00-00 AIR COOLER ASSYAIR COOLER ASSY
-
126S5-13691-12-00 BRACKET, AIR COOLERBRACKET, AIR COOLER
-
1399590-14016-00 PIN, DOWELPIN, DOWEL
-
1490119-10047-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
1590119-10046-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
1690387-11007-00 COLLARCOLLAR
-
176S5-14435-00-00 GROMMETGROMMET
-
186S5-14243-01-00 PLATEPLATE
-
1990116-10044-00 BOLT, STUDBOLT, STUD
-
2090176-10001-00 NUT, CROWNNUT, CROWN
-
2190387-11008-00 COLLARCOLLAR
-
2290480-21M63-00 GROMMETGROMMET
-
2390119-10011-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
246HL-13651-00-00 PIPE, BOOSTPIPE, BOOST
-
2590450-75003-00 HOSE CLAMP ASSYHOSE CLAMP ASSY
-
2690450-90002-00 HOSE CLAMP ASSYHOSE CLAMP ASSY
