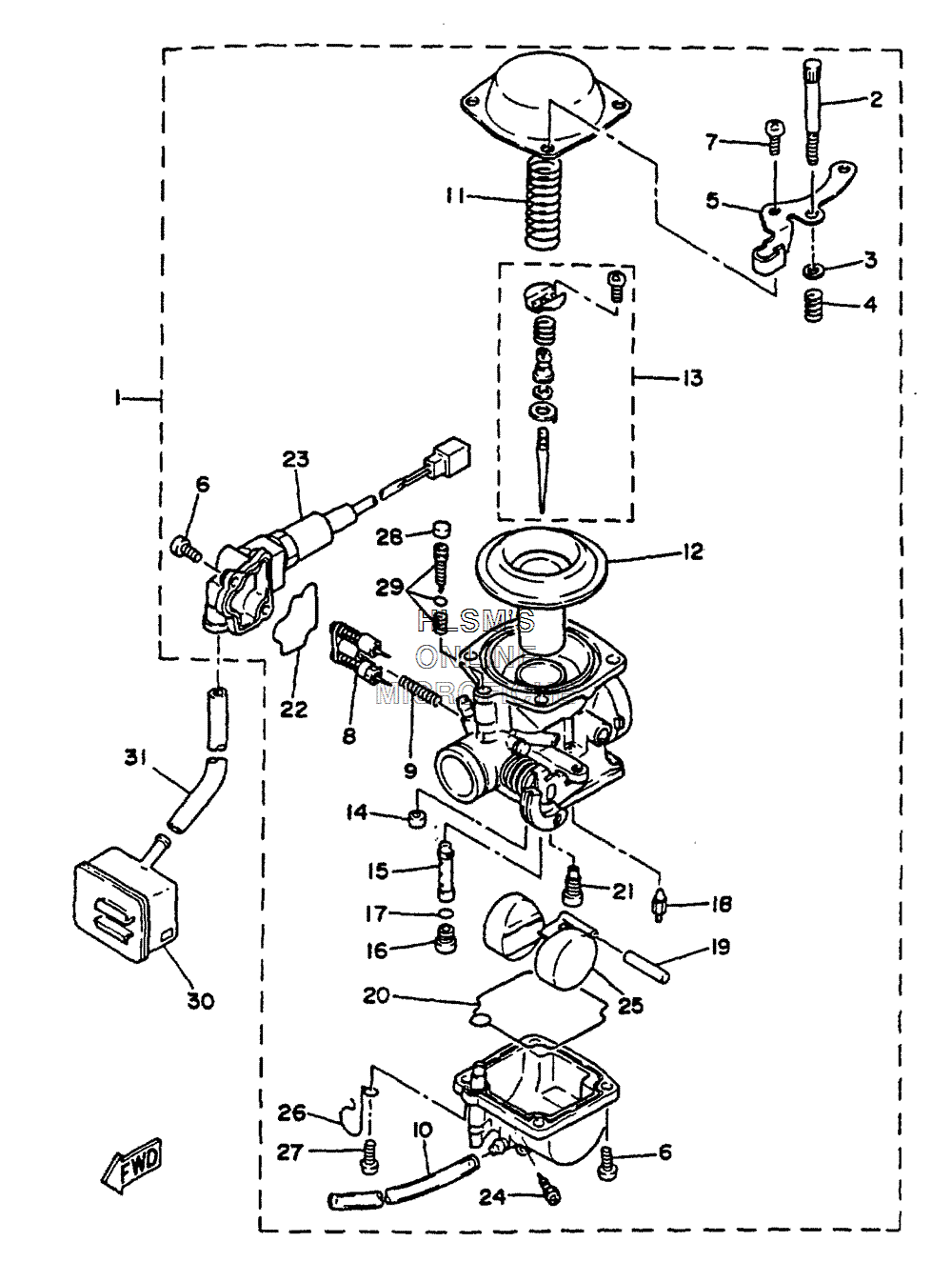

CARBURETOR ASSY. для Yamaha RIVA 125 - 2000 года выпуска
-
№АртикулНазвание
-
150N-14301-02-00 CARBURETOR ASSY 1CARBURETOR ASSY 1
-
250M-14321-00-00 ...SCREW, THROTTLE...SCREW, THROTTLE
-
350M-14952-00-00 ...WASHER...WASHER
-
430X-14333-00-00 ...SPRING, THROTTLE STOP...SPRING, THROTTLE STOP
-
550M-14926-00-00 ...BRACKET, THROTTLE 1...BRACKET, THROTTLE 1
-
698517-04012-00 ...SCREW, PAN HEAD...SCREW, PAN HEAD
-
798580-04008-00 ...SCREW, PAN HEAD...SCREW, PAN HEAD
-
850M-14371-00-00 ...PLUNGER, STARTER...PLUNGER, STARTER
-
950M-14335-00-00 ...SPRING, PLUNGER...SPRING, PLUNGER
-
1050M-14396-00-00 ...PIPE...PIPE
-
1130X-14286-00-00 ...SPRING...SPRING
-
122YM-14340-00-00 ...VALVE ASSY...VALVE ASSY
-
1350M-1490J-01-00 ...NEEDLE SET...NEEDLE SET
-
1450M-14355-00-00 ...PLUG...PLUG
-
152YM-14341-00-00 ...NOZZLE, MAIN...NOZZLE, MAIN
-
1650M-14343-54-00 ...JET, MAIN...JET, MAIN
-
1750M-14397-00-00 ...O-RING...O-RING
-
1836F-14392-00-00 ...VALVE, NEEDLE...VALVE, NEEDLE
-
196E5-14386-01-00 ...PIN, FLOAT...PIN, FLOAT
-
2050M-14384-00-00 ...GASKET, FLOAT CHAMBER...GASKET, FLOAT CHAMBER
-
2150M-14342-16-00 ...JET, PILOT (32)...JET, PILOT (32)
-
2250M-14398-00-00 ...GASKET...GASKET
-
2350V-14370-01-00 ...PLUNGER STARTER ASSY...PLUNGER STARTER ASSY
-
2414T-14104-00-00 ...SCREW, AIR ADJUSTING...SCREW, AIR ADJUSTING
-
255Y1-14385-00-00 ...FLOAT...FLOAT
-
2650M-14261-00-00 ...HOLDER...HOLDER
-
2798503-04014-00 ...SCREW, PAN HEAD...SCREW, PAN HEAD
-
2850M-14355-00-00 ...PLUG...PLUG
-
291XX-14105-00-00 ...PILOT SCREW SET...PILOT SCREW SET
-
3050M-14420-00-00 ...AIR CLEANER ASSY...AIR CLEANER ASSY
-
3190445-09059-00 HOSEHOSE
