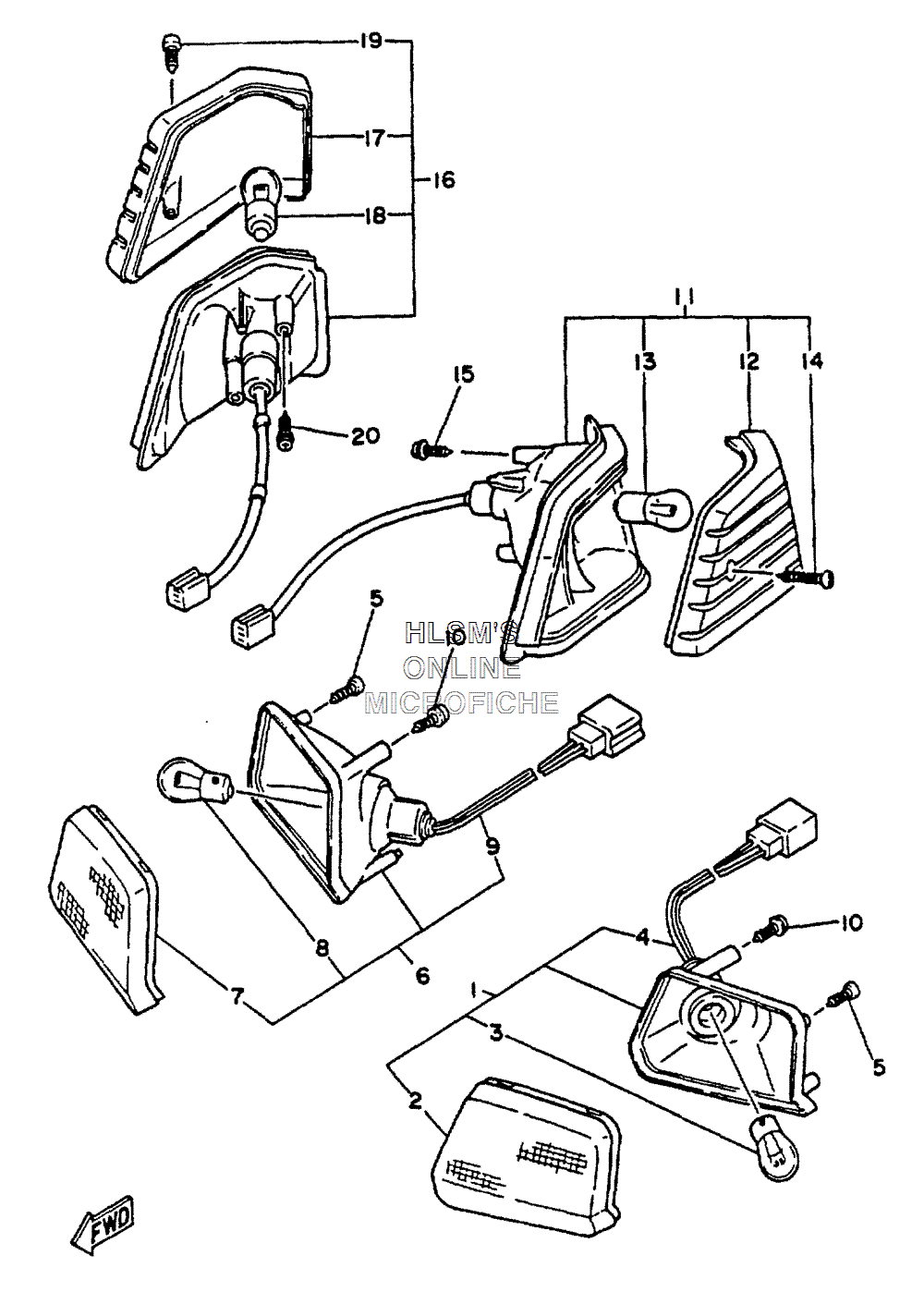

FLASHER LIGHT для Yamaha RIVA 125 - 2000 года выпуска
-
№АртикулНазвание
-
13EK-83310-00-00 FRONT FLASHER LIGHT ASSY 1FRONT FLASHER LIGHT ASSY 1
-
23EK-83312-00-00 ...LENS, FLASHER...LENS, FLASHER
-
3256-84714-61-00 ...BULB (12V-27/8W)...BULB (12V-27/8W)
-
43EK-8331E-00-00 ...CORD ASSY...CORD ASSY
-
590167-05015-00 SCREW, TAPPINGSCREW, TAPPING
-
63EK-83320-00-00 FRONT FLASHER LIGHT ASSY 2FRONT FLASHER LIGHT ASSY 2
-
73EK-83322-00-00 ...LENS, FLASHER 2...LENS, FLASHER 2
-
8256-84714-61-00 ...BULB (12V-27/8W)...BULB (12V-27/8W)
-
93EK-8332E-00-00 ...CORD ASSY...CORD ASSY
-
1097780-50120-00 SCREW, TAPPINGSCREW, TAPPING
-
1150M-83330-00-00 RR. FLASHER LIGHT ASSY (L.H)RR. FLASHER LIGHT ASSY (L.H)
-
1225G-83332-00-00 ...LENS, FLASHER (L.H)...LENS, FLASHER (L.H)
-
13256-83311-70-XX ...BULB (12V-27W)...BULB (12V-27W)
-
1497780-40130-00 ...SCREW, TAPPING...SCREW, TAPPING
-
1597780-60116-00 SCREW, TAPPINGSCREW, TAPPING
-
1650M-83340-00-00 RR. FLASHER LIGHT ASSY (R.H)RR. FLASHER LIGHT ASSY (R.H)
-
1725G-83342-00-00 ...LENS, FLASHER (R.H.)...LENS, FLASHER (R.H.)
-
18256-83311-70-XX ...BULB (12V-27W)...BULB (12V-27W)
-
1997780-40130-00 ...SCREW, TAPPING...SCREW, TAPPING
-
2097780-60116-00 SCREW, TAPPINGSCREW, TAPPING
Все узлы модели:
- AIR CLEANER ASSY. W/ INTAKE
- AIR SHROUD W/ FAN
- CARBURETOR ASSY.
- CLUTCH ASSY.
- COWLING W/ LEG SHIELD
- CRANKCASE ASSY.
- CRANKSHAFT W/ PISTON ASSY.
- CYLINDER W/ HEAD ASSY.
- ELECTRICAL
- ELECTRICAL 2
- EXHAUST ASSY.
- FENDER - FRONT / REAR
- • FLASHER LIGHT
- FRAME
- FUEL TANK ASSY.
- GENERATOR ASSY.
- HANDLEBAR - COVER W/ MIRRORS
- HANDLEBAR W/ CABLES
- HANDLEBAR W/ SWITCHES - LEVERS
- HEADLIGHT ASSY.
- INSTRUMENT PANEL
- MODEL INFO - MANUALS
- OIL PUMP
- SEAT ASSY.
- SIDE COVER
- STAND W/ FOOTREST
- STARTER CLUTCH ASSY.
- STARTING MOTOR ASSY.
- SUSPENSION - FRONT FORK
- SUSPENSION - REAR ARM W/ SHOCK
- TAILLIGHT ASSY.
- TRANSMISSION
- VALVE ASSY. W/ CAM CHAIN ASSY.
- WHEEL - FRONT
- WHEEL - REAR
