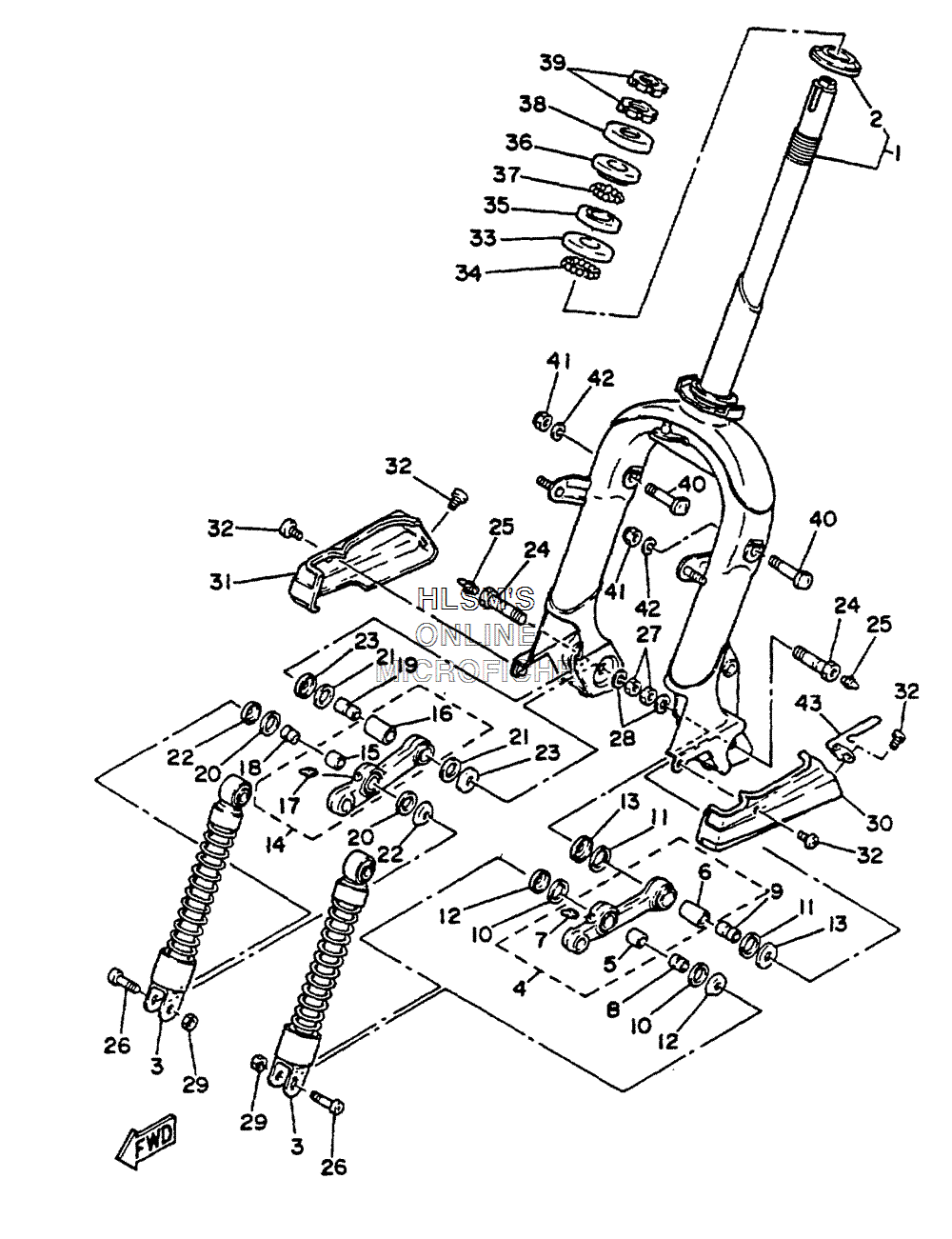

SUSPENSION - FRONT FORK для Yamaha RIVA 125 - 2000 года выпуска
-
№АртикулНазвание
-
150W-23310-20-00 FORK COVER COMP.FORK COVER COMP.
-
2156-23411-00-00 ...RACE, BALL 1...RACE, BALL 1
-
350M-23350-01-00 SHOCK ABSORBER ASSYSHOCK ABSORBER ASSY
-
450W-23361-00-00 ARM 1ARM 1
-
5296-23362-09-00 ...BUSH 1...BUSH 1
-
6296-23372-09-00 ...BUSH 2...BUSH 2
-
793700-04002-00 ...NIPPLE, GREASE...NIPPLE, GREASE
-
8296-23363-01-00 COLLAR 1COLLAR 1
-
9296-23364-02-00 COLLAR 2COLLAR 2
-
10296-23381-01-00 SEAL, DUST 1SEAL, DUST 1
-
11296-23382-01-00 SEAL, DUST 2SEAL, DUST 2
-
12116-23383-00-00 COVER, DUST SEAL 1COVER, DUST SEAL 1
-
13116-23384-00-00 COVER, DUST SEAL 2COVER, DUST SEAL 2
-
1419E-23371-00-00 ARM 2ARM 2
-
15296-23362-09-00 ...BUSH 1...BUSH 1
-
16296-23372-09-00 ...BUSH 2...BUSH 2
-
1793700-04002-00 ...NIPPLE, GREASE...NIPPLE, GREASE
-
18296-23363-01-00 COLLAR 1COLLAR 1
-
19296-23363-02-00 COLLAR 2COLLAR 2
-
20296-23381-01-00 SEAL, DUST 1SEAL, DUST 1
-
21296-23382-01-00 SEAL, DUST 2SEAL, DUST 2
-
22116-23383-00-00 COVER, DUST SEAL 1COVER, DUST SEAL 1
-
23116-23384-00-00 COVER, DUST SEAL 2COVER, DUST SEAL 2
-
2490401-10035-00 BOLT, UNIONBOLT, UNION
-
2593700-06M03-00 NIPPLE, GREASENIPPLE, GREASE
-
2690155-08002-00 SCREW, FLAT FILLISTERSCREW, FLAT FILLISTER
-
2795303-10700-00 NUTNUT
-
2892901-10100-00 WASHER, SPRINGWASHER, SPRING
-
2995303-08700-00 NUTNUT
-
3050W-23338-00-00 CAP, SIDE 1CAP, SIDE 1
-
3150W-23339-00-00 CAP, SIDE 2CAP, SIDE 2
-
3298903-06012-00 SCREW, BLINDSCREW, BLIND
-
33156-23412-00-00 RACE, BALL 2RACE, BALL 2
-
3493501-04011-00 BALLBALL
-
3522F-23412-01-00 RACE, BALL 2RACE, BALL 2
-
3622F-23411-01-00 RACE, BALL 1RACE, BALL 1
-
3793503-16010-00 BALL 3BALL 3
-
38122-23416-00-00 COVER, BALL RACE 2COVER, BALL RACE 2
-
3990179-25033-00 NUTNUT
-
4090109-08607-00 BOLTBOLT
-
4195303-08700-00 NUTNUT
-
4292990-08100-00 WASHER, SPRINGWASHER, SPRING
-
4350W-23317-00-00 HOLDER, CABLEHOLDER, CABLE
