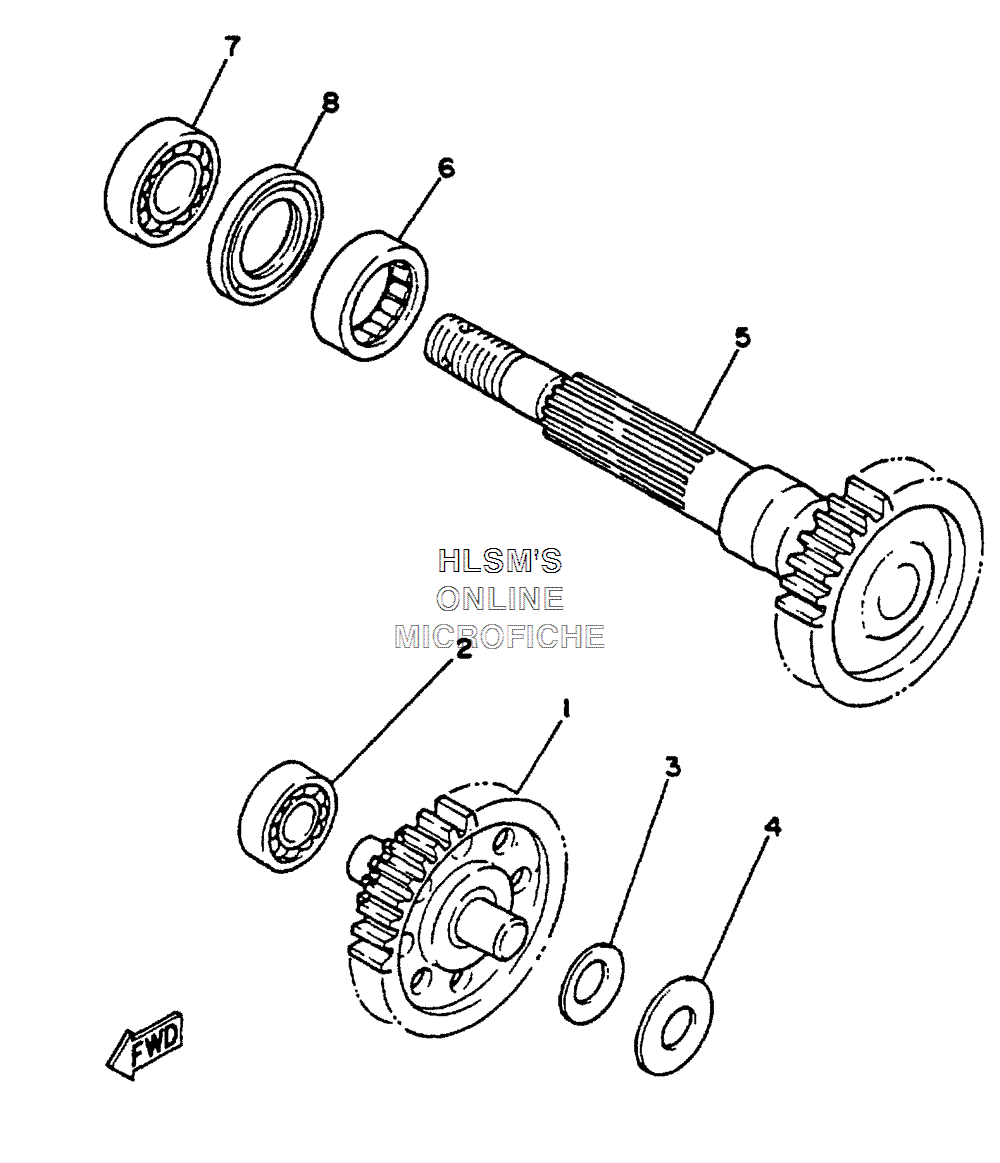

TRANSMISSION для Yamaha RIVA 125 - 2000 года выпуска
-
№АртикулНазвание
-
150M-17410-00-00 MAIN AXLE COMP. (14T-43T)MAIN AXLE COMP. (14T-43T)
-
293306-30101-00 BEARINGBEARING
-
390208-15037-00 WASHER, CONICAL SPRINGWASHER, CONICAL SPRING
-
490201-153H0-00 WASHER, PLATEWASHER, PLATE
-
550M-17211-00-00 GEAR, 1ST WHEEL (36T)GEAR, 1ST WHEEL (36T)
-
693315-42536-00 BEARING, CYL.#15BEARING, CYL.#15
-
793306-20460-00 BEARINGBEARING
-
893102-25334-00 OIL SEAL, SD-TYPEOIL SEAL, SD-TYPE
Все узлы модели:
- AIR CLEANER ASSY. W/ INTAKE
- AIR SHROUD W/ FAN
- CARBURETOR ASSY.
- CLUTCH ASSY.
- COWLING W/ LEG SHIELD
- CRANKCASE ASSY.
- CRANKSHAFT W/ PISTON ASSY.
- CYLINDER W/ HEAD ASSY.
- ELECTRICAL
- ELECTRICAL 2
- EXHAUST ASSY.
- FENDER - FRONT / REAR
- FLASHER LIGHT
- FRAME
- FUEL TANK ASSY.
- GENERATOR ASSY.
- HANDLEBAR - COVER W/ MIRRORS
- HANDLEBAR W/ CABLES
- HANDLEBAR W/ SWITCHES - LEVERS
- HEADLIGHT ASSY.
- INSTRUMENT PANEL
- MODEL INFO - MANUALS
- OIL PUMP
- SEAT ASSY.
- SIDE COVER
- STAND W/ FOOTREST
- STARTER CLUTCH ASSY.
- STARTING MOTOR ASSY.
- SUSPENSION - FRONT FORK
- SUSPENSION - REAR ARM W/ SHOCK
- TAILLIGHT ASSY.
- • TRANSMISSION
- VALVE ASSY. W/ CAM CHAIN ASSY.
- WHEEL - FRONT
- WHEEL - REAR
