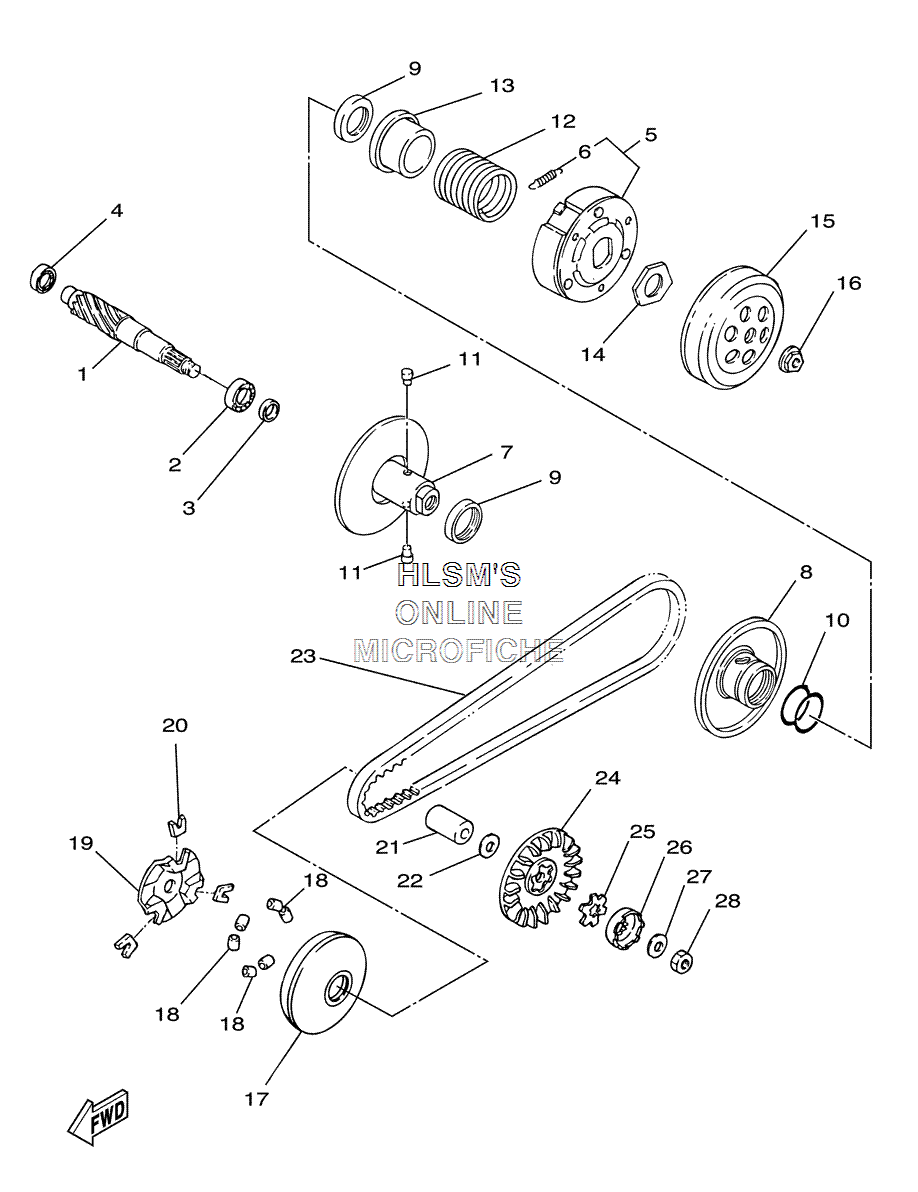

CLUTCH ASSY. для Yamaha ZUMA - 2004 года выпуска
-
№АртикулНазвание
-
14WX-E6111-00-00 GEAR, PRIMARY DRIVEGEAR, PRIMARY DRIVE
-
293306-203YE-00 BEARINGBEARING
-
393102-17467-00 OIL SEALOIL SEAL
-
493306-200Y1-00 BEARINGBEARING
-
53GF-16620-01-00 CLUTCH CARRIER ASSY.CLUTCH CARRIER ASSY.
-
624G-16626-00-00 ...SPRING, CLUTCH WEIGHT 1...SPRING, CLUTCH WEIGHT 1
-
73AA-17660-03-00 SECONDARY FIXED SHEAVE COMP.SECONDARY FIXED SHEAVE COMP.
-
83FC-17670-00-00 SECONDARY SLIDING SHEAVESECONDARY SLIDING SHEAVE
-
993104-33117-00 OIL SEALOIL SEAL
-
1093210-384A6-00 O-RINGO-RING
-
1124G-17664-00-00 PIN, GUIDEPIN, GUIDE
-
1290501-405G5-00 SPRING, COMPRESSIONSPRING, COMPRESSION
-
133XG-17684-00-00 SEAT, SECONDARY SPRINGSEAT, SECONDARY SPRING
-
1490179-28415-00 NUTNUT
-
1524G-16611-03-00 CLUTCH HOUSING COMP.CLUTCH HOUSING COMP.
-
1690179-10609-00 NUTNUT
-
174WX-E7620-00-00 PRIMARY SLIDING SHEAVE COMP.PRIMARY SLIDING SHEAVE COMP.
-
184JC-17632-00-00 WEIGHTWEIGHT
-
193XY-E7623-00-00 CAMCAM
-
204NG-17653-00-00 SLIDERSLIDER
-
2190387-13897-00 COLLARCOLLAR
-
2290201-138P6-00 WASHER, PLATEWASHER, PLATE
-
233AA-17641-00-00 V-BELTV-BELT
-
243XY-E7611-00-00 SHEAVE, PRIMARY FIXEDSHEAVE, PRIMARY FIXED
-
2590214-13055-00 WASHER, CLAWWASHER, CLAW
-
263KJ-15657-00-00 CLUTCH, ONEWAYCLUTCH, ONEWAY
-
2790208-10012-00 WASHER, CONICAL SPRINGWASHER, CONICAL SPRING
-
2890170-10219-00 NUTNUT
