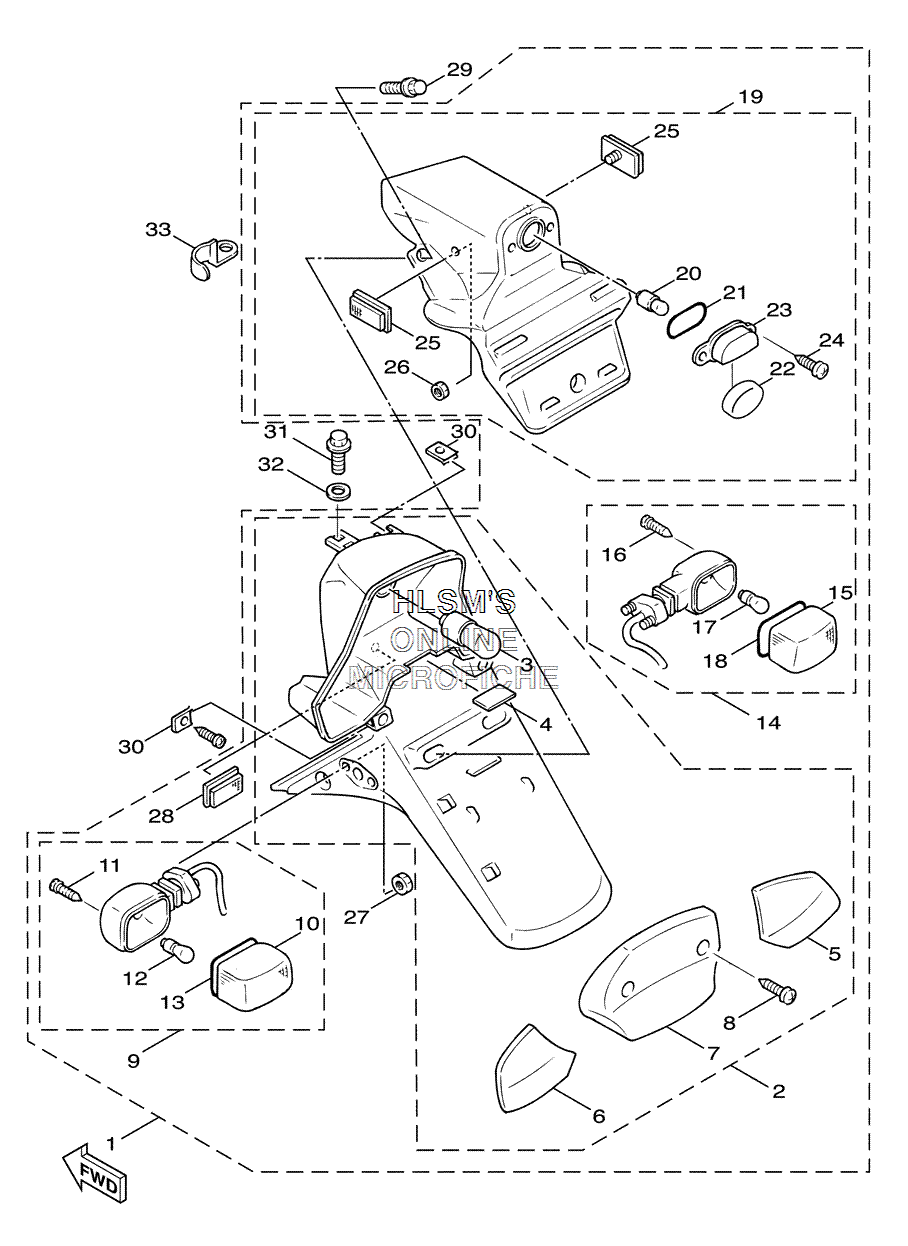

TAILLIGHT ASSY. для Yamaha ZUMA - 2004 года выпуска
-
№АртикулНазвание
-
15PJ-H4700-00-00 TAILLIGHT ASSY.TAILLIGHT ASSY.
-
25PJ-H4710-00-00 ...TAILLIGHT UNIT ASSY....TAILLIGHT UNIT ASSY.
-
35PJ-H4714-00-00 ...BULB...BULB
-
44VP-H4743-10-00 ...LENS, LICENSE LIGHT...LENS, LICENSE LIGHT
-
54VP-H3342-10-00 ...LENS, FLASHER 2...LENS, FLASHER 2
-
64VP-H3332-10-00 ...LENS, FLASHER...LENS, FLASHER
-
74VP-H4721-00-00 ...LENS, TAILLIGHT...LENS, TAILLIGHT
-
897707-40616-00 ...SCREW, TAPPING...SCREW, TAPPING
-
95PJ-H3330-00-00 ...REAR FLASHER LIGHT ASSY....REAR FLASHER LIGHT ASSY.
-
105PJ-H3312-00-00 ...LENS, FLASHER...LENS, FLASHER
-
1197780-40614-00 ...SCREW, TAPPING...SCREW, TAPPING
-
124VP-H3311-00-00 ...BULB, FLASHER...BULB, FLASHER
-
135PJ-H3313-00-00 ...GASKET, FLASHER LENS...GASKET, FLASHER LENS
-
145PJ-H3340-00-00 ...FLASHER LIGHT ASSY. 2...FLASHER LIGHT ASSY. 2
-
155PJ-H3312-00-00 ...LENS, FLASHER...LENS, FLASHER
-
1697780-40614-00 ...SCREW, TAPPING...SCREW, TAPPING
-
174VP-H3311-00-00 ...BULB, FLASHER...BULB, FLASHER
-
185PJ-H3313-00-00 ...GASKET, FLASHER LENS...GASKET, FLASHER LENS
-
195PJ-H4740-00-00 ...LICENSE LIGHT ASSY....LICENSE LIGHT ASSY.
-
204VP-H4744-00-00 ...BULB (12V-5W)...BULB (12V-5W)
-
214MK-H4545-00-00 ...GASKET, LENS...GASKET, LENS
-
224MK-H4743-00-00 ...LENS, LICENSE LIGHT...LENS, LICENSE LIGHT
-
234VP-H4747-00-00 ...COVER, LICENSE LIGHT...COVER, LICENSE LIGHT
-
2497707-40616-00 ...SCREW, TAPPING...SCREW, TAPPING
-
255PJ-H474N-00-00 ...REFLECTOR...REFLECTOR
-
2695707-05300-00 ...NUT, FLANGE...NUT, FLANGE
-
2795707-06500-00 ...NUT, FLANGE...NUT, FLANGE
-
285CP-H5130-01-00 ...REAR REFLECTOR ASSY....REAR REFLECTOR ASSY.
-
2990119-06079-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
3090183-05807-00 NUT, SPRINGNUT, SPRING
-
3190109-06877-00 BOLTBOLT
-
3292907-10600-00 WASHER, PLATEWASHER, PLATE
-
334VP-H4519-00-00 BRACKET, TAILLIGHTBRACKET, TAILLIGHT
