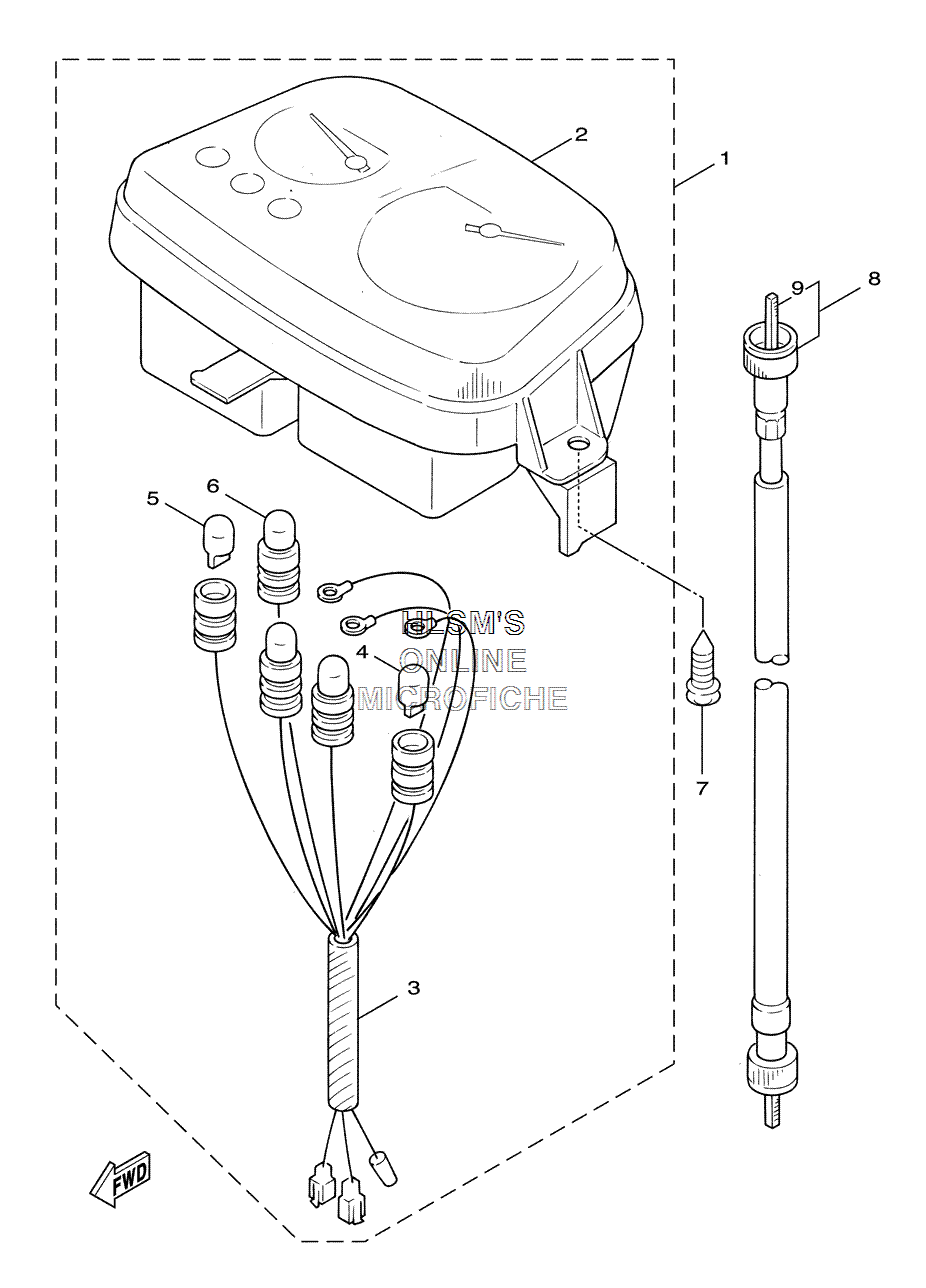

INSTRUMENT PANEL для Yamaha ZUMA - 2004 года выпуска
-
№АртикулНазвание
-
15PJ-H3510-00-00 SPEEDOMETER ASSY.SPEEDOMETER ASSY.
-
24VP-H353K-00-00 ...GLASS PLATE...GLASS PLATE
-
34VP-H3509-00-00 ...SOCKET CORD ASSY....SOCKET CORD ASSY.
-
44VP-H3517-00-00 ...BULB, WEDGE TYPE 12V...BULB, WEDGE TYPE 12V
-
53GF-H3517-00-00 ...BULB (12V-1.7W)...BULB (12V-1.7W)
-
64TE-H3518-00-00 ...BULB, METER...BULB, METER
-
797707-50016-00 SCREW, TAPPINGSCREW, TAPPING
-
85DA-H3550-00-00 SPEEDOMETER CABLE ASSY.SPEEDOMETER CABLE ASSY.
-
95DA-H3551-00-00 ...WIRE, SPEEDOMETER CABLE...WIRE, SPEEDOMETER CABLE
