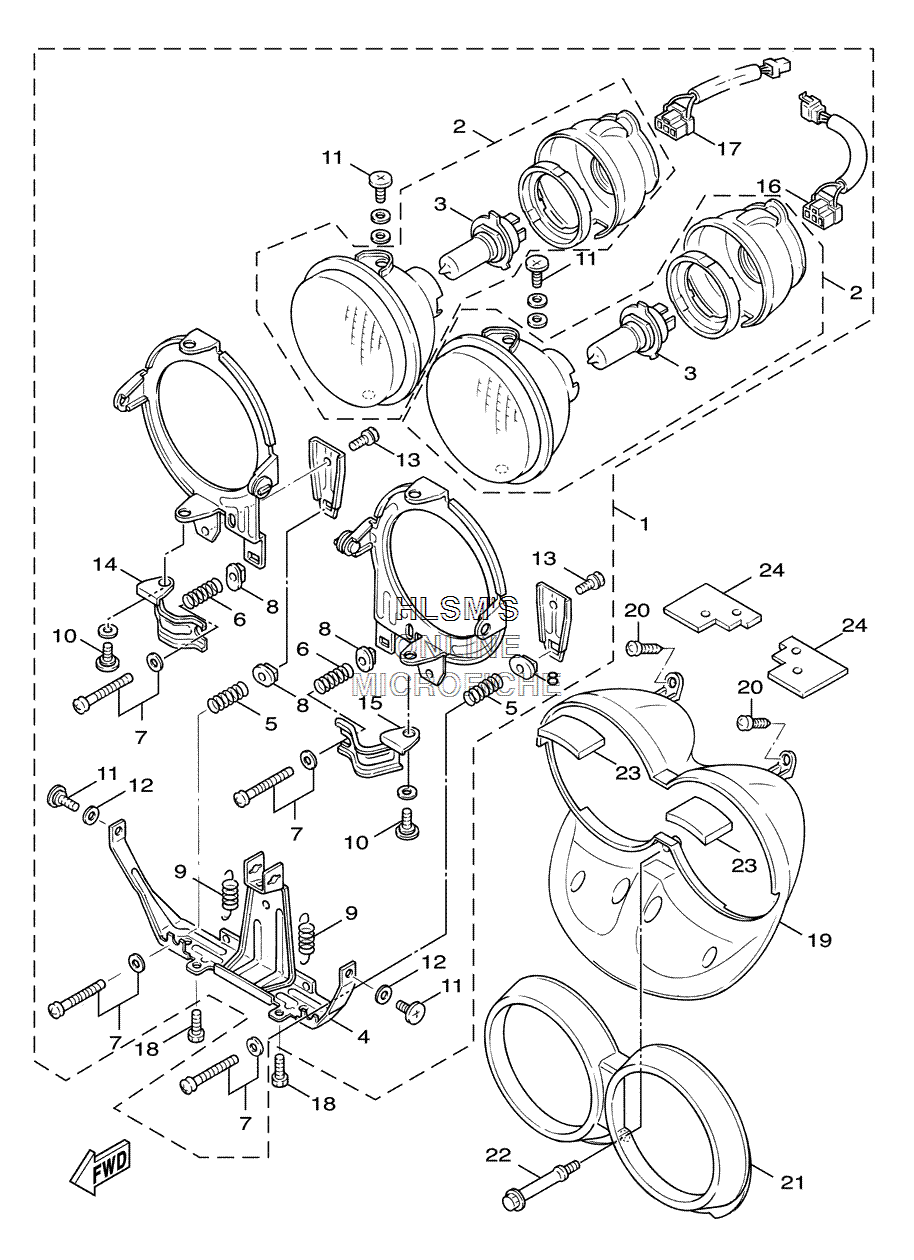

HEADLIGHT ASSY. для Yamaha ZUMA - 2004 года выпуска
-
№АртикулНазвание
-
15PJ-H430A-00-00 HEADLIGHT UNIT ASSY.HEADLIGHT UNIT ASSY.
-
25PJ-H4310-00-00 ...HEADLIGHT UNIT ASSY....HEADLIGHT UNIT ASSY.
-
35PJ-H4314-00-00 ...BULB (12V35W35W) HALOGEN...BULB (12V35W35W) HALOGEN
-
45PJ-H431R-00-00 ...STAY, SETTING...STAY, SETTING
-
55PJ-H4332-00-00 ...SPRING, SCREW...SPRING, SCREW
-
65PJ-H4332-10-00 ...SPRING, SCREW...SPRING, SCREW
-
75PJ-H4331-00-00 ...SCREW, RIM ADJUSTING...SCREW, RIM ADJUSTING
-
85PJ-H4317-00-00 ...NUT...NUT
-
95PJ-H4335-00-00 ...SPRING...SPRING
-
105PJ-H433E-00-00 ...SCREW, ADJUSTING...SCREW, ADJUSTING
-
115PJ-H4325-00-00 ...SCREW, RIM FITTING...SCREW, RIM FITTING
-
125PJ-H4344-00-00 ...WASHER, PLAIN...WASHER, PLAIN
-
135PJ-H4526-00-00 ...SCREW...SCREW
-
145PJ-H4182-00-00 ...BRACKET, LOWER 2...BRACKET, LOWER 2
-
155PJ-H4181-00-00 ...BRACKET, LOWER 1...BRACKET, LOWER 1
-
165PJ-H4312-00-00 ...HOLDER, SOCKET...HOLDER, SOCKET
-
175PJ-H4312-10-00 ...HOLDER, SOCKET...HOLDER, SOCKET
-
1895807-06016-00 BOLT, FLANGEBOLT, FLANGE
-
195PJ-H4144-00-00 COVER, HEADLIGHTCOVER, HEADLIGHT
-
2097707-50016-00 SCREW, TAPPINGSCREW, TAPPING
-
215PJ-H4169-00-00 GUARD, HEADLIGHTGUARD, HEADLIGHT
-
225PJ-H3546-00-00 BOLTBOLT
-
234VP-H4366-00-00 DAMPER, HEADLIGHTDAMPER, HEADLIGHT
-
244VP-H4368-00-00 DAMPER 3DAMPER 3
