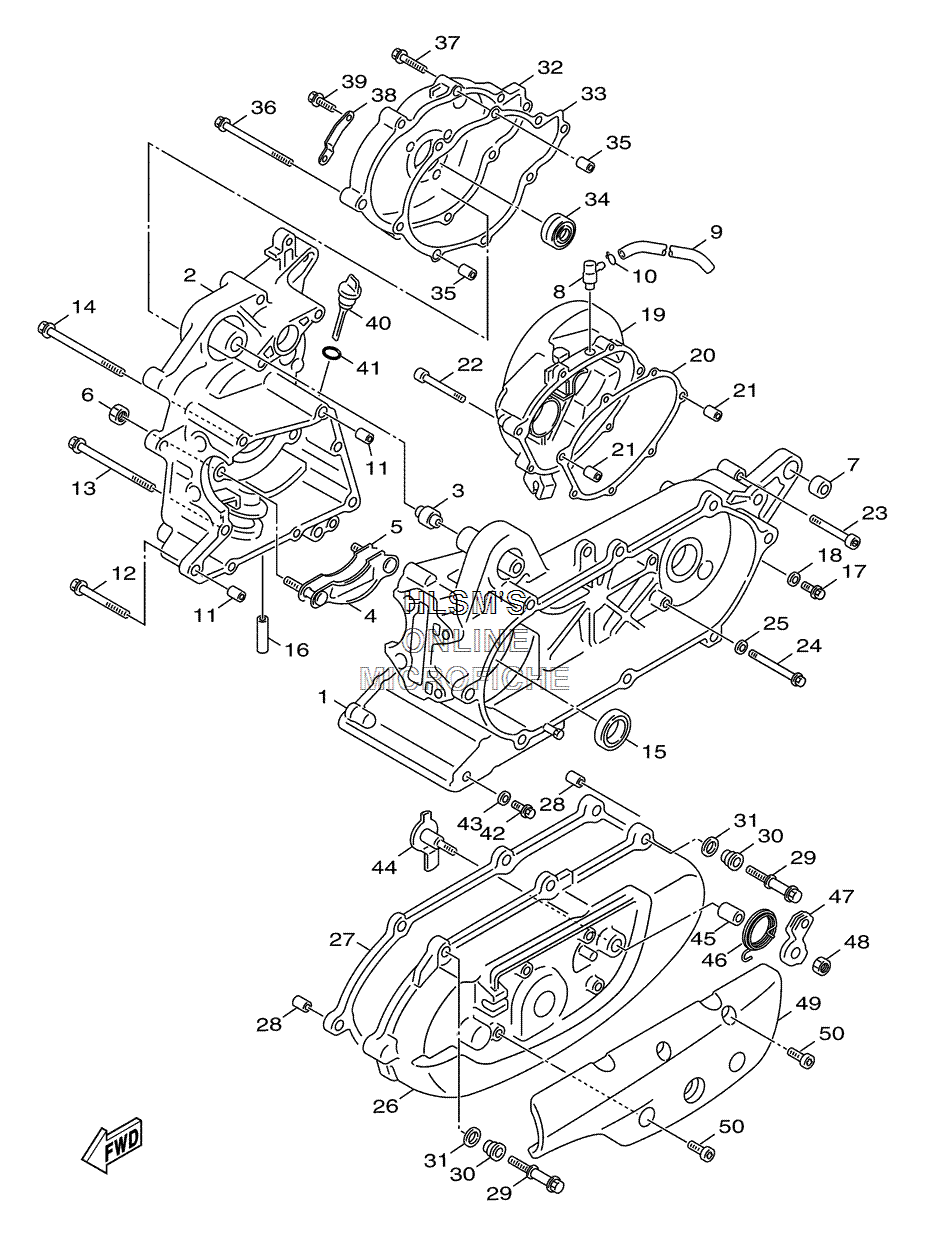

CRANKCASE ASSY. для Yamaha VINO 50 - 2006 года выпуска
-
№АртикулНазвание
-
15ST-E5111-00-00 CRANKCASE 1CRANKCASE 1
-
25ST-W1512-00-00 CRANKCASE 2CRANKCASE 2
-
35ST-F2123-00-00 BUSH 1BUSH 1
-
45ST-E5142-00-00 GUIDE 1GUIDE 1
-
55ST-E5353-00-00 GASKET, DRAINGASKET, DRAIN
-
695607-06100-00 NUT, UNUT, U
-
74X6-F2216-00-00 BUSH, REAR SHOCK ABSORBERBUSH, REAR SHOCK ABSORBER
-
85ST-E5371-00-00 BREATHERBREATHER
-
991A10-07016-00 TUBE, FLEXIBLETUBE, FLEXIBLE
-
1090462-08800-00 CLAMPCLAMP
-
1191810-14807-00 PIN, DOWELPIN, DOWEL
-
1295027-06060-00 BOLT, FLANGEBOLT, FLANGE
-
1395027-06080-00 BOLT, FLANGEBOLT, FLANGE
-
1495027-06100-00 BOLT, FLANGEBOLT, FLANGE
-
1593102-19804-00 OIL SEALOIL SEAL
-
165ST-E3416-00-00 PIPE, OIL 1PIPE, OIL 1
-
1795817-08016-00 BOLT, FLANGEBOLT, FLANGE
-
1890430-08816-00 GASKETGASKET
-
195ST-E5421-00-00 COVER, CRANKCASE 2COVER, CRANKCASE 2
-
205ST-E5461-00-00 GASKET, CRANKCASE COVER 2GASKET, CRANKCASE COVER 2
-
2191810-14807-00 PIN, DOWELPIN, DOWEL
-
2290110-06813-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
2390110-06815-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
2495817-06035-00 BOLT, FLANGEBOLT, FLANGE
-
2590430-06014-00 GASKETGASKET
-
265ST-E5411-00-33 COVER, CRANKCASE 1 (BLACK)COVER, CRANKCASE 1 (BLACK)
-
275ST-E5451-00-00 GASKET, CRANKCASE COVER 1GASKET, CRANKCASE COVER 1
-
2893610-20800-00 PIN, DOWELPIN, DOWEL
-
295ML-E5481-00-00 BOLT 1BOLT 1
-
305ML-E5422-00-00 BUSHBUSH
-
315ML-E5158-00-00 WASHERWASHER
-
325ST-E5417-00-00 COVER, CAPCOVER, CAP
-
335ST-E5453-00-00 GASKETGASKET
-
3493102-17807-00 OIL SEALOIL SEAL
-
3591810-14807-00 PIN, DOWELPIN, DOWEL
-
3695027-06030-00 BOLT, FLANGEBOLT, FLANGE
-
3795027-06040-00 BOLT, FLANGEBOLT, FLANGE
-
385ST-E5113-00-00 PLATEPLATE
-
3995027-06010-00 BOLT, FLANGEBOLT, FLANGE
-
405ST-E5362-00-00 PLUG, OIL LEVELPLUG, OIL LEVEL
-
415ML-E3769-00-00 O-RINGO-RING
-
4295817-08016-00 BOLT, FLANGEBOLT, FLANGE
-
4390430-08816-00 GASKETGASKET
-
445SU-E5460-01-00 STOPPER LEVER ASSY.STOPPER LEVER ASSY.
-
4590380-12800-00 BUSH, SOLIDBUSH, SOLID
-
4690508-162B3-00 SPRING, TORSIONSPRING, TORSION
-
475SU-E546C-00-00 HOLDERHOLDER
-
4890170-08261-00 NUTNUT
-
495ST-E5419-00-00 COVER, SHIFTER 1COVER, SHIFTER 1
-
505ST-E5481-00-00 BOLT 1BOLT 1
