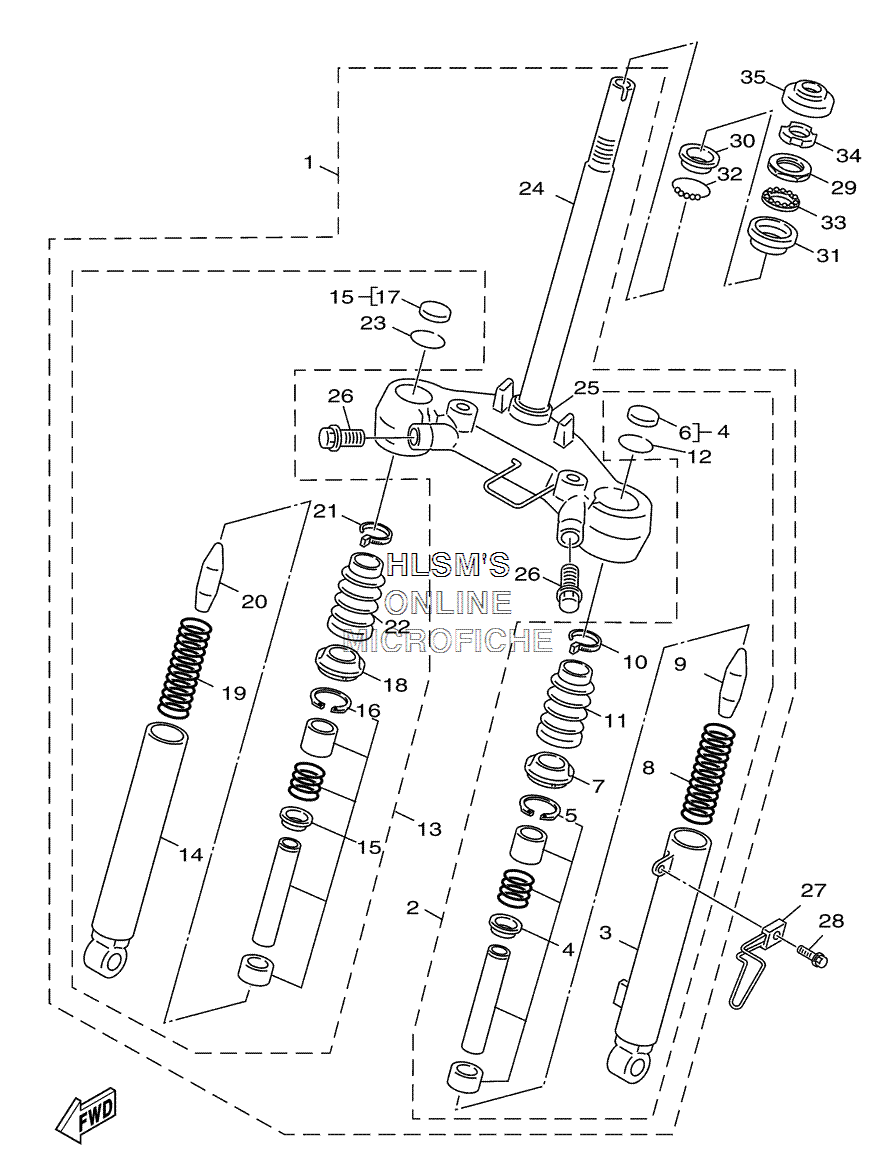

SUSPENSION - FRONT FORK для Yamaha VINO 50 - 2006 года выпуска
-
№АртикулНазвание
-
13D1-F3100-00-00 FRONT FORK ASSY.FRONT FORK ASSY.
-
25ST-F3102-00-00 ...FRONT FORK ASSY. (L.H)...FRONT FORK ASSY. (L.H)
-
35ST-F3126-00-00 ...TUBE, OUTER (LEFT)...TUBE, OUTER (LEFT)
-
45ST-W2311-00-00 ...INNER TUBE COMP. 1...INNER TUBE COMP. 1
-
55ST-F3156-00-00 ...CLIP, OIL SEAL...CLIP, OIL SEAL
-
65ST-F3154-00-00 ...PLUG, INNER TUBE...PLUG, INNER TUBE
-
75ST-F3144-00-00 ...SEAL, DUST...SEAL, DUST
-
85ST-F3141-00-00 ...SPRING, FRONT FORK...SPRING, FRONT FORK
-
95ST-F3195-00-00 ...RUBBER...RUBBER
-
103XG-F3192-00-00 ...BAND...BAND
-
115ST-F3191-00-00 ...BOOT...BOOT
-
123XG-F3153-00-00 ...RING, SNAP...RING, SNAP
-
135ST-F3103-00-00 ...FRONT FORK ASSY. (R.H)...FRONT FORK ASSY. (R.H)
-
145ST-F3136-00-00 ...TUBE, OUTER (RIGHT)...TUBE, OUTER (RIGHT)
-
155ST-W2311-00-00 ...INNER TUBE COMP. 1...INNER TUBE COMP. 1
-
165ST-F3156-00-00 ...CLIP, OIL SEAL...CLIP, OIL SEAL
-
175ST-F3154-00-00 ...PLUG, INNER TUBE...PLUG, INNER TUBE
-
185ST-F3144-00-00 ...SEAL, DUST...SEAL, DUST
-
195ST-F3141-00-00 ...SPRING, FRONT FORK...SPRING, FRONT FORK
-
205ST-F3195-00-00 ...RUBBER...RUBBER
-
213XG-F3192-00-00 ...BAND...BAND
-
225ST-F3191-00-00 ...BOOT...BOOT
-
233XG-F3153-00-00 ...RING, SNAP...RING, SNAP
-
243D1-F3340-00-00 ...UNDER BRACKET COMP....UNDER BRACKET COMP.
-
2522F-23414-01-00 ...RACE, BALL 4...RACE, BALL 4
-
2695821-10030-00 ...BOLT, FLANGE...BOLT, FLANGE
-
275ST-F3317-00-00 HOLDER, CABLEHOLDER, CABLE
-
289580L-06010-00 BOLT, FLANGEBOLT, FLANGE
-
293KJ-23411-01-00 RACE, BALL 1RACE, BALL 1
-
3022F-23412-01-00 RACE, BALL 2RACE, BALL 2
-
312E9-23412-00-00 RACE, BALL 2RACE, BALL 2
-
3222F-2341E-00-00 RETAINER, BALL BEARINGRETAINER, BALL BEARING
-
3393505-32042-00 BALL 5/32BALL 5/32
-
342E9-23454-00-00 NUT, FITTING 2NUT, FITTING 2
-
355SU-F3415-00-00 COVER, BALL RACE 1COVER, BALL RACE 1
