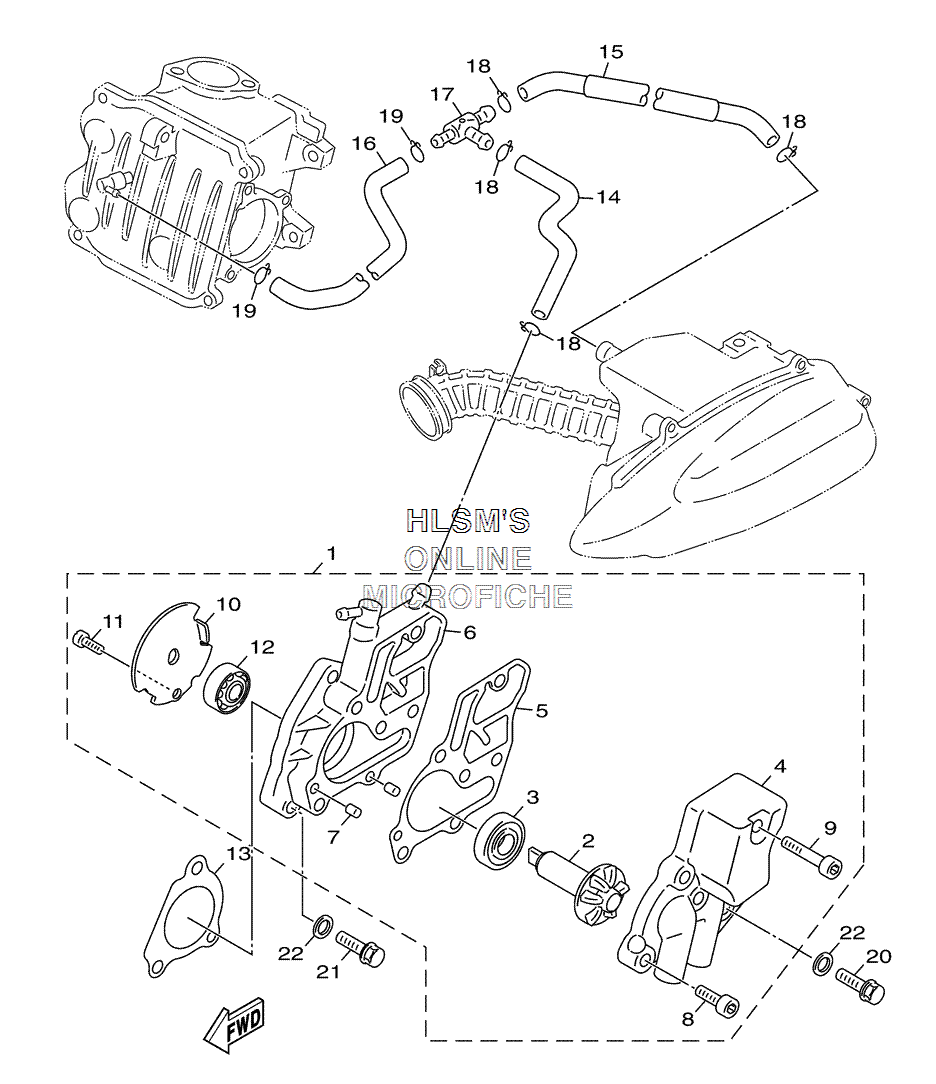

WATER PUMP ASSY. для Yamaha VINO 50 - 2006 года выпуска
-
№АртикулНазвание
-
15ST-E2420-00-00 WATER PUMP ASSY.WATER PUMP ASSY.
-
25ST-E2450-00-00 ...IMPELLER SHAFT ASSY....IMPELLER SHAFT ASSY.
-
393103-10168-00 ...OIL SEAL, SW-TYPE...OIL SEAL, SW-TYPE
-
45ST-E2422-00-00 ...COVER, HOUSING...COVER, HOUSING
-
55ST-E2428-00-00 ...GASKET, HOUSING COVER 2...GASKET, HOUSING COVER 2
-
65ST-E1185-00-00 ...COVER, CYLINDER HEAD SIDE 1...COVER, CYLINDER HEAD SIDE 1
-
793604-10011-00 ...PIN, DOWEL...PIN, DOWEL
-
891317-06020-00 ...BOLT...BOLT
-
991317-06035-00 ...BOLT...BOLT
-
105ST-E1951-00-00 ...PLATE...PLATE
-
1195027-06012-00 ...BOLT, FLANGE...BOLT, FLANGE
-
1293306-000Y1-00 ...BEARING...BEARING
-
135ST-E2435-00-00 GASKETGASKET
-
145ST-E1166-00-00 PIPE, BREATHER 1PIPE, BREATHER 1
-
155ST-E1167-00-00 PIPE, BREATHER 2PIPE, BREATHER 2
-
165ST-E1126-00-00 PIPE, BREATHER 3PIPE, BREATHER 3
-
175ST-E1116-00-00 JOINT, BREATHERJOINT, BREATHER
-
1890467-11825-00 CLIPCLIP
-
1990467-09006-00 CLIP, SCISSORCLIP, SCISSOR
-
2095027-06035-00 BOLT, FLANGEBOLT, FLANGE
-
2195027-06014-00 BOLT, FLANGEBOLT, FLANGE
-
2290430-06166-00 GASKETGASKET
