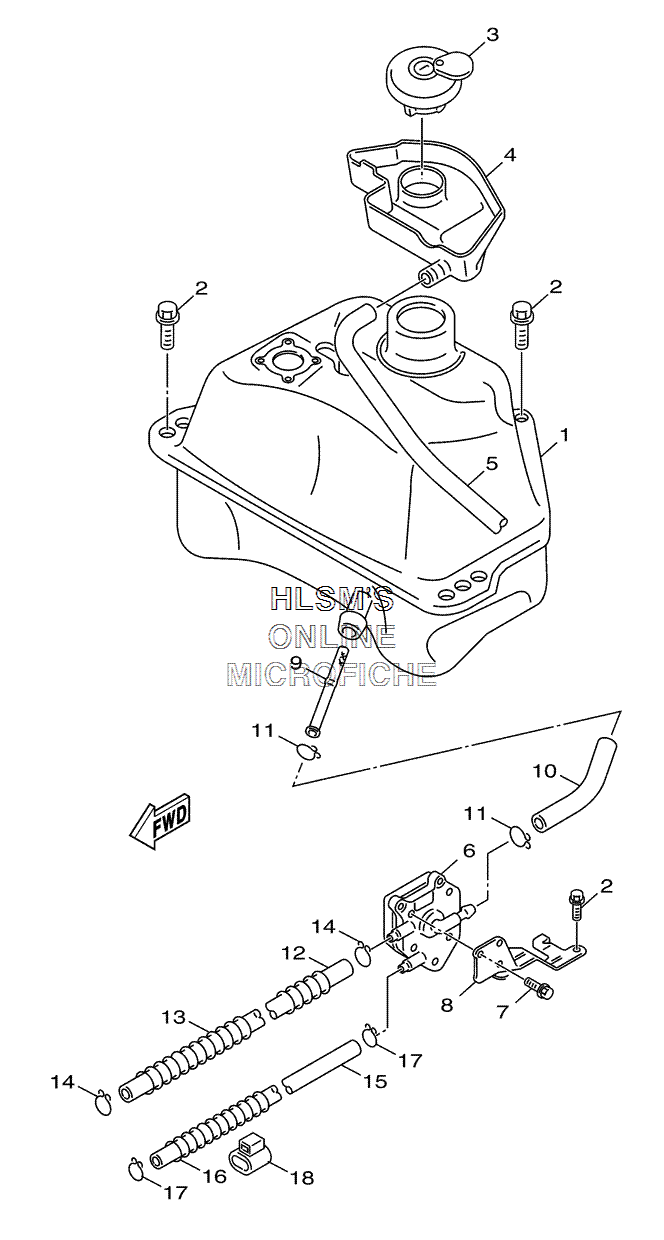

FUEL TANK ASSY. для Yamaha VINO 50 - 2006 года выпуска
-
№АртикулНазвание
-
15ST-F4110-10-33 FUEL TANK COMP. (BLACK)FUEL TANK COMP. (BLACK)
-
295827-06016-00 BOLT, FLANGEBOLT, FLANGE
-
35ST-F4602-10-00 CAP ASSY.CAP ASSY.
-
45ST-F414A-00-00 COVER, FILLERCOVER, FILLER
-
591A20-12026-00 TUBE, FLEXIBLE VINYLTUBE, FLEXIBLE VINYL
-
65ST-F4500-00-00 FUEL COCK ASSY. 1FUEL COCK ASSY. 1
-
795807-06010-00 BOLT, FLANGEBOLT, FLANGE
-
85ST-F142T-10-00 STAY, FUEL COCKSTAY, FUEL COCK
-
95ST-F4514-00-00 NET, FILTER 1NET, FILTER 1
-
105ST-F4312-00-00 PIPE 2PIPE 2
-
1190467-10008-00 CLIP, SCISSORCLIP, SCISSOR
-
125ST-F4311-00-00 PIPE, FUEL 1PIPE, FUEL 1
-
1390501-08668-00 SPRING, COMPRESSIONSPRING, COMPRESSION
-
1490467-09006-00 CLIP, SCISSORCLIP, SCISSOR
-
155ST-F4317-00-00 PIPE 7PIPE 7
-
1690501-06802-00 SPRING, COMPRESSIONSPRING, COMPRESSION
-
1790467-08075-00 CLIP, SCISSORCLIP, SCISSOR
-
185SU-F419A-00-00 HOLDERHOLDER
