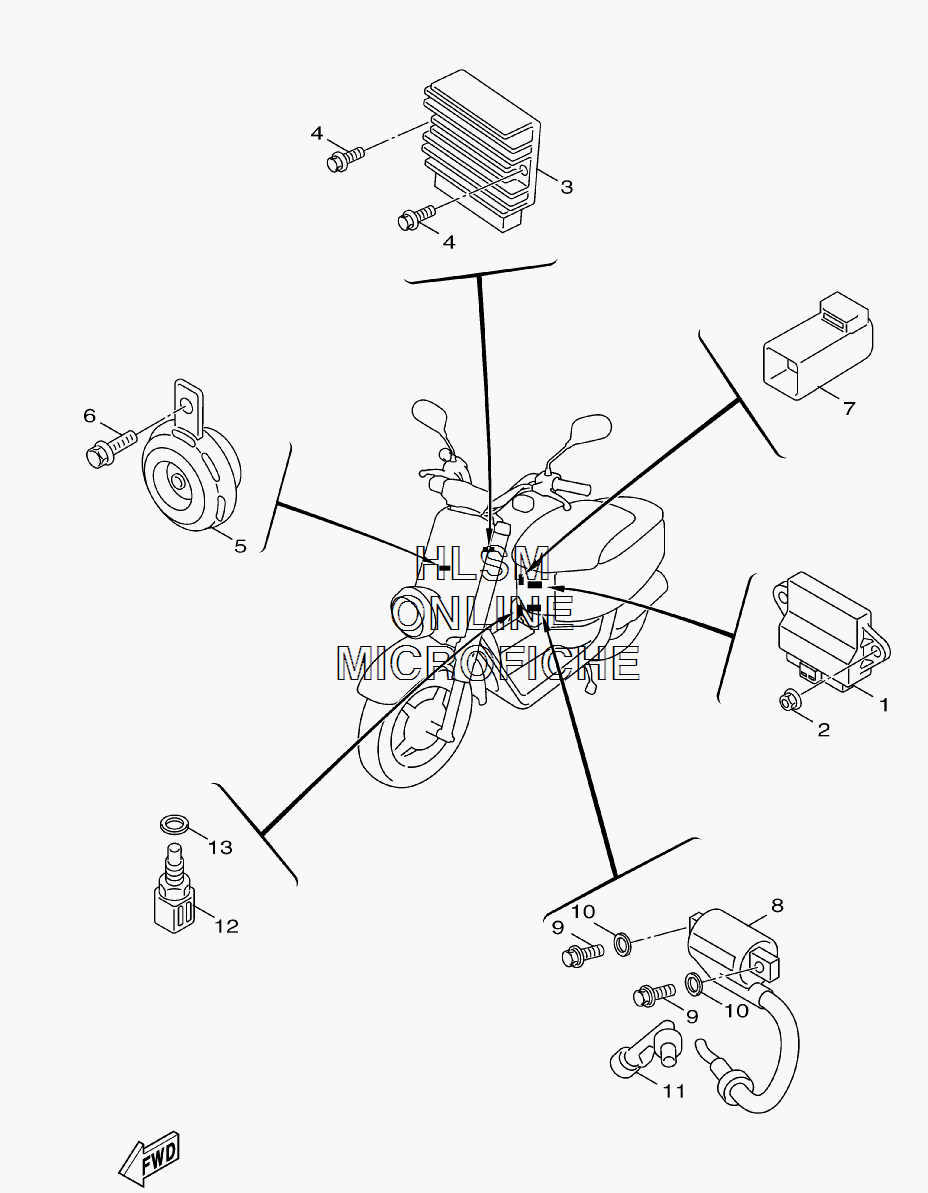

ELECTRICAL для Yamaha C3 - 2007 года выпуска
-
№АртикулНазвание
-
13B3-H591A-10-00 ENGINE CONTROL UNIT ASSYENGINE CONTROL UNIT ASSY
-
295707-06500-00 NUT, FLANGENUT, FLANGE
-
33B3-H1960-00-00 RECTIFIER & REGULATOR ASSYRECTIFIER & REGULATOR ASSY
-
495807-06025-00 BOLT, FLANGEBOLT, FLANGE
-
53B3-H3371-00-00 HORNHORN
-
695027-06012-00 BOLT, FLANGEBOLT, FLANGE
-
75WC-H1940-00-00 STARTER RELAY ASSYSTARTER RELAY ASSY
-
83B3-H2310-00-00 IGNITION COIL ASSYIGNITION COIL ASSY
-
997007-06016-00 BOLT, HEXAGONBOLT, HEXAGON
-
1092907-06600-00 WASHER, PLATEWASHER, PLATE
-
115ST-H2370-00-00 PLUG CAP ASSYPLUG CAP ASSY
-
125YP-85790-00-00 THERMOSENSOR ASSYTHERMOSENSOR ASSY
-
1390201-12172-00 WASHER, PLATEWASHER, PLATE
