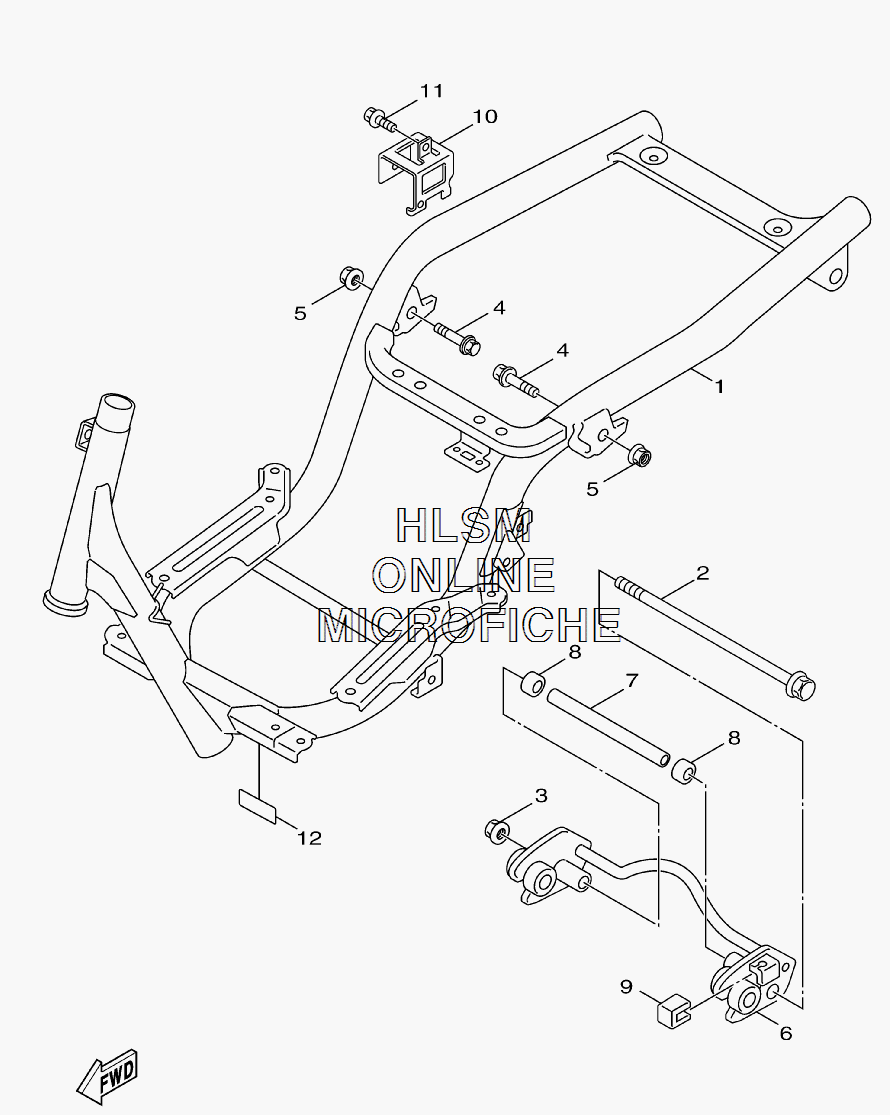

FRAME для Yamaha C3 - 2007 года выпуска
-
№АртикулНазвание
-
13B3-F1110-10-33 FRAME COMP. (YB FOR S3, DPBMC)FRAME COMP. (YB FOR S3, DPBMC)
-
25ST-F1481-00-00 BOLT, ENGINE MOUNTING 1BOLT, ENGINE MOUNTING 1
-
390185-10801-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
-
495827-10045-00 BOLT, FLANGEBOLT, FLANGE
-
595607-10200-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
-
63B3-F1410-00-00 ENGINE BRACKET COMP.ENGINE BRACKET COMP.
-
75ST-F1459-00-00 SPACERSPACER
-
85ST-F7235-00-00 COVER, DUSTCOVER, DUST
-
95ST-F139X-00-00 DAMPERDAMPER
-
103B3-F1148-00-00 BRACKET, AIR CLEANER 2BRACKET, AIR CLEANER 2
-
1195807-06012-00 BOLT, FLANGEBOLT, FLANGE
-
123B3-F117G-10-00 PROTECTORPROTECTOR
