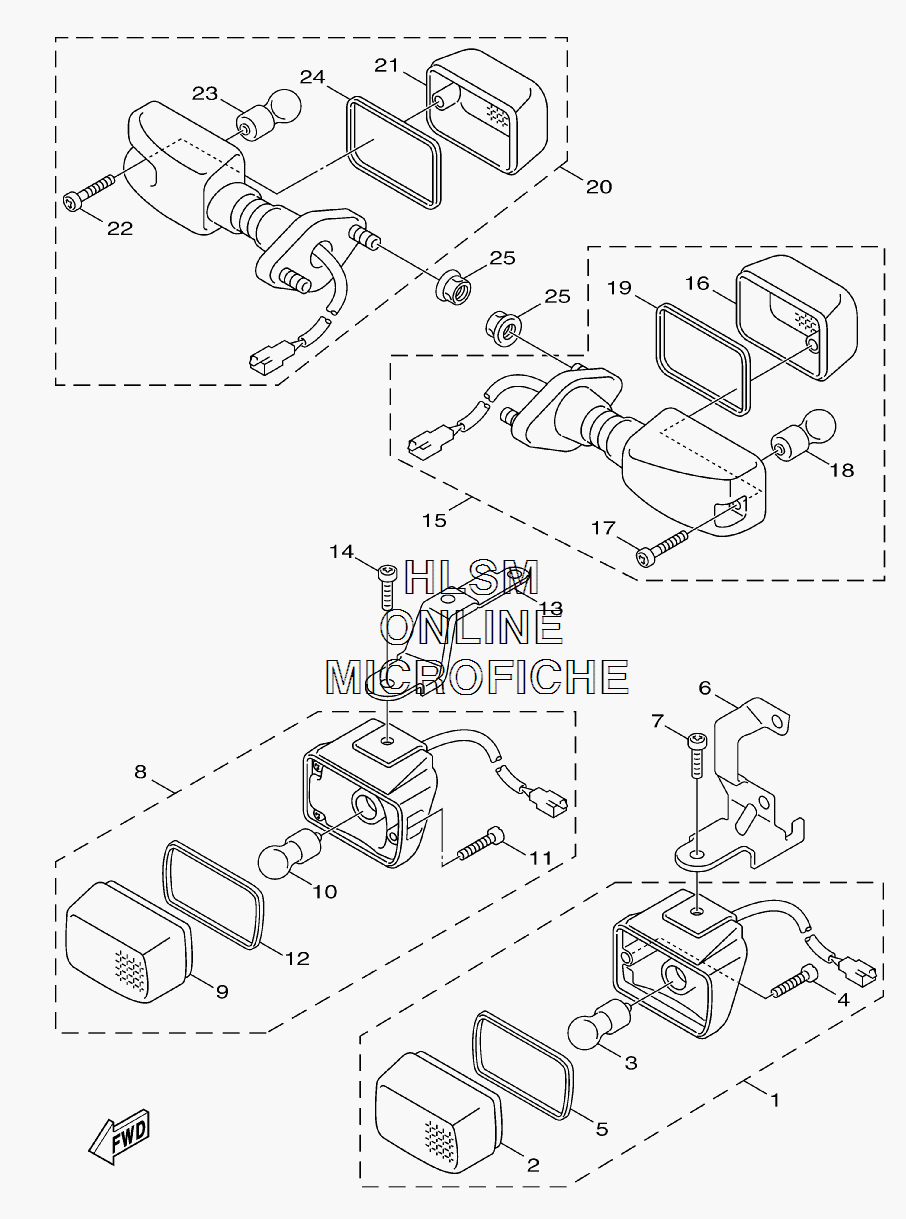

FLASHER LIGHT для Yamaha C3 - 2007 года выпуска
-
№АртикулНазвание
-
13B3-H3310-00-00 FRONT FLASHER LIGHT ASSY 1FRONT FLASHER LIGHT ASSY 1
-
25PJ-H3312-00-00 ...LENS, FLASHER...LENS, FLASHER
-
34VP-H3311-00-00 ...BULB 12V 10W...BULB 12V 10W
-
497780-40614-00 ...SCREW, TAPPING...SCREW, TAPPING
-
55PJ-H3313-00-00 ...GASKET, FLASHER LENS...GASKET, FLASHER LENS
-
63B3-H3318-10-00 STAY, FLASHER 1STAY, FLASHER 1
-
798507-05010-00 SCREW, PAN HEAD (3SX)SCREW, PAN HEAD (3SX)
-
83B3-H3320-00-00 FRONT FLASHER LIGHT ASSY 2FRONT FLASHER LIGHT ASSY 2
-
95PJ-H3312-00-00 ...LENS, FLASHER...LENS, FLASHER
-
104VP-H3311-00-00 ...BULB 12V 10W...BULB 12V 10W
-
1197780-40614-00 ...SCREW, TAPPING...SCREW, TAPPING
-
125PJ-H3313-00-00 ...GASKET, FLASHER LENS...GASKET, FLASHER LENS
-
133B3-H3328-10-00 STAY, FLASHER 2STAY, FLASHER 2
-
1498507-05010-00 SCREW, PAN HEAD (3SX)SCREW, PAN HEAD (3SX)
-
155PJ-H3330-10-00 REAR FLASHER LIGHT ASSY 1REAR FLASHER LIGHT ASSY 1
-
165PJ-H3312-00-00 ...LENS, FLASHER...LENS, FLASHER
-
1797780-40614-00 ...SCREW, TAPPING...SCREW, TAPPING
-
184VP-H3311-00-00 ...BULB 12V 10W...BULB 12V 10W
-
195PJ-H3313-00-00 ...GASKET, FLASHER LENS...GASKET, FLASHER LENS
-
205PJ-H3340-10-00 REAR FLASHER LIGHT ASSY 2REAR FLASHER LIGHT ASSY 2
-
215PJ-H3312-00-00 ...LENS, FLASHER...LENS, FLASHER
-
2297780-40614-00 ...SCREW, TAPPING...SCREW, TAPPING
-
234VP-H3311-00-00 ...BULB 12V 10W...BULB 12V 10W
-
245PJ-H3313-00-00 ...GASKET, FLASHER LENS...GASKET, FLASHER LENS
-
2590176-06055-00 NUT, CROWNNUT, CROWN
