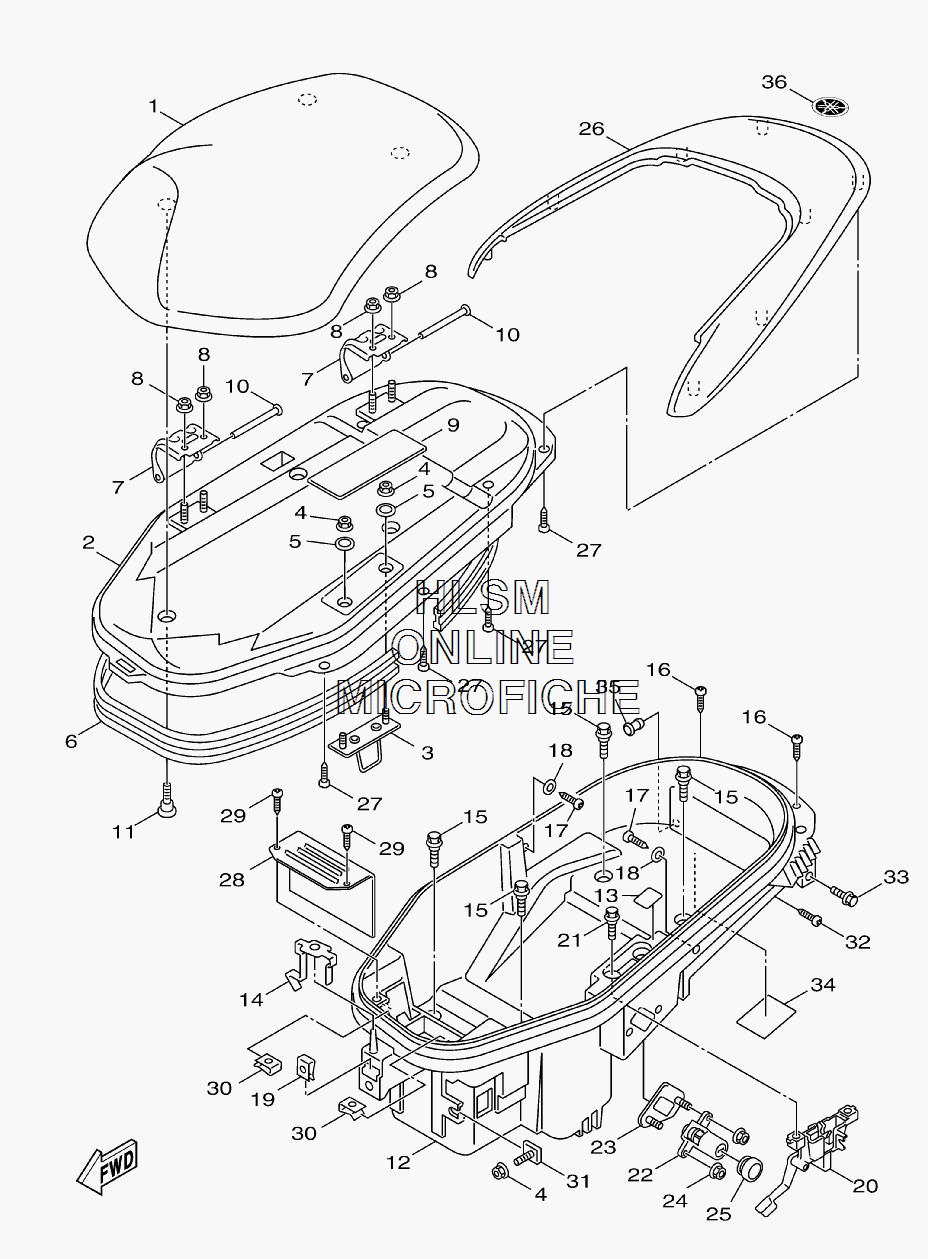

SEAT ASSY. для Yamaha C3 - 2007 года выпуска
-
№АртикулНазвание
-
13B3-F4710-00-00 SINGLE SEAT ASSYSINGLE SEAT ASSY
-
23B3-F470E-W0-00 BOTTOM PLATE COMP.BOTTOM PLATE COMP.
-
33B3-F4728-00-00 BRACKET, SEATBRACKET, SEAT
-
495707-06500-00 NUT, FLANGENUT, FLANGE
-
590201-06008-00 WASHER, PLATEWASHER, PLATE
-
63B3-F475M-00-00 SEALSEAL
-
73B3-F4726-00-00 HINGE, SEATHINGE, SEAT
-
895707-06500-00 NUT, FLANGENUT, FLANGE
-
93B3-F4858-00-00 SEALSEAL
-
103B3-F4727-00-00 PIN, SEAT FITTINGPIN, SEAT FITTING
-
1190109-06061-00 BOLTBOLT
-
123B3-F473R-01-00 BOX 1BOX 1
-
133B3-F4747-00-00 DAMPER, SEATDAMPER, SEAT
-
143B3-F115J-00-00 BRACKET, HELMET HANGERBRACKET, HELMET HANGER
-
1590109-06043-00 BOLTBOLT
-
1697707-50016-00 SCREW, TRUSS HEAD TAPPINGSCREW, TRUSS HEAD TAPPING
-
1797707-50020-00 SCREW, TAPPINGSCREW, TAPPING
-
1890201-06856-00 WASHER, PLATEWASHER, PLATE
-
1990183-06801-00 NUT, SPRINGNUT, SPRING
-
203B3-F4780-00-00 SEAT LOCK ASSYSEAT LOCK ASSY
-
2190109-06043-00 BOLTBOLT
-
223B3-F4709-00-00 ROTOR ASSYROTOR ASSY
-
233B3-F478X-00-00 BRACKET, SEAT LOCKBRACKET, SEAT LOCK
-
2495707-06500-00 NUT, FLANGENUT, FLANGE
-
253B3-F482H-00-00 CAPCAP
-
263B3-F4711-00-P4 COVER, SINGLE SEAT FOR S3COVER, SINGLE SEAT FOR S3
-
263B3-F4711-00-P5 COVER, SINGLE SEAT FOR DPBMCCOVER, SINGLE SEAT FOR DPBMC
-
2797707-50016-00 SCREW, TRUSS HEAD TAPPINGSCREW, TRUSS HEAD TAPPING
-
283B3-H2129-00-00 COVER, BATTERYCOVER, BATTERY
-
2997707-50016-00 SCREW, TRUSS HEAD TAPPINGSCREW, TRUSS HEAD TAPPING
-
3090183-05807-00 NUT, SPRINGNUT, SPRING
-
313B3-H1674-00-00 BOLTBOLT
-
3297707-50016-00 SCREW, TRUSS HEAD TAPPINGSCREW, TRUSS HEAD TAPPING
-
3390119-06857-00 BOLT WITH WASHERBOLT WITH WASHER
-
343B3-F4854-00-00 DAMPERDAMPER
-
353B3-F4481-00-00 PLUGPLUG
-
365YR-F8315-00-00 EMBLEMEMBLEM
