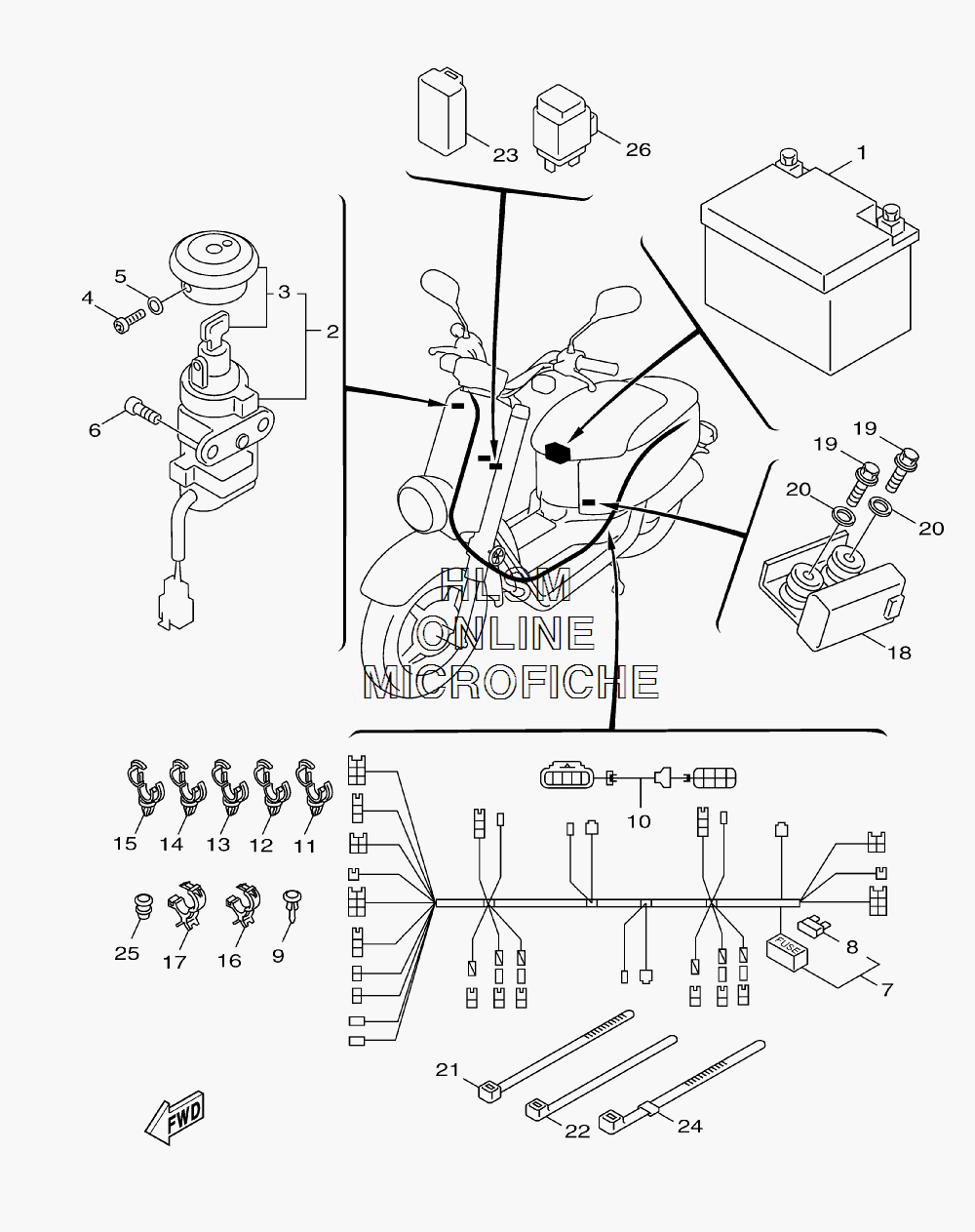

ELECTRICAL 2 для Yamaha C3 - 2008 года выпуска
-
№АртикулНазвание
-
1BTG-GTX5L-BS-00 BATTERY ASSY (GTX5L-BS)BATTERY ASSY (GTX5L-BS)
-
23B3-H2501-00-00 MAIN SWITCH STEERING LOCKMAIN SWITCH STEERING LOCK
-
33B3-WH250-00-00 SHUTTER 2SHUTTER 2
-
498507-05012-00 SCREW, PAN HEADSCREW, PAN HEAD
-
592907-05600-00 WASHER, PLATEWASHER, PLATE
-
690149-06826-00 SCREWSCREW
-
73B3-H2590-10-00 WIRE HARNESS ASSYWIRE HARNESS ASSY
-
85ML-H2151-10-00 ...FUSE (15A)...FUSE (15A)
-
990269-07802-00 RIVETRIVET
-
103B3-H2509-00-00 WIRE, SUB LEADWIRE, SUB LEAD
-
1190464-20803-00 CLAMPCLAMP
-
1290464-20803-00 CLAMPCLAMP
-
1390464-20803-00 CLAMPCLAMP
-
1490464-20803-00 CLAMPCLAMP
-
1590464-20803-00 CLAMPCLAMP
-
1690464-25801-00 CLAMPCLAMP
-
1790464-30801-00 CLAMPCLAMP
-
185PS-82576-01-00 EMERGENCY STOP SWITCHEMERGENCY STOP SWITCH
-
1991317-04025-00 BOLTBOLT
-
2090201-047A2-00 WASHER, PLATEWASHER, PLATE
-
2131U-H3936-00-00 BAND, SWITCH CORDBAND, SWITCH CORD
-
2290465-13152-00 BANDBAND
-
234HC-81950-00-00 RELAY ASSYRELAY ASSY
-
2431U-H3936-10-00 BAND, SWITCH CORDBAND, SWITCH CORD
-
255SU-H2119-10-00 COVER, LEAD WIRECOVER, LEAD WIRE
-
263B3-83350-00-00 FLASHER RELAY ASSYFLASHER RELAY ASSY
