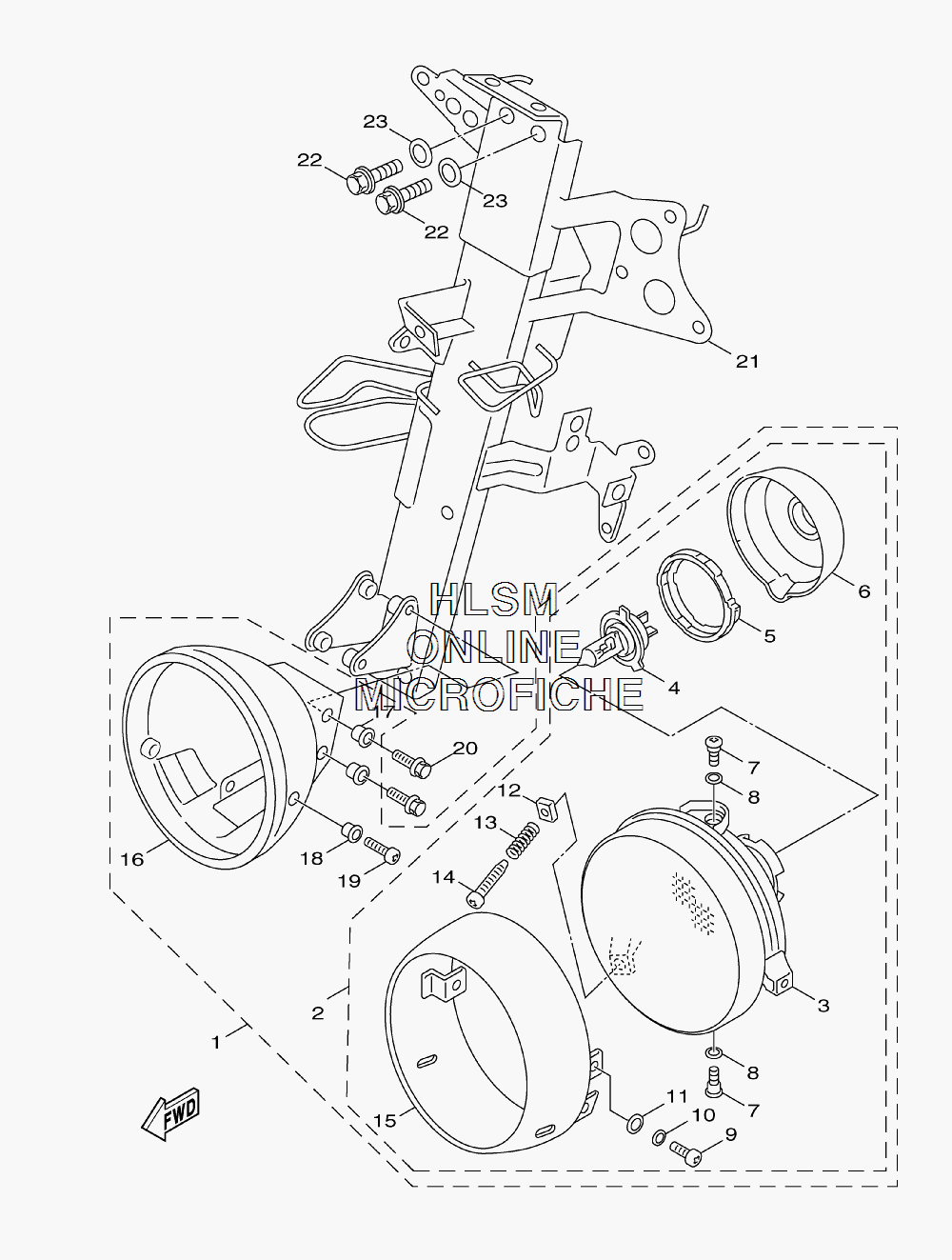

HEADLIGHT ASSY. для Yamaha C3 - 2008 года выпуска
-
№АртикулНазвание
-
13B3-H4300-10-00 HEADLIGHT ASSYHEADLIGHT ASSY
-
23B3-H4310-10-00 ...HEADLIGHT UNIT ASSY...HEADLIGHT UNIT ASSY
-
33B3-H430A-10-00 ...HEADLIGHT UNIT ASSY...HEADLIGHT UNIT ASSY
-
45ST-H4314-00-00 ...BULB, HEADLIGHT (12V-35/35W...BULB, HEADLIGHT (12V-35/35W
-
55PJ-H4397-10-00 COVER, SOCKETCOVER, SOCKET
-
65PJ-H4378-10-00 ...CAP...CAP
-
75PJ-H4325-00-00 ...SCREW, RIM FITTING...SCREW, RIM FITTING
-
85YR-H4344-10-00 ...WASHER, PLAIN...WASHER, PLAIN
-
93B3-H4325-00-00 ...SCREW, RIM FITTING...SCREW, RIM FITTING
-
103B3-H4327-00-00 ...WASHER, SPECIAL...WASHER, SPECIAL
-
113B3-H4344-00-00 ...WASHER, PLAIN...WASHER, PLAIN
-
123B3-H4334-00-00 ...NUT, ADJUSTING...NUT, ADJUSTING
-
133B3-H4332-00-00 ...SPRING, SCREW...SPRING, SCREW
-
143B3-H4331-00-00 ...SCREW, RIM ADJUSTING...SCREW, RIM ADJUSTING
-
153B3-H4315-00-00 ...RIM, HEADLIGHT...RIM, HEADLIGHT
-
163B3-H4330-00-00 ...BODY ASSY...BODY ASSY
-
1790387-06872-00 ...COLLAR...COLLAR
-
185AG-H4338-00-00 ...COLLAR, BODY FITTING...COLLAR, BODY FITTING
-
1990157-06064-00 ...SCREW, PAN HEAD...SCREW, PAN HEAD
-
2095827-06016-00 BOLT, FLANGEBOLT, FLANGE
-
213B3-F3174-00-00 STAY, HEADLIGHTSTAY, HEADLIGHT
-
2291317-08020-00 BOLT, SOCKETBOLT, SOCKET
-
2392907-08200-00 WASHER (6TC)WASHER (6TC)
