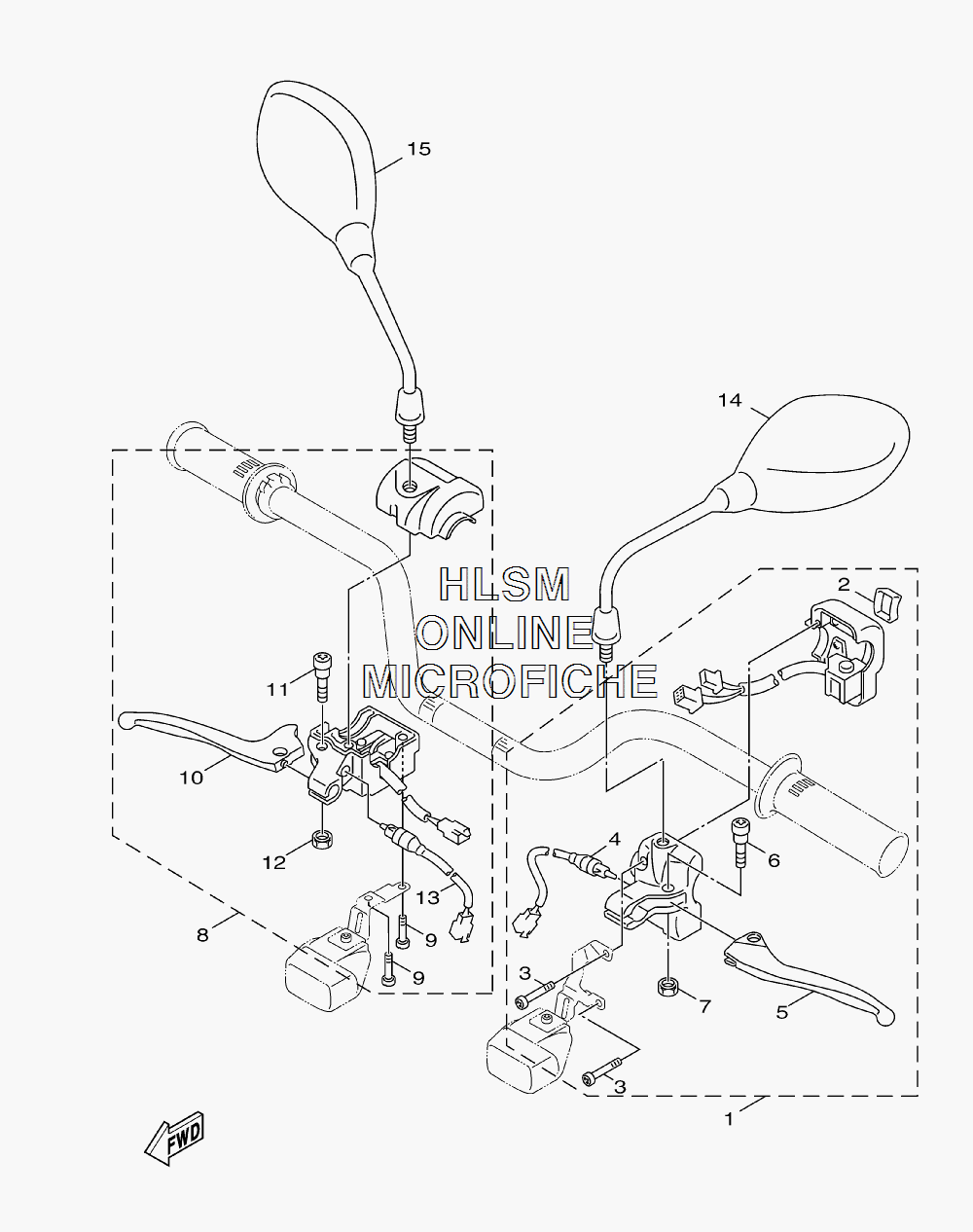

HANDLEBAR W/ SWITCHES - LEVERS для Yamaha C3 - 2008 года выпуска
-
№АртикулНазвание
-
13B3-H2910-00-00 LEVER HOLDER ASSY (LEFT)LEVER HOLDER ASSY (LEFT)
-
25SU-H357H-00-00 ...KNOB...KNOB
-
398507-05025-00 ...SCREW, PAN HEAD...SCREW, PAN HEAD
-
43B3-H3980-00-00 ...FRONT STOP SWITCH ASSY...FRONT STOP SWITCH ASSY
-
53B3-H3912-01-00 ...LEVER 1...LEVER 1
-
63XG-H3915-00-00 ...SCREW, LEVER FITTING...SCREW, LEVER FITTING
-
795707-05300-00 ...NUT, FLANGE (4GB)...NUT, FLANGE (4GB)
-
83B3-H2920-10-00 LEVER HOLDER ASSY (RIGHT)LEVER HOLDER ASSY (RIGHT)
-
998507-05045-00 ...SCREW, PAN HEAD...SCREW, PAN HEAD
-
103B3-H3922-01-00 ...LEVER 2...LEVER 2
-
113XG-H3915-00-00 ...SCREW, LEVER FITTING...SCREW, LEVER FITTING
-
1295707-05300-00 ...NUT, FLANGE (4GB)...NUT, FLANGE (4GB)
-
133B3-H3980-10-00 ...FRONT STOP SWITCH ASSY...FRONT STOP SWITCH ASSY
-
145SU-F6280-00-00 REAR VIEW MIRROR ASSY (LEFT)REAR VIEW MIRROR ASSY (LEFT)
-
155SU-F6290-00-00 REAR VIEW MIRROR ASSY (RIGHT)REAR VIEW MIRROR ASSY (RIGHT)
