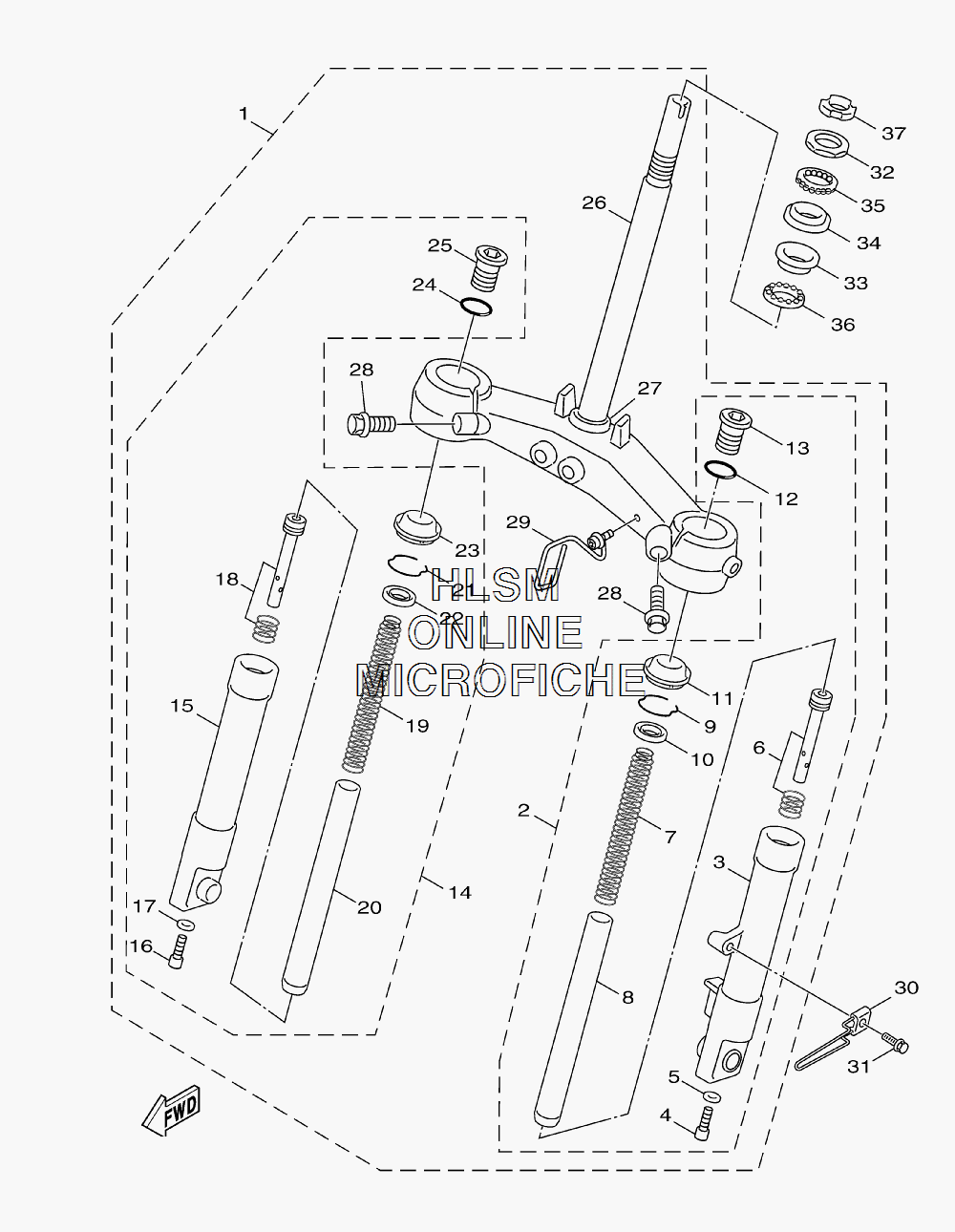

SUSPENSION - FRONT FORK для Yamaha C3 - 2008 года выпуска
-
№АртикулНазвание
-
13B3-F3100-10-00 FRONT FORK ASSYFRONT FORK ASSY
-
23B3-F3106-10-00 ...OUTER TUBE COMP. (L.H)...OUTER TUBE COMP. (L.H)
-
33B3-F3126-10-00 ...TUBE, OUTER (LEFT)...TUBE, OUTER (LEFT)
-
43GF-F3181-00-00 ...BOLT, HEXAGON SOCKET HEAD...BOLT, HEXAGON SOCKET HEAD
-
53GF-F3158-00-00 ...GASKET...GASKET
-
63B3-F3170-00-00 ...CYLINDER COMP., FRONT FORK...CYLINDER COMP., FRONT FORK
-
73B3-F3141-10-00 ...SPRING, FRONT FORK...SPRING, FRONT FORK
-
83B3-F3110-00-00 ...INNER TUBE COMP. 1...INNER TUBE COMP. 1
-
93NW-F3156-00-00 ...CLIP, OIL SEAL...CLIP, OIL SEAL
-
105SU-F3145-00-00 ...OIL SEAL...OIL SEAL
-
115SU-F3462-00-00 ...SEAL, STEERING...SEAL, STEERING
-
123GF-F3147-00-00 ...O-RING...O-RING
-
135FJ-F3356-00-00 ...BOLT 2...BOLT 2
-
143B3-F3107-10-00 ...OUTER TUBE COMP. (R.H)...OUTER TUBE COMP. (R.H)
-
153B3-F3136-10-00 ...TUBE, OUTER (RIGHT)...TUBE, OUTER (RIGHT)
-
163GF-F3181-00-00 ...BOLT, HEXAGON SOCKET HEAD...BOLT, HEXAGON SOCKET HEAD
-
173GF-F3158-00-00 ...GASKET...GASKET
-
183B3-F3170-00-00 ...CYLINDER COMP., FRONT FORK...CYLINDER COMP., FRONT FORK
-
193B3-F3141-10-00 ...SPRING, FRONT FORK...SPRING, FRONT FORK
-
203B3-F3110-00-00 ...INNER TUBE COMP. 1...INNER TUBE COMP. 1
-
213NW-F3156-00-00 ...CLIP, OIL SEAL...CLIP, OIL SEAL
-
225SU-F3145-00-00 ...OIL SEAL...OIL SEAL
-
235SU-F3462-00-00 ...SEAL, STEERING...SEAL, STEERING
-
243GF-F3147-00-00 ...O-RING...O-RING
-
255FJ-F3356-00-00 ...BOLT 2...BOLT 2
-
263B3-F3340-10-00 ...UNDER BRACKET COMP....UNDER BRACKET COMP.
-
2722F-23414-01-00 ...RACE, BALL 4...RACE, BALL 4
-
283GF-F3346-00-00 ...BOLT 1...BOLT 1
-
293B3-F3389-10-00 ...GUIDE, CABLE...GUIDE, CABLE
-
303B3-F3317-10-00 HOLDER, CABLEHOLDER, CABLE
-
3195807-06030-00 BOLT, FLANGEBOLT, FLANGE
-
323KJ-23411-01-00 RACE, BALL 1RACE, BALL 1
-
3322F-23412-01-00 RACE, BALL 2RACE, BALL 2
-
342E9-23412-00-00 RACE, BALL 2RACE, BALL 2
-
3522F-2341E-00-00 RETAINER, BALL BEARINGRETAINER, BALL BEARING
-
3693505-32042-00 BALL 5/32BALL 5/32
-
372E9-23454-00-00 NUT, FITTING 2NUT, FITTING 2
