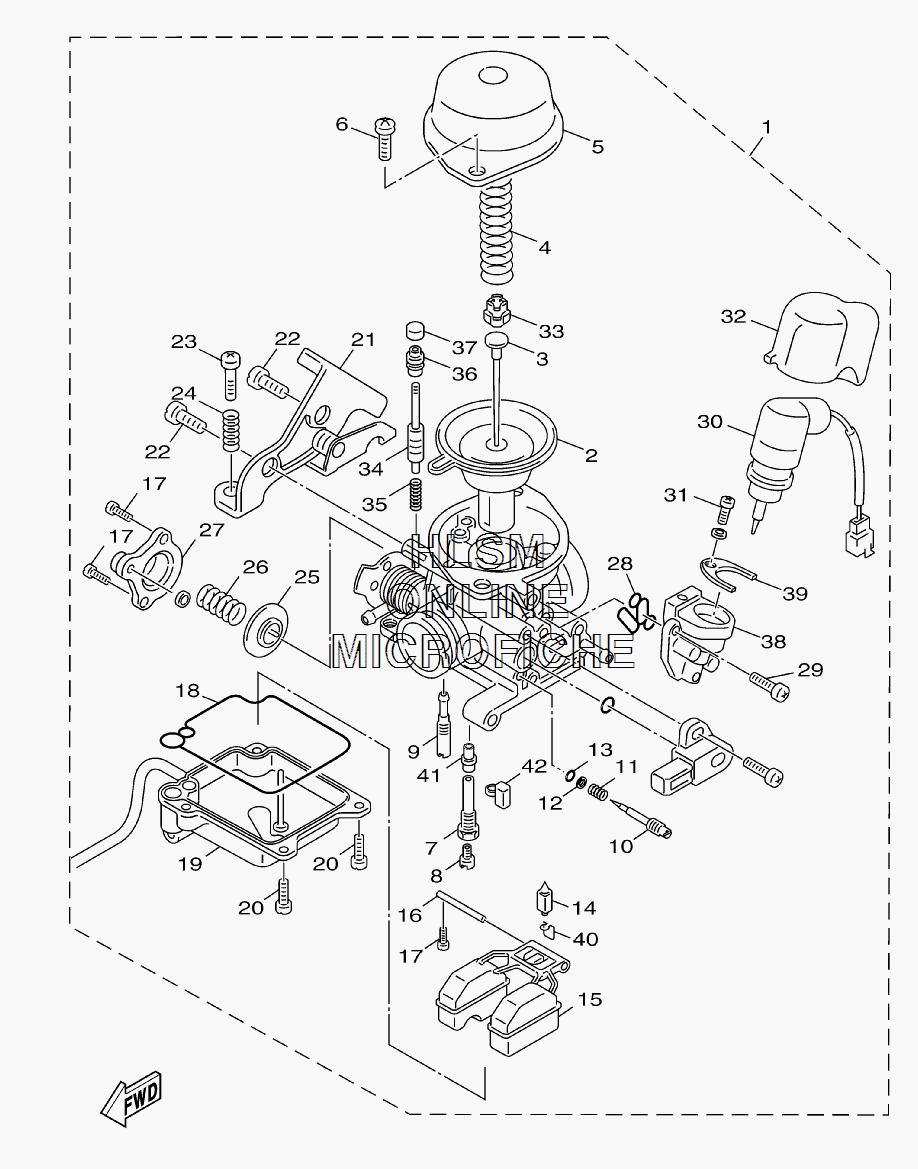

CARBURETOR ASSY. для Yamaha VINO 50 CLASSIC - 2008 года выпуска
-
№АртикулНазвание
-
13D1-E4901-00-00 CARBURETOR ASSY 1CARBURETOR ASSY 1
-
25ST-E4940-00-00 ...DIAPHRAGM ASSY...DIAPHRAGM ASSY
-
35ST-E4916-10-00 ...NEEDLE...NEEDLE
-
45ST-E4933-00-00 ...SPRING, DIAPHRAGM...SPRING, DIAPHRAGM
-
55ST-E4958-00-00 ...COVER, DIAPHRAGM...COVER, DIAPHRAGM
-
6688-14592-00-00 ...SCREW, PAN HEAD...SCREW, PAN HEAD
-
75ST-E414G-10-00 ...PIPE, MAIN BLEED...PIPE, MAIN BLEED
-
85ST-E4943-20-00 ...JET, MAIN (#82)...JET, MAIN (#82)
-
95ST-E4948-01-00 ...JET (#35)...JET (#35)
-
103D1-E4923-00-00 ...SCREW, PILOT...SCREW, PILOT
-
115ST-E4160-00-00 ...COIL, SPRING...COIL, SPRING
-
123TJ-14952-00-00 ...WASHER...WASHER
-
133TJ-14562-40-00 ...O-RING...O-RING
-
145ST-E4D40-00-00 ...VALVE ASSY...VALVE ASSY
-
155TL-E4985-00-00 ...FLOAT...FLOAT
-
16676-14548-00-00 ...PIN, FLOAT ARM...PIN, FLOAT ARM
-
17688-14592-00-00 ...SCREW, PAN HEAD...SCREW, PAN HEAD
-
185TL-E4984-00-00 ...GASKET, FLOAT CHAMBER...GASKET, FLOAT CHAMBER
-
195ST-E4980-00-00 ...BODY, FLOAT CHAMBER...BODY, FLOAT CHAMBER
-
2098502-04012-00 ...SCREW, PAN HEAD...SCREW, PAN HEAD
-
215ST-E4926-00-00 ...BRACKET, THROTTLE 1...BRACKET, THROTTLE 1
-
225TY-E4245-00-00 ...SCREW, GUIDE...SCREW, GUIDE
-
235ST-E4922-00-00 ...SCREW, THROTTLE...SCREW, THROTTLE
-
245TL-E4531-00-00 ...SPRING, ADJUST SCREW...SPRING, ADJUST SCREW
-
255GS-14940-00-00 ...DIAPHRAGM ASSY...DIAPHRAGM ASSY
-
265ST-E4275-00-00 ...SPRING...SPRING
-
275ST-E4280-00-00 ...COVER, CARBURETOR...COVER, CARBURETOR
-
285ST-E4147-00-00 ...O-RING...O-RING
-
295ST-E4429-00-00 ...SCREW...SCREW
-
305ST-E4370-10-00 ...PLUNGER STARTER ASSY...PLUNGER STARTER ASSY
-
315TY-E4871-00-00 ...SCREW...SCREW
-
325TY-E4967-00-00 ...COVER...COVER
-
335ST-E4936-00-00 ...SEAT, SPRING...SEAT, SPRING
-
345ST-E4853-00-00 ...PLUNGER...PLUNGER
-
355ST-E4D35-00-00 ...SPRING, PLUNGER...SPRING, PLUNGER
-
365ST-E4969-00-00 ...CAP...CAP
-
375ST-E4779-00-00 ...COLLAR...COLLAR
-
385ST-E4907-00-00 ...BODY, STARTER...BODY, STARTER
-
395ML-E4945-00-00 ...PLATE...PLATE
-
40663-14159-00-00 ...CLIP...CLIP
-
4124W-14193-00-00 ...PIPE...PIPE
-
425ST-14196-00-00 ...PIPE...PIPE
