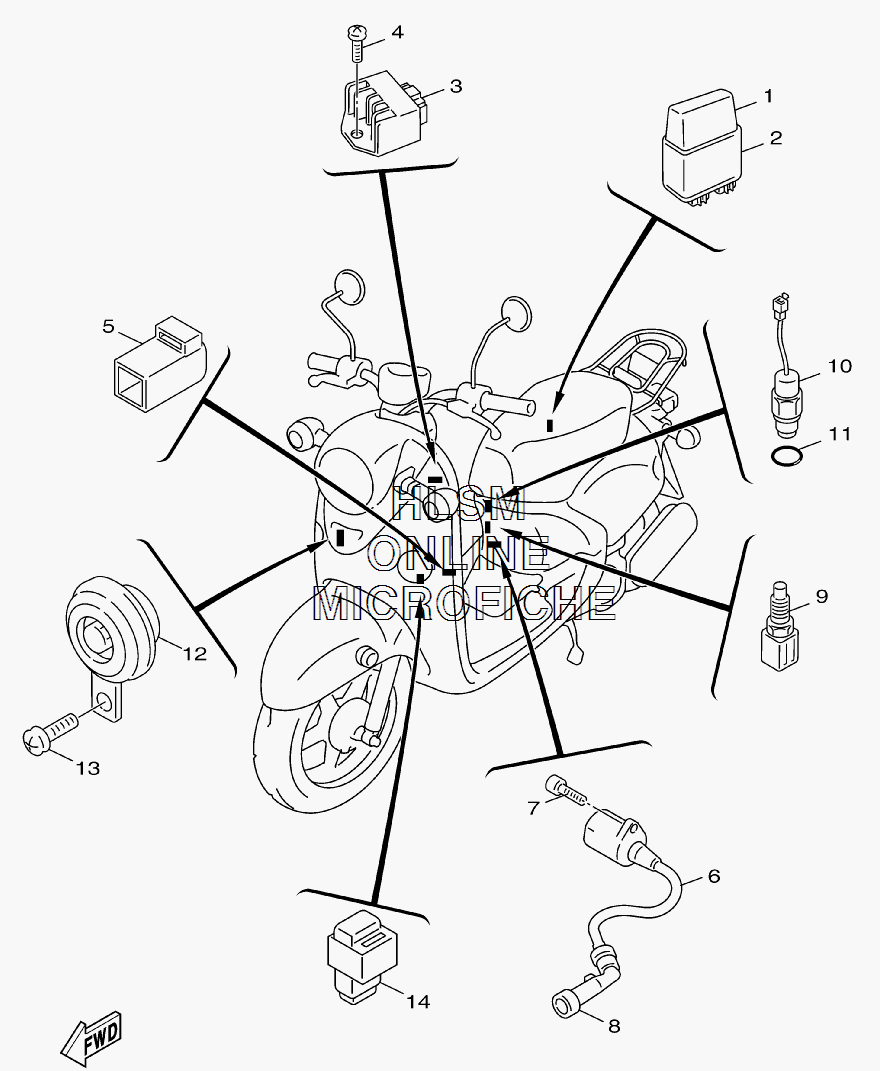

ELECTRICAL для Yamaha VINO 50 CLASSIC - 2008 года выпуска
-
№АртикулНазвание
-
11P4-H5540-00-00 C.D.I. UNIT ASSYC.D.I. UNIT ASSY
-
25ST-H5546-00-00 BANDBAND
-
34TE-H1960-00-00 RECTIFIER & REGULATOR ASSYRECTIFIER & REGULATOR ASSY
-
495027-06012-00 BOLT, FLANGEBOLT, FLANGE
-
55WC-H1940-00-00 STARTER RELAY ASSYSTARTER RELAY ASSY
-
65SU-H2310-00-00 IGNITION COIL ASSYIGNITION COIL ASSY
-
791317-05025-00 BOLT, SOCKET HEADBOLT, SOCKET HEAD
-
85ST-H2370-01-00 PLUG CAP ASSYPLUG CAP ASSY
-
95JJ-83591-00-00 THERMO UNITTHERMO UNIT
-
105ST-82560-01-00 THERMO SWITCH ASSYTHERMO SWITCH ASSY
-
1193210-14801-00 O-RINGO-RING
-
125ST-H3371-00-00 HORNHORN
-
1395027-06012-00 BOLT, FLANGEBOLT, FLANGE
-
145EB-H1950-10-00 RELAY ASSYRELAY ASSY
