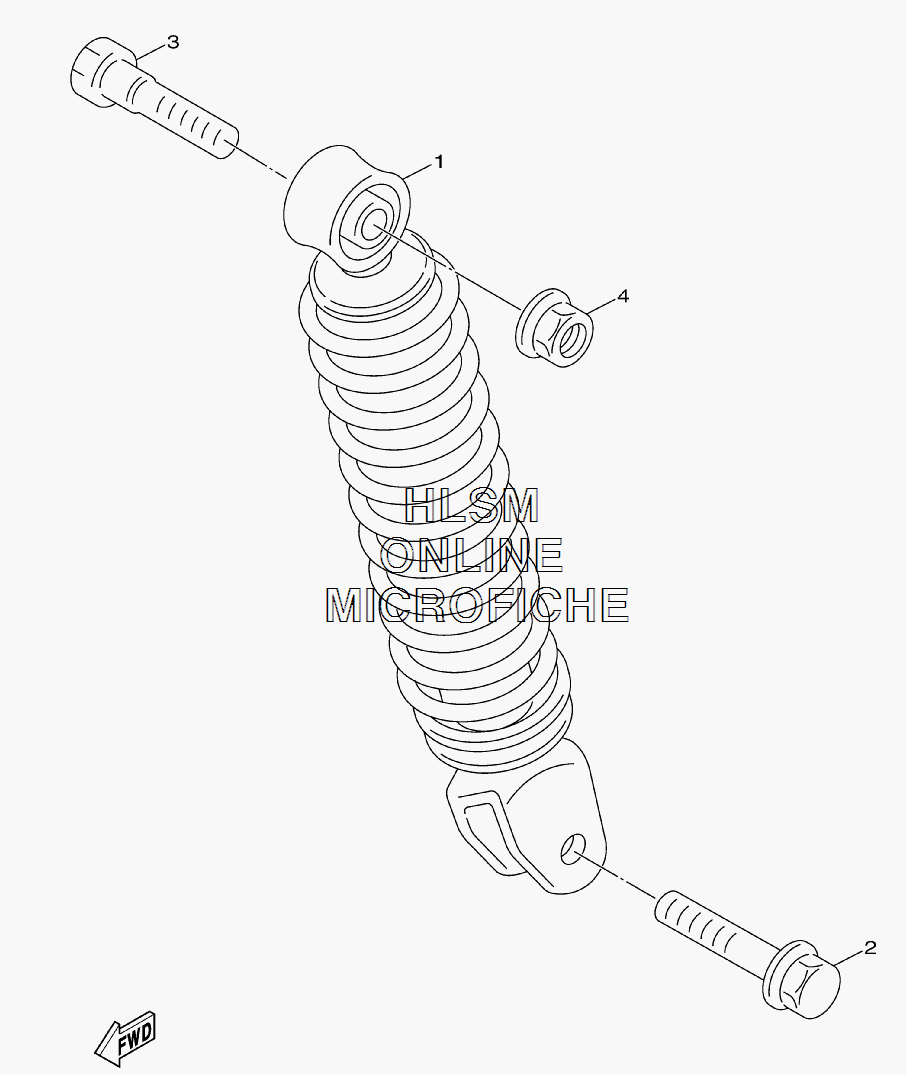

SUSPENSION - REAR SHOCK для Yamaha VINO 50 CLASSIC - 2008 года выпуска
-
№АртикулНазвание
-
15ST-F2210-00-00 SHOCK ABSORBER ASSY, REARSHOCK ABSORBER ASSY, REAR
-
290105-08121-00 BOLT, WASHER BASEDBOLT, WASHER BASED
-
390101-10875-00 BOLTBOLT
-
495707-10500-00 NUT, FLANGENUT, FLANGE
