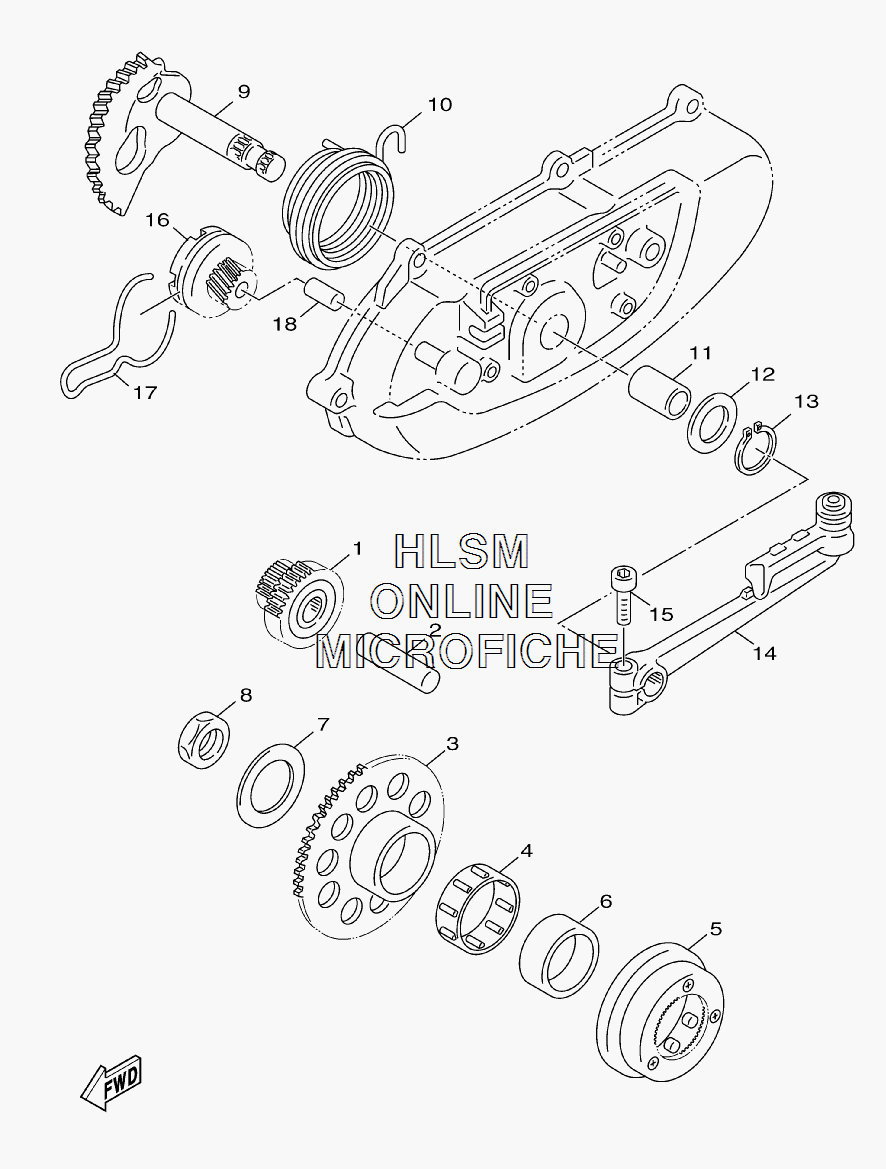

STARTER CLUTCH ASSY. для Yamaha VINO 50 CLASSIC - 2008 года выпуска
-
№АртикулНазвание
-
15ST-E5512-21-00 GEAR, IDLER 1GEAR, IDLER 1
-
25CA-E5521-00-00 SHAFT 1SHAFT 1
-
35ST-E5524-22-00 WHEEL, STARTERWHEEL, STARTER
-
493310-23047-00 BEARINGBEARING
-
55ST-E5570-00-00 STARTER CLUTCH ASSYSTARTER CLUTCH ASSY
-
65ST-E571H-00-00 COLLAR, STARTERCOLLAR, STARTER
-
75ST-E5613-00-00 WASHERWASHER
-
890170-22800-00 NUTNUT
-
95ST-E5601-00-00 KICK SHAFT ASSYKICK SHAFT ASSY
-
1090508-32609-00 SPRING, TORSIONSPRING, TORSION
-
1190380-15817-00 BUSH, SOLIDBUSH, SOLID
-
1290201-155G5-00 WASHER, PLATEWASHER, PLATE
-
1399009-15400-00 CIRCLIPCIRCLIP
-
145ST-E5620-00-00 KICK CRANK ASSYKICK CRANK ASSY
-
1591317-06025-00 BOLTBOLT
-
163XG-E5630-00-00 KICK PINION ASSYKICK PINION ASSY
-
1723Y-E5673-02-00 CLIPCLIP
-
183XG-E5659-00-00 SHAFTSHAFT
