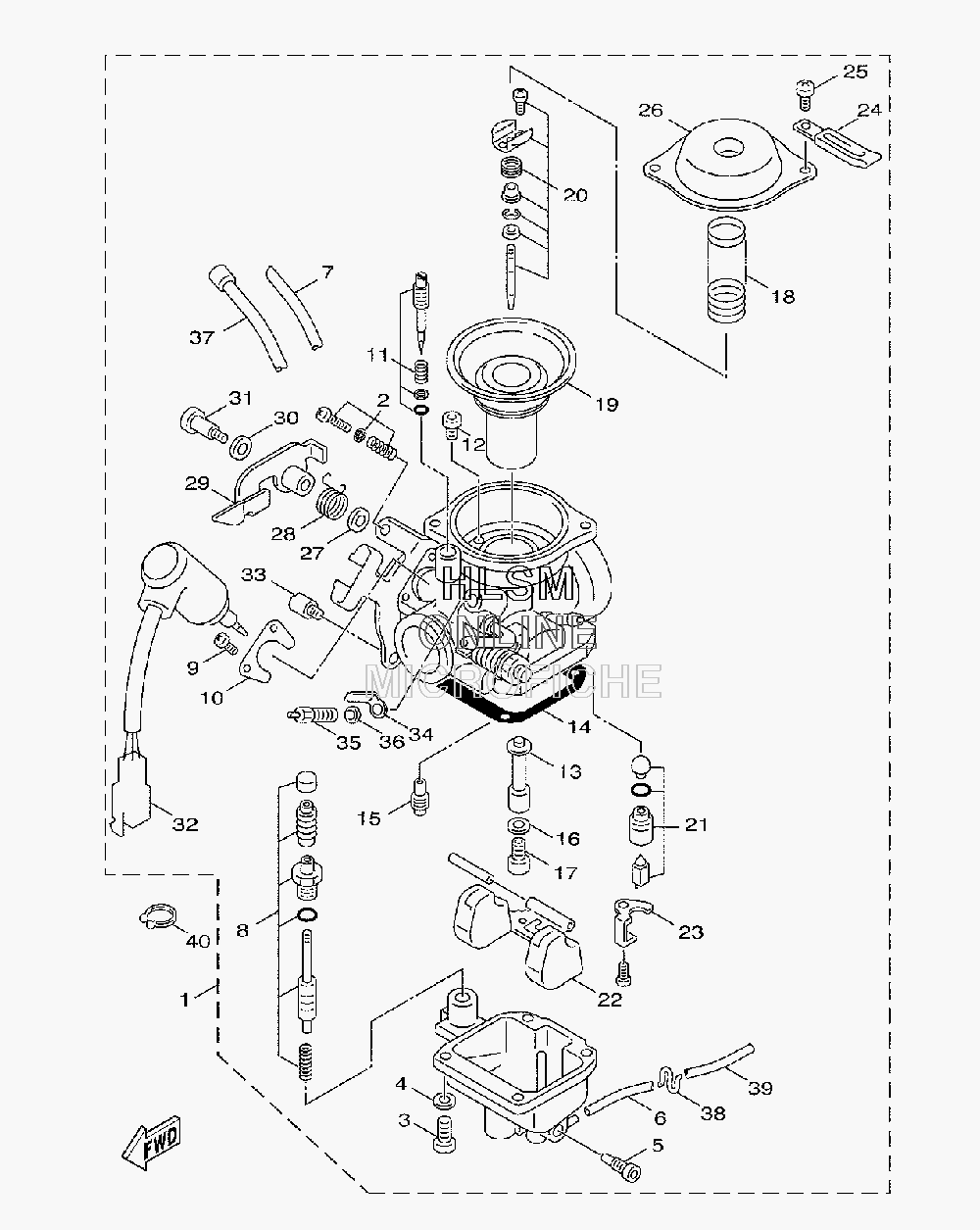

CARBURETOR ASSY. для Yamaha VINO 125 - 2009 года выпуска
-
№АртикулНазвание
-
15YR-E4901-00-00 CARBURETOR ASSY 1CARBURETOR ASSY 1
-
24CW-14103-00-00 THROTTLE SCREW SETTHROTTLE SCREW SET
-
398507-04014-00 SCREW, PAN HEADSCREW, PAN HEAD
-
492907-04100-00 WASHER, SPRINGWASHER, SPRING
-
54KP-14191-00-00 PLUG, DRAINPLUG, DRAIN
-
6353-14196-00-00 PIPE, OVER FLOW 1PIPE, OVER FLOW 1
-
75CY-14197-00-00 PIPEPIPE
-
84CW-14504-00-00 ROD SETROD SET
-
998507-04006-00 SCREW, PAN HEADSCREW, PAN HEAD
-
104CW-14243-00-00 PLATEPLATE
-
115NN-14105-00-00 PILOT SCREW SETPILOT SCREW SET
-
123G2-14231-32-00 JET, MAIN (#160)JET, MAIN (#160)
-
135NN-14141-34-00 NOZZLE, MAINNOZZLE, MAIN
-
144CW-14959-00-00 GASKETGASKET
-
15193-14142-22-00 JET, PILOT (#22.5)JET, PILOT (#22.5)
-
16137-14153-00-00 WASHER, MAIN JETWASHER, MAIN JET
-
17620-1423A-70-00 JET, MAIN (#97.5)JET, MAIN (#97.5)
-
183UR-14933-00-00 SPRING, DIAPHRAGMSPRING, DIAPHRAGM
-
194CW-14940-00-00 DIAPHRAGM ASSYDIAPHRAGM ASSY
-
205NN-1490J-00-00 NEEDLE SETNEEDLE SET
-
213KW-14107-20-00 NEEDLE VALVE SETNEEDLE VALVE SET
-
224G0-14985-00-00 FLOATFLOAT
-
233UH-14945-00-00 PLATEPLATE
-
243UH-14146-00-00 PLATEPLATE
-
2598507-05008-00 SCREW, PAN HEADSCREW, PAN HEAD
-
264CW-14958-00-00 COVER, DIAPHRAGMCOVER, DIAPHRAGM
-
274CW-14962-00-00 WASHERWASHER
-
285CY-14589-00-00 SPRINGSPRING
-
295CY-14582-00-00 LEVERLEVER
-
304CW-14117-00-00 WASHER, PLUG SCREWWASHER, PLUG SCREW
-
314CW-14115-00-00 PLUG, SCREWPLUG, SCREW
-
325YR-14171-00-00 PLUNGER, STARTERPLUNGER, STARTER
-
335CY-14216-00-00 SCREWSCREW
-
344DH-82103-00-00 TERMINAL 1TERMINAL 1
-
355FU-83790-00-00 HEATER ASSY (15W)HEATER ASSY (15W)
-
365CY-14951-00-00 WASHERWASHER
-
375NN-14987-00-00 HOSEHOSE
-
385YR-1410F-00-00 CONNECTORCONNECTOR
-
393XV-14349-20-00 PIPEPIPE
-
4090464-23811-00 CLAMPCLAMP
