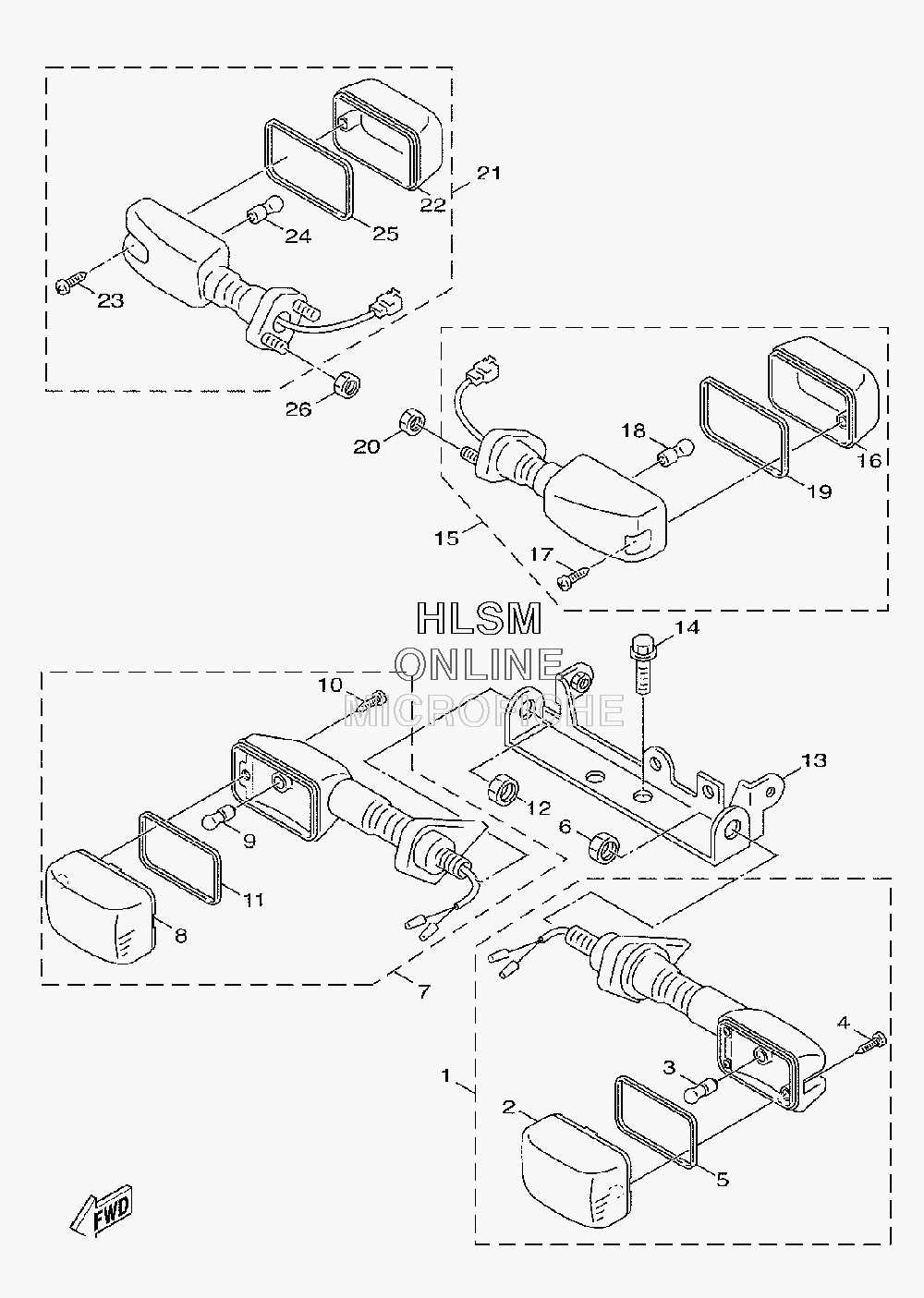

FLASHER LIGHT для Yamaha VINO 125 - 2009 года выпуска
-
№АртикулНазвание
-
15YR-H3310-01-00 FRONT FLASHER LIGHT ASSY 1FRONT FLASHER LIGHT ASSY 1
-
25PJ-H3312-00-00 LENS, FLASHERLENS, FLASHER
-
33D1-H3311-00-00 BULB, FLASHER (12V-10W)BULB, FLASHER (12V-10W)
-
497780-40614-00 SCREW, TAPPINGSCREW, TAPPING
-
55PJ-H3313-00-00 GASKET, FLASHER LENSGASKET, FLASHER LENS
-
695307-12600-00 NUTNUT
-
75YR-H3320-01-00 FRONT FLASHER LIGHT ASSY 2FRONT FLASHER LIGHT ASSY 2
-
85PJ-H3312-00-00 LENS, FLASHERLENS, FLASHER
-
93D1-H3311-00-00 BULB, FLASHER (12V-10W)BULB, FLASHER (12V-10W)
-
1097780-40614-00 SCREW, TAPPINGSCREW, TAPPING
-
115PJ-H3313-00-00 GASKET, FLASHER LENSGASKET, FLASHER LENS
-
1295307-12600-00 NUTNUT
-
135YR-H3318-00-00 STAY, FLASHER 1STAY, FLASHER 1
-
1495807-06012-00 BOLT, FLANGEBOLT, FLANGE
-
155YR-H3330-01-00 REAR FLASHER LIGHT ASSY 1REAR FLASHER LIGHT ASSY 1
-
165PJ-H3312-00-00 LENS, FLASHERLENS, FLASHER
-
1797780-40614-00 SCREW, TAPPINGSCREW, TAPPING
-
183D1-H3311-00-00 BULB, FLASHER (12V-10W)BULB, FLASHER (12V-10W)
-
195PJ-H3313-00-00 GASKET, FLASHER LENSGASKET, FLASHER LENS
-
2095707-06500-00 NUT, FLANGENUT, FLANGE
-
215YR-H3340-01-00 REAR FLASHER LIGHT ASSY 2REAR FLASHER LIGHT ASSY 2
-
225PJ-H3312-00-00 LENS, FLASHERLENS, FLASHER
-
2397780-40614-00 SCREW, TAPPINGSCREW, TAPPING
-
243D1-H3311-00-00 BULB, FLASHER (12V-10W)BULB, FLASHER (12V-10W)
-
255PJ-H3313-00-00 GASKET, FLASHER LENSGASKET, FLASHER LENS
-
2695707-06500-00 NUT, FLANGENUT, FLANGE
