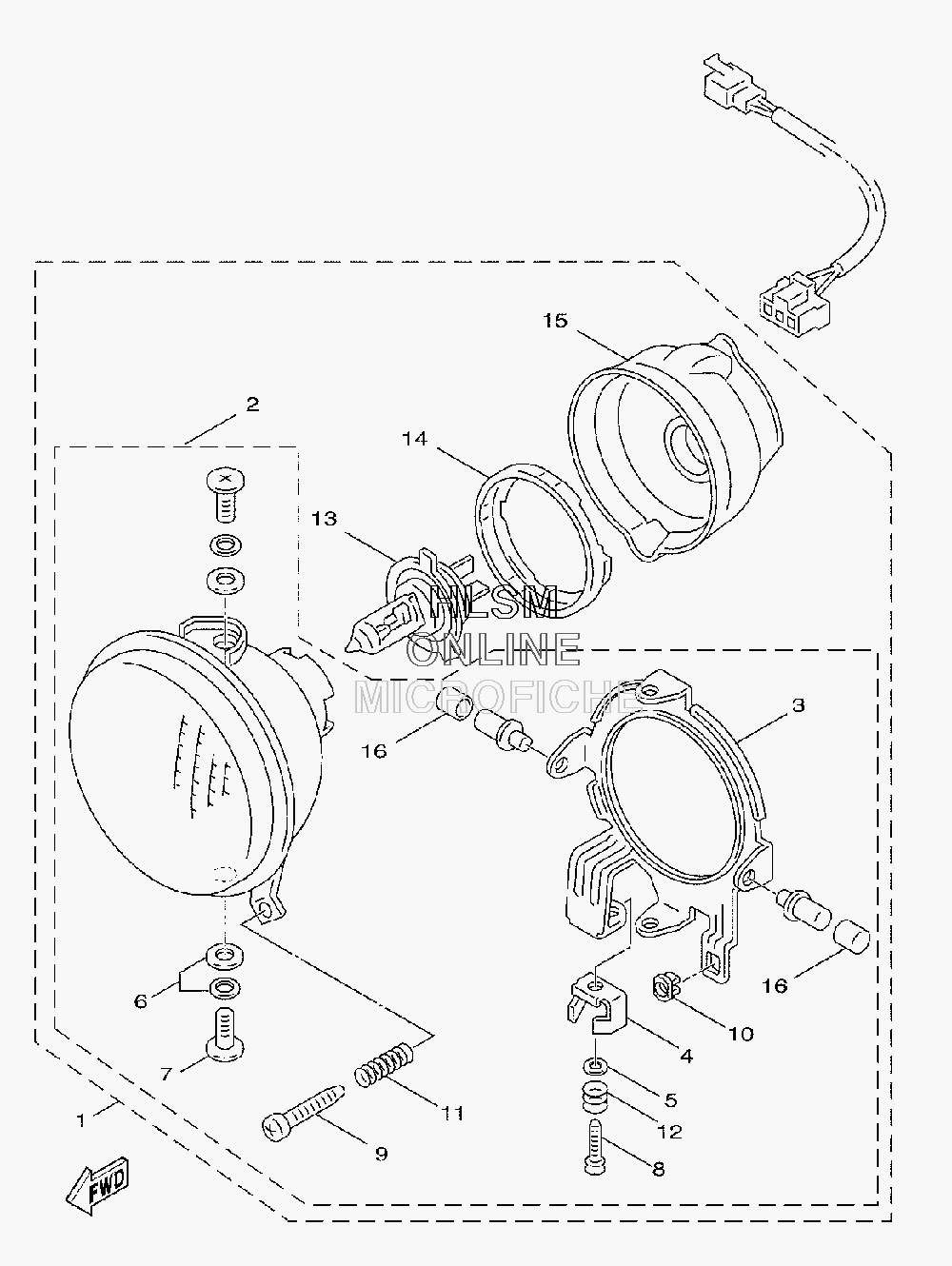

HEADLIGHT ASSY. для Yamaha VINO 125 - 2009 года выпуска
-
№АртикулНазвание
-
15YR-H4310-00-00 HEADLIGHT UNIT ASSYHEADLIGHT UNIT ASSY
-
25YR-H4320-00-00 LENS ASSYLENS ASSY
-
35YR-H4318-00-00 STAY, HEADLIGHT 1STAY, HEADLIGHT 1
-
45YR-H4334-00-00 NUT, ADJUSTINGNUT, ADJUSTING
-
55YR-H4344-00-00 WASHER, PLAINWASHER, PLAIN
-
65YR-H4344-10-00 WASHER, PLAINWASHER, PLAIN
-
75PJ-H4325-00-00 SCREW, RIM FITTINGSCREW, RIM FITTING
-
85YR-H4331-00-00 SCREW, RIM ADJUSTINGSCREW, RIM ADJUSTING
-
95YR-H4331-10-00 SCREW, RIM ADJUSTINGSCREW, RIM ADJUSTING
-
105PJ-H431T-00-00 METAL, ADJUSTINGMETAL, ADJUSTING
-
115YR-H4332-00-00 SPRING, SCREWSPRING, SCREW
-
125YR-H4332-10-00 SPRING, SCREWSPRING, SCREW
-
133YB-H4314-00-00 BULB, HEADLIGHT (12V-60/55W)BULB, HEADLIGHT (12V-60/55W)
-
145PJ-H4397-10-00 COVER, SOCKETCOVER, SOCKET
-
155YR-H4378-00-00 CAPCAP
-
165YR-H4345-00-00 DAMPER, HEADLIGHTDAMPER, HEADLIGHT
