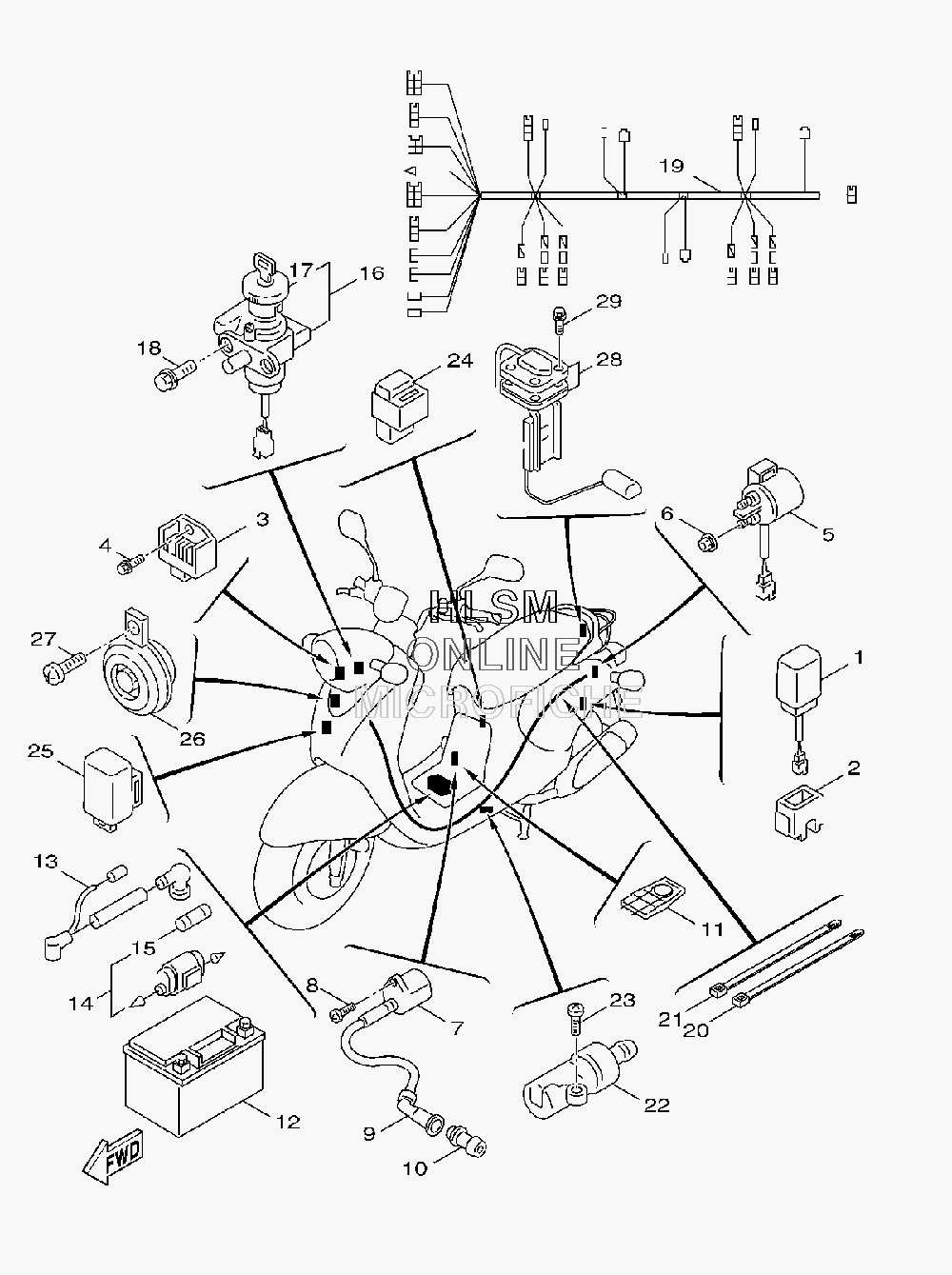

ELECTRICAL для Yamaha VINO 125 - 2009 года выпуска
-
№АртикулНазвание
-
15YR-H5540-00-00 C.D.I. UNIT ASSYC.D.I. UNIT ASSY
-
24KP-H5546-00-00 BANDBAND
-
35FA-H1960-00-00 RECTIFIER AND REGULATOR ASSYRECTIFIER AND REGULATOR ASSY
-
498507-06012-00 SCREW, PAN HEADSCREW, PAN HEAD
-
53UH-H1940-02-00 STARTER RELAY ASSYSTARTER RELAY ASSY
-
695307-06700-00 NUTNUT
-
75JS-H2310-00-00 IGNITION COIL ASSYIGNITION COIL ASSY
-
898507-06018-00 SCREW,PAN HEADSCREW,PAN HEAD
-
94TE-H2370-00-00 PLUG CAP ASSYPLUG CAP ASSY
-
104CW-H2372-00-00 SEAL, PLUG CAPSEAL, PLUG CAP
-
111AJ-82560-01-00 THERMO SWITCH ASSYTHERMO SWITCH ASSY
-
125YR-H2100-00-00 BATTERY ASSY (GTX7A-BS)BATTERY ASSY (GTX7A-BS)
-
135YR-H2115-00-00 WIRE, PLUS LEADWIRE, PLUS LEAD
-
145JS-H2150-00-00 FUSE HOLDER ASSYFUSE HOLDER ASSY
-
153N2-H2151-00-00 FUSEFUSE
-
165YR-H2501-00-00 MAIN SWITCH STEERING LOCKMAIN SWITCH STEERING LOCK
-
165YR-WH203-05-00 KEY SETKEY SET
-
175YR-H2552-00-00 CAP, SWITCHCAP, SWITCH
-
1898507-06012-00 SCREW, PAN HEADSCREW, PAN HEAD
-
195YR-H2590-00-00 WIRE HARNESS ASSYWIRE HARNESS ASSY
-
2090464-12812-00 CLAMPCLAMP
-
2190464-20809-00 CLAMPCLAMP
-
224DH-82566-00-00 SWITCH, SIDE STANDSWITCH, SIDE STAND
-
2390157-05079-00 SCREW, PAN HEADSCREW, PAN HEAD
-
241NT-H1940-20-00 STARTER RELAY ASSYSTARTER RELAY ASSY
-
255CA-H3350-10-00 FLASHER RELAY ASSYFLASHER RELAY ASSY
-
264VP-H3371-10-00 HORNHORN
-
2798507-06010-00 SCREW, PAN HEADSCREW, PAN HEAD
-
285YR-H5752-01-00 SENDER UNIT ASSY, FUEL METERSENDER UNIT ASSY, FUEL METER
-
2990119-05071-00 BOLT, WITH WASHERBOLT, WITH WASHER
