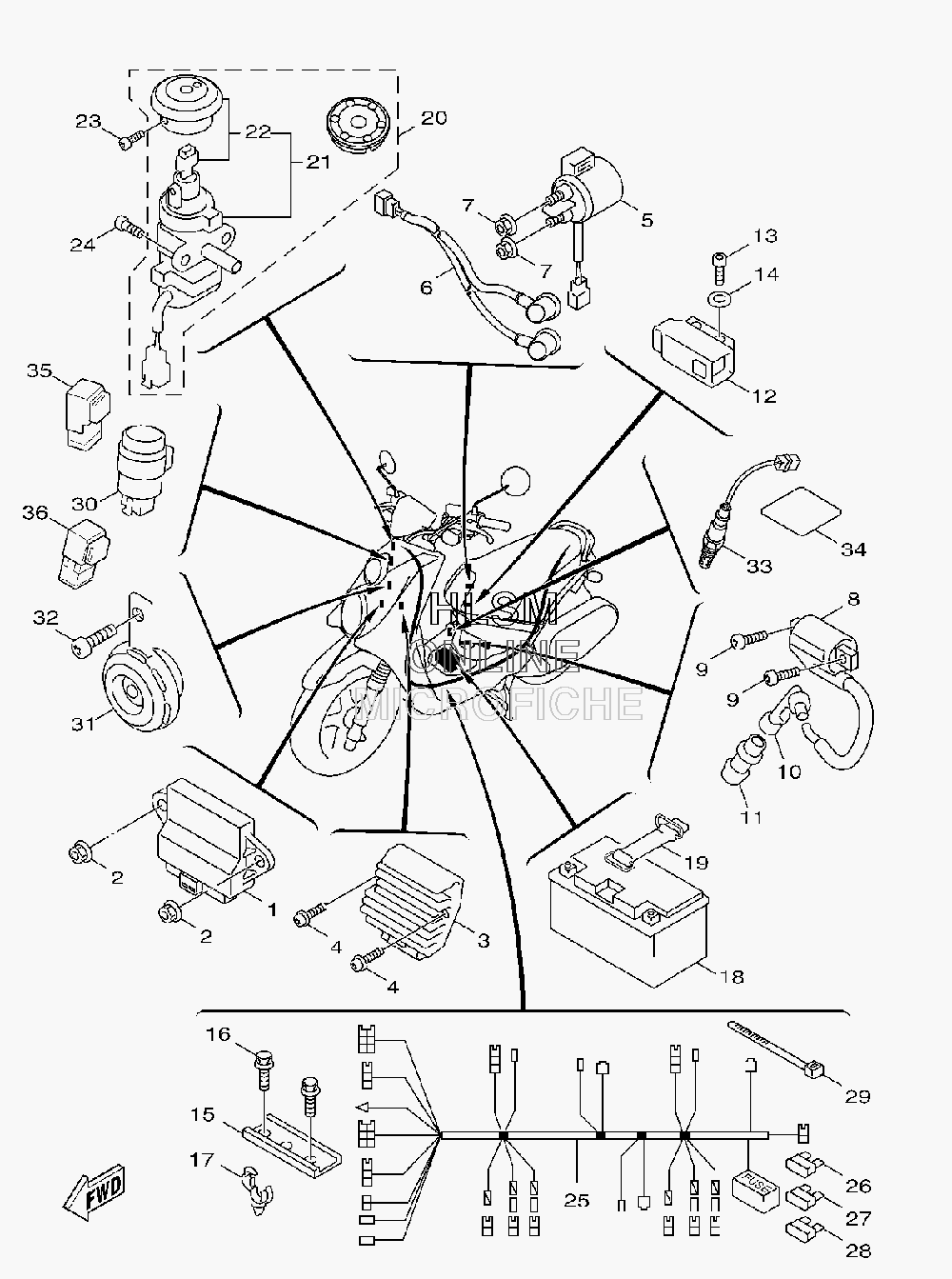

ELECTRICAL для Yamaha ZUMA 125 - 2009 года выпуска
-
№АртикулНазвание
-
132S-H591A-00-00 ENGINE CONTROL UNIT ASSYENGINE CONTROL UNIT ASSY
-
295707-05500-00 NUT, FLANGENUT, FLANGE
-
35ML-H1960-00-00 RECTIFIER AND REGULATOR ASSYRECTIFIER AND REGULATOR ASSY
-
495707-06500-00 NUT, FLANGENUT, FLANGE
-
55S9-H1940-00-00 STARTER RELAY ASSYSTARTER RELAY ASSY
-
65S9-H2541-00-00 WIRE, LEADWIRE, LEAD
-
795307-06700-00 NUTNUT
-
85S9-H2310-00-00 IGNITION COIL ASSYIGNITION COIL ASSY
-
998507-06018-00 SCREW,PAN HEADSCREW,PAN HEAD
-
101P5-H2370-00-00 PLUG CAP ASSYPLUG CAP ASSY
-
115ML-H2372-00-00 SEAL, PLUG CAPSEAL, PLUG CAP
-
125VU-82576-01-00 LEAN ANGLE SENSORLEAN ANGLE SENSOR
-
1391317-04025-00 BOLTBOLT
-
1490201-04325-00 WASHER, PLATEWASHER, PLATE
-
154P9-E546C-00-00 HOLDERHOLDER
-
1697527-06512-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
1790464-25803-00 CLAMPCLAMP
-
184P9-H2100-20-00 BATTERY ASSYBATTERY ASSY
-
195S9-H2131-00-00 BAND, BATTERYBAND, BATTERY
-
2032S-WH203-00-00 KEY SETKEY SET
-
2132S-H2501-00-00 MAIN SWITCH STEERING LOCKMAIN SWITCH STEERING LOCK
-
225S9-WH250-10-A0 SHUTTER AND BLANK KEYSHUTTER AND BLANK KEY
-
5S9-WH250-10-C0 SHUTTER AND BLANK KEYSHUTTER AND BLANK KEY
-
2390119-05004-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
2498507-06014-00 SCREW, PAN HEADSCREW, PAN HEAD
-
2532S-H2590-00-00 WIRE HARNESS ASSYWIRE HARNESS ASSY
-
261P5-H2151-00-00 FUSEFUSE
-
275MH-H2151-00-00 FUSEFUSE
-
285ML-H2151-10-00 FUSE (15A)FUSE (15A)
-
2990464-40801-00 CLAMPCLAMP
-
305XN-83350-00-00 FLASHER RELAY ASSYFLASHER RELAY ASSY
-
3124P-H3371-00-00 HORNHORN
-
3298507-06012-00 SCREW, PAN HEADSCREW, PAN HEAD
-
331B9-8592A-00-00 SENSOR, OXYGENSENSOR, OXYGEN
-
345FA-E4452-00-00 SEALSEAL
-
354HC-81950-00-00 RELAY ASSYRELAY ASSY
-
364HM-81950-20-00 RELAY ASSYRELAY ASSY
