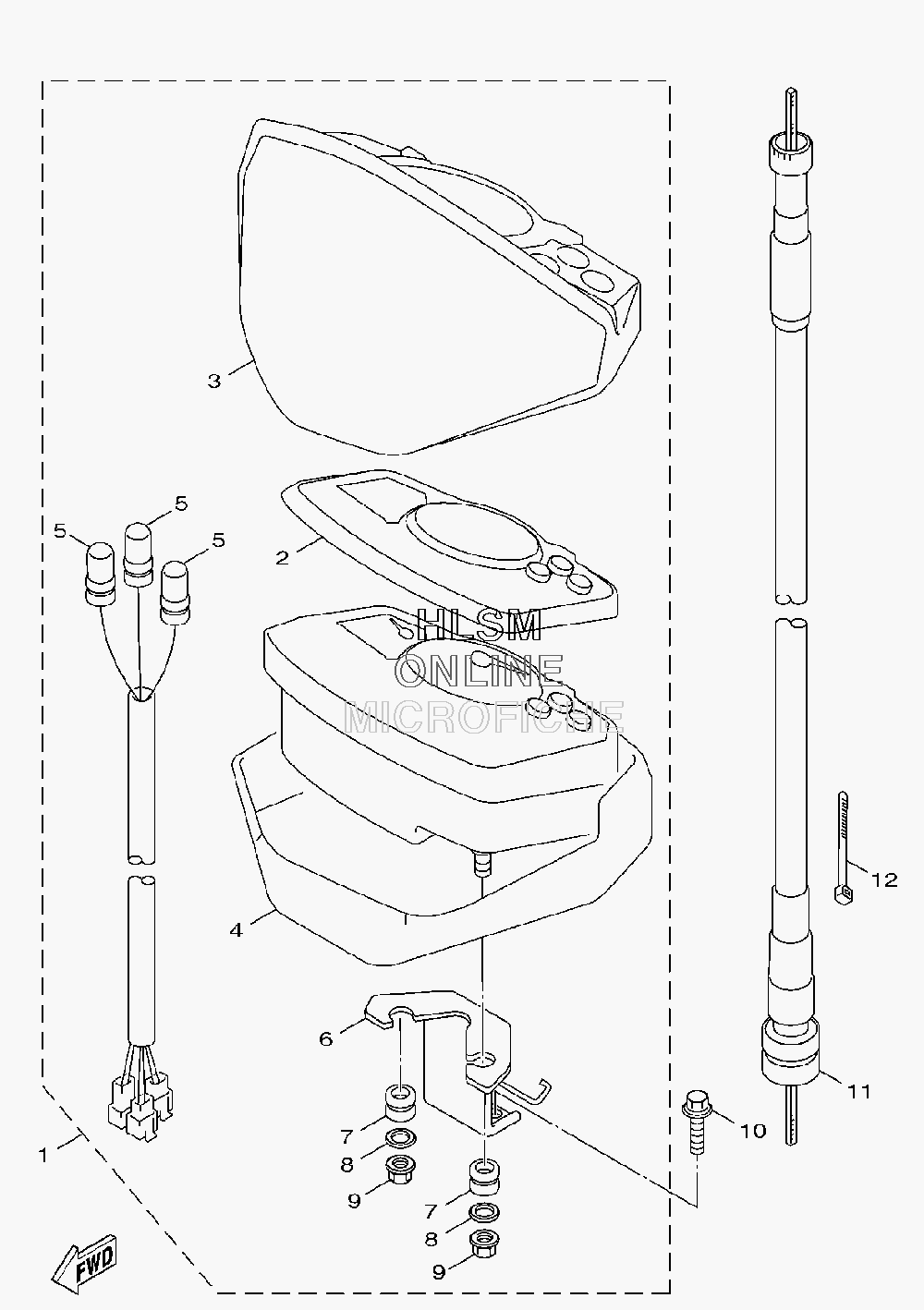

INSTRUMENT PANEL для Yamaha ZUMA 125 - 2009 года выпуска
-
№АртикулНазвание
-
132S-H3500-00-00 METER ASSYMETER ASSY
-
25S9-H353K-00-00 GLASS PLATEGLASS PLATE
-
35S9-H353E-00-00 COVER, SPEEDOMETERCOVER, SPEEDOMETER
-
45S9-H3507-00-00 CASE COMP, UNDERCASE COMP, UNDER
-
55JS-H3517-00-00 BULB (12V-1.7W)BULB (12V-1.7W)
-
65S9-H3519-00-00 BRACKET, METERBRACKET, METER
-
75ST-H3513-00-00 DAMPERDAMPER
-
85ST-H3663-00-00 WASHER, SPECIALWASHER, SPECIAL
-
95ST-H354P-00-00 NUTNUT
-
1095027-06012-00 BOLT, FLANGEBOLT, FLANGE
-
1132S-H3550-00-00 SPEEDOMETER CABLE ASSYSPEEDOMETER CABLE ASSY
-
1290464-26800-00 CLAMPCLAMP
