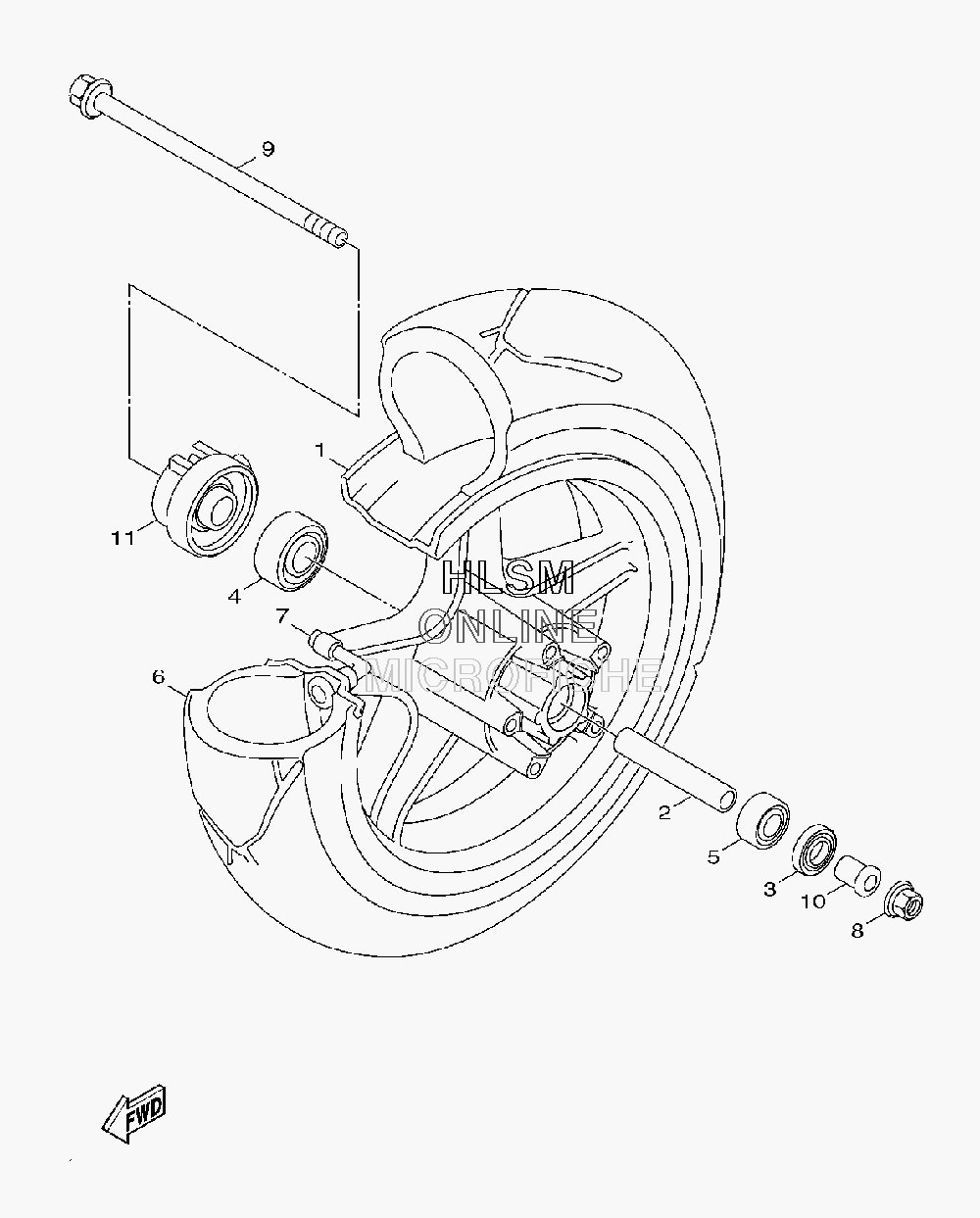

WHEEL - FRONT для Yamaha ZUMA 125 - 2009 года выпуска
-
№АртикулНазвание
-
15ML-F5168-20-33 CAST WHEEL, FRONT YBCAST WHEEL, FRONT YB
-
25ML-F5183-00-00 COLLAR, WHEELCOLLAR, WHEEL
-
393102-17853-00 OIL SEALOIL SEAL
-
493306-201Y7-00 BEARINGBEARING
-
593306-301YA-00 BEARINGBEARING
-
694112-12805-00 TIRE (120/70-12 51L) KENDATIRE (120/70-12 51L) KENDA
-
793900-00814-00 VALVE, RIM (PVR70)VALVE, RIM (PVR70)
-
895607-12200-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
-
95S9-F5181-00-00 AXLE, WHEELAXLE, WHEEL
-
1090387-125J1-00 COLLARCOLLAR
-
1132S-F5190-00-00 GEAR UNIT ASSYGEAR UNIT ASSY
