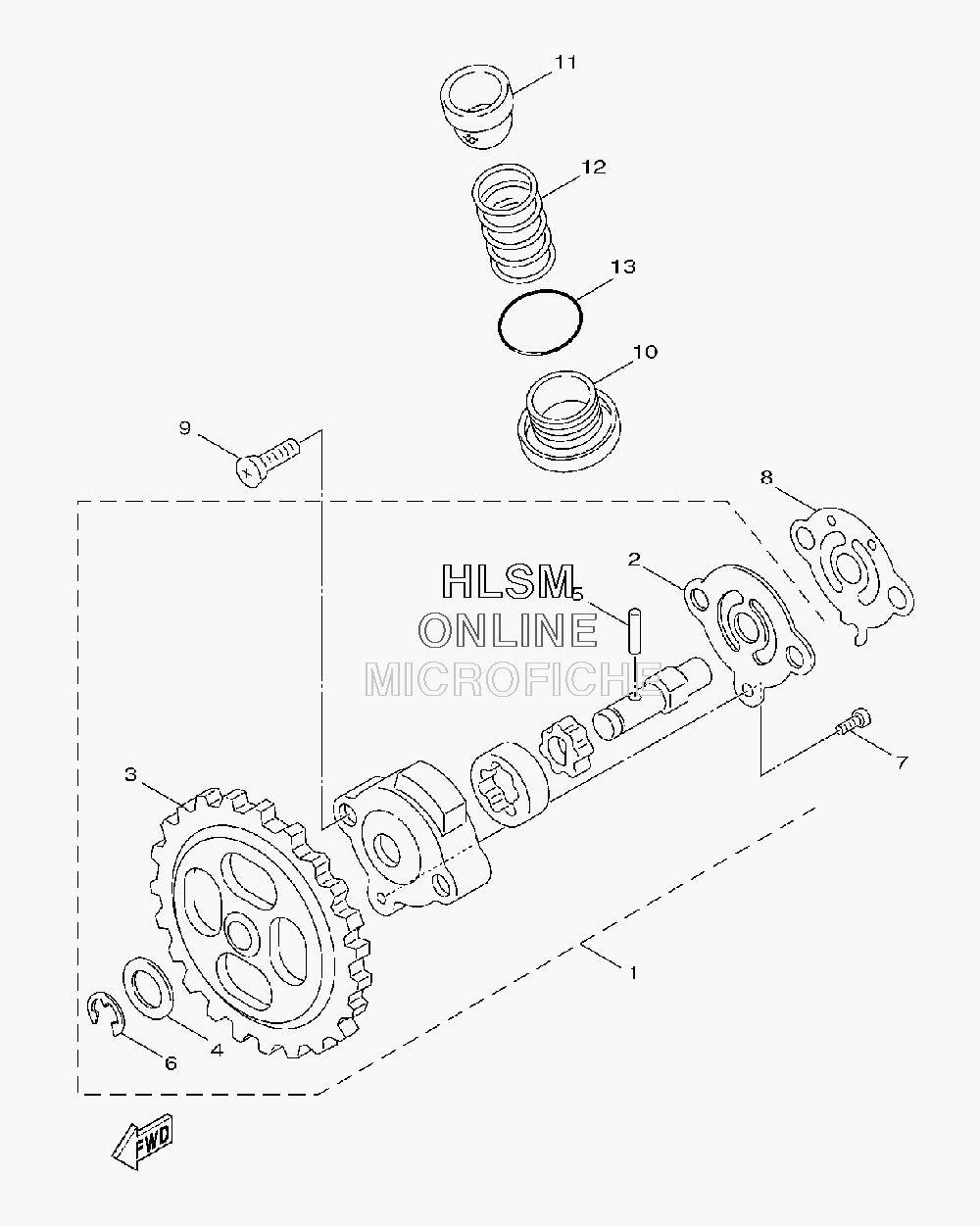

OIL PUMP для Yamaha ZUMA 125 - 2009 года выпуска
-
№АртикулНазвание
-
11P3-E3300-00-00 OIL PUMP ASSYOIL PUMP ASSY
-
21P3-E3316-00-00 COVER, PUMPCOVER, PUMP
-
31P3-E3325-00-00 GEAR, PUMP DRIVENGEAR, PUMP DRIVEN
-
41P3-E3318-00-00 WASHERWASHER
-
51P3-E3362-00-00 ROLLERROLLER
-
61P3-E3364-00-00 CIRCLIPCIRCLIP
-
75ST-E3365-00-00 SCREW PAN HEADSCREW PAN HEAD
-
85ML-E3475-00-00 GASKETGASKET
-
998507-05020-00 SCREW, PAN HEADSCREW, PAN HEAD
-
105ML-E5351-20-00 PLUG, DRAINPLUG, DRAIN
-
115ML-E3411-00-00 STRAINER, OILSTRAINER, OIL
-
1290501-16004-00 SPRING, COMPRESSIONSPRING, COMPRESSION
-
1393210-29800-00 O-RINGO-RING
