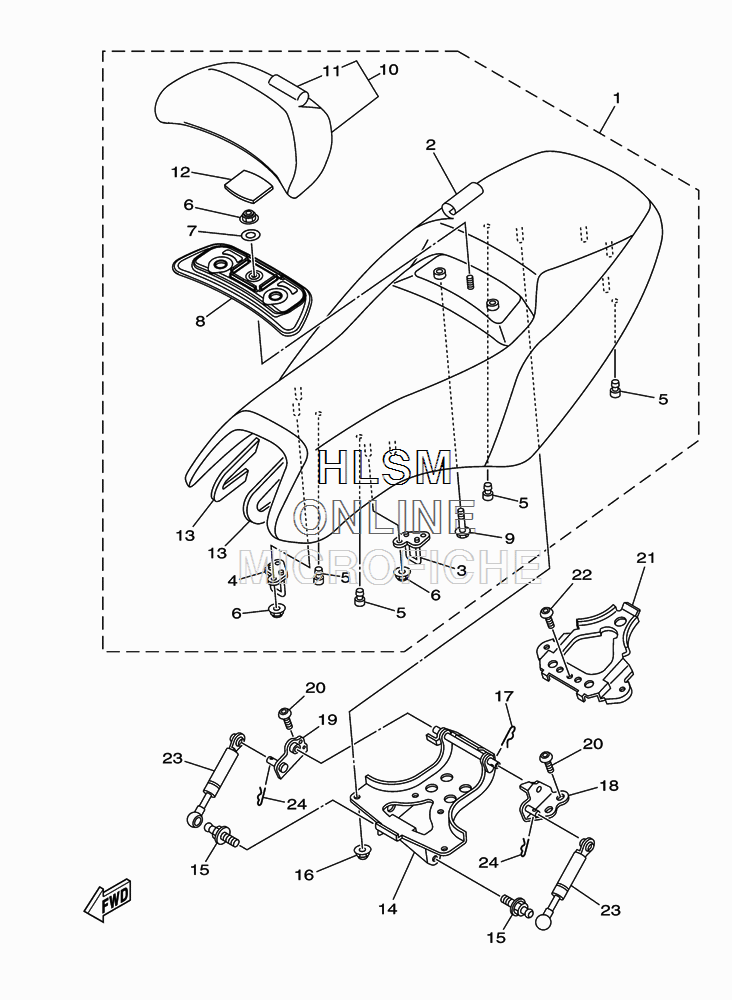

SEAT ASSY. для Yamaha TMAX - 2010 года выпуска
-
№АртикулНазвание
-
14B5-24730-50-00 DOUBLE SEAT ASSYDOUBLE SEAT ASSY
-
24B5-24731-00-00 COVER, SEATCOVER, SEAT
-
34B5-24718-20-00 BRACKET, SEATBRACKET, SEAT
-
44B5-24728-20-00 BRACKET, SEATBRACKET, SEAT
-
55SL-24723-00-00 DAMPER, SEATDAMPER, SEAT
-
695602-06200-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
-
74CY-24722-00-00 WASHER, SPECIALWASHER, SPECIAL
-
84B5-24752-00-00 PLATEPLATE
-
995802-06025-00 BOLT, FLANGEBOLT, FLANGE
-
104B5-24790-00-00 SEAT BACK ASSYSEAT BACK ASSY
-
114B5-24791-00-00 COVER, SEAT BACKCOVER, SEAT BACK
-
124B5-24724-00-00 DAMPER, SEATDAMPER, SEAT
-
134B5-24723-00-00 DAMPER, SEATDAMPER, SEAT
-
144B5-24726-00-00 HINGE, SEATHINGE, SEAT
-
154B5-2474E-00-00 ARMARM
-
1690176-06016-00 NUT, CAPNUT, CAP
-
1790468-18121-00 CLIPCLIP
-
184B5-24769-00-00 HINGE, SEATHINGE, SEAT
-
194B5-24779-00-00 HINGE, SEAT 2HINGE, SEAT 2
-
2092012-08020-00 BOLT, BUTTON HEADBOLT, BUTTON HEAD
-
214B5-2475U-00-00 BRACKET, TAIL COVERBRACKET, TAIL COVER
-
2292012-08020-00 BOLT, BUTTON HEADBOLT, BUTTON HEAD
-
234B5-2478G-10-00 STOPPERSTOPPER
-
2490468-16001-00 CLIPCLIP
