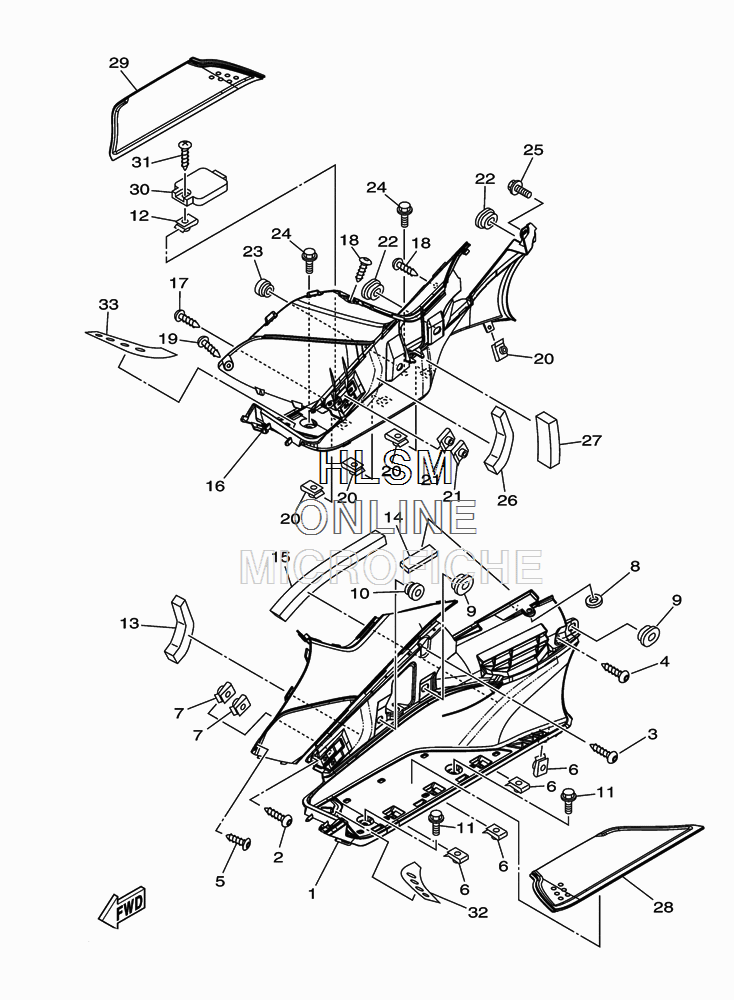

STAND W/ FOOTREST 2 для Yamaha TMAX - 2010 года выпуска
-
№АртикулНазвание
-
14B5-27481-00-00 BOARD, FOOTRESTBOARD, FOOTREST
-
297702-50016-00 SCREW, TAPPINGSCREW, TAPPING
-
397702-50016-00 SCREW, TAPPINGSCREW, TAPPING
-
497702-50016-00 SCREW, TAPPINGSCREW, TAPPING
-
590167-05076-00 SCREW, TAPPINGSCREW, TAPPING
-
690183-05042-00 NUT, SPRINGNUT, SPRING
-
790183-060A6-00 NUT, SPRINGNUT, SPRING
-
84B5-27485-00-00 SEALSEAL
-
990480-01558-00 GROMMETGROMMET
-
1090480-13567-00 GROMMETGROMMET
-
1190119-06209-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
1290183-05042-00 NUT, SPRINGNUT, SPRING
-
134B5-28217-00-00 DAMPER 1DAMPER 1
-
144B5-28247-00-00 DAMPER 4DAMPER 4
-
154B5-28267-00-00 DAMPER 5DAMPER 5
-
164B5-27488-00-00 BOARD, FOOTREST 2BOARD, FOOTREST 2
-
1797702-50016-00 SCREW, TAPPINGSCREW, TAPPING
-
1897702-50016-00 SCREW, TAPPINGSCREW, TAPPING
-
1990167-05076-00 SCREW, TAPPINGSCREW, TAPPING
-
2090183-05042-00 NUT, SPRINGNUT, SPRING
-
2190183-060A6-00 NUT, SPRINGNUT, SPRING
-
2290480-01558-00 GROMMETGROMMET
-
2390480-13567-00 GROMMETGROMMET
-
2490119-06209-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
2590119-06235-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
264B5-28217-00-00 DAMPER 1DAMPER 1
-
274B5-28227-00-00 DAMPER 2DAMPER 2
-
284B5-27483-00-00 MAT 1MAT 1
-
294B5-27484-00-00 MAT 2MAT 2
-
305GJ-27463-00-00 COVER 2COVER 2
-
3197702-50016-00 SCREW, TAPPINGSCREW, TAPPING
-
324B5-27451-00-00 FOOTRESTFOOTREST
-
334B5-27461-00-00 FOOTRESTFOOTREST
