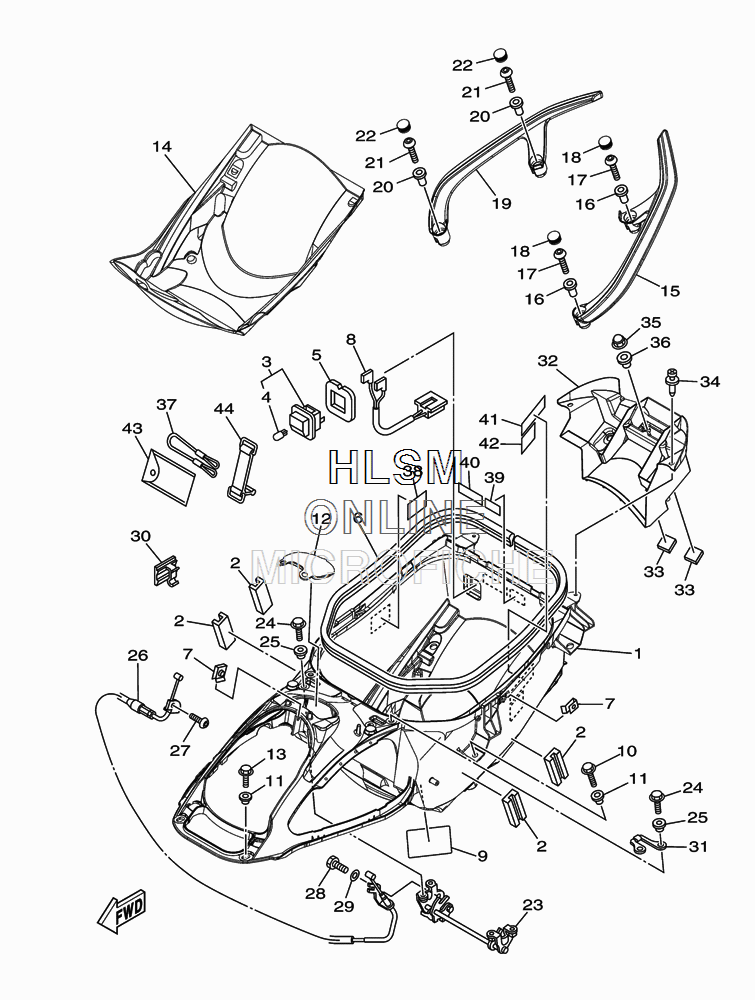

TRUNK - REAR для Yamaha TMAX - 2010 года выпуска
-
№АртикулНазвание
-
14B5-2473R-01-00 BOX 1BOX 1
-
24B5-24737-00-00 DAMPER, SEATDAMPER, SEAT
-
34HC-84770-00-00 LIGHT, ACCESORYLIGHT, ACCESORY
-
44HC-84347-00-00 BULB (12V-2W)BULB (12V-2W)
-
55GJ-2839M-00-00 SEAL, BOX 2SEAL, BOX 2
-
64B5-2173M-00-00 SEAL 3SEAL 3
-
790183-05042-00 NUT, SPRINGNUT, SPRING
-
84B5-82583-00-00 WIRE, SUB-LEADWIRE, SUB-LEAD
-
91D6-22358-00-00 SEAL 1SEAL 1
-
1095822-06020-00 BOLT, FLANGEBOLT, FLANGE
-
1190387-06170-00 COLLARCOLLAR
-
124B5-2482H-00-00 CAPCAP
-
1395022-06014-00 BOLT, FLANGEBOLT, FLANGE
-
144B5-24747-00-00 DAMPER, SEATDAMPER, SEAT
-
154B5-2474A-00-WG ASSIST, GRIPASSIST, GRIP
-
1690387-08068-00 COLLARCOLLAR
-
1792012-08035-00 BOLT, BUTTON HEADBOLT, BUTTON HEAD
-
184B5-2476U-00-00 PROTECTOR,1PROTECTOR,1
-
194B5-2474W-00-WG ASSIST,GRIP 2ASSIST,GRIP 2
-
2090387-08068-00 COLLARCOLLAR
-
2192012-08035-00 BOLT, BUTTON HEADBOLT, BUTTON HEAD
-
224B5-2476U-00-00 PROTECTOR,1PROTECTOR,1
-
234B5-24780-20-00 SEAT LOCK ASSYSEAT LOCK ASSY
-
2495822-06016-00 BOLT, FLANGEBOLT, FLANGE
-
2590387-06170-00 COLLARCOLLAR
-
264B5-2478D-00-00 SEAT LOCK CABLE ASSYSEAT LOCK CABLE ASSY
-
2792012-05010-00 BOLT, BUTTON HEADBOLT, BUTTON HEAD
-
2897002-05010-00 BOLTBOLT
-
2992902-05600-00 WASHER, PLATEWASHER, PLATE
-
3090464-07002-00 CLAMPCLAMP
-
314B5-2475K-00-00 BRACKET 3BRACKET 3
-
324B5-2163A-00-00 COVER, REAR FENDER 1COVER, REAR FENDER 1
-
332TV-21639-00-00 DAMPER 2DAMPER 2
-
3490269-06081-00 RIVETRIVET
-
3590176-06017-00 NUT, CROWNNUT, CROWN
-
3690560-08066-00 SPACERSPACER
-
374B5-21398-10-00 HANGER, HELMETHANGER, HELMET
-
385VU-21668-00-00 LABEL, TIRELABEL, TIRE
-
393LD-24877-A0-00 LABEL, CAUTIONLABEL, CAUTION
-
403JJ-28446-A1-00 LABEL, CAUTIONLABEL, CAUTION
-
414B5-2176P-10-00 PLATE, EPA U50 1PLATE, EPA U50 1
-
424B5-21686-00-00 PLATE, ROUTING 2PLATE, ROUTING 2
-
434B5-28100-10-00 TOOL KITTOOL KIT
-
443TJ-82131-00-00 BAND, BATTERYBAND, BATTERY
