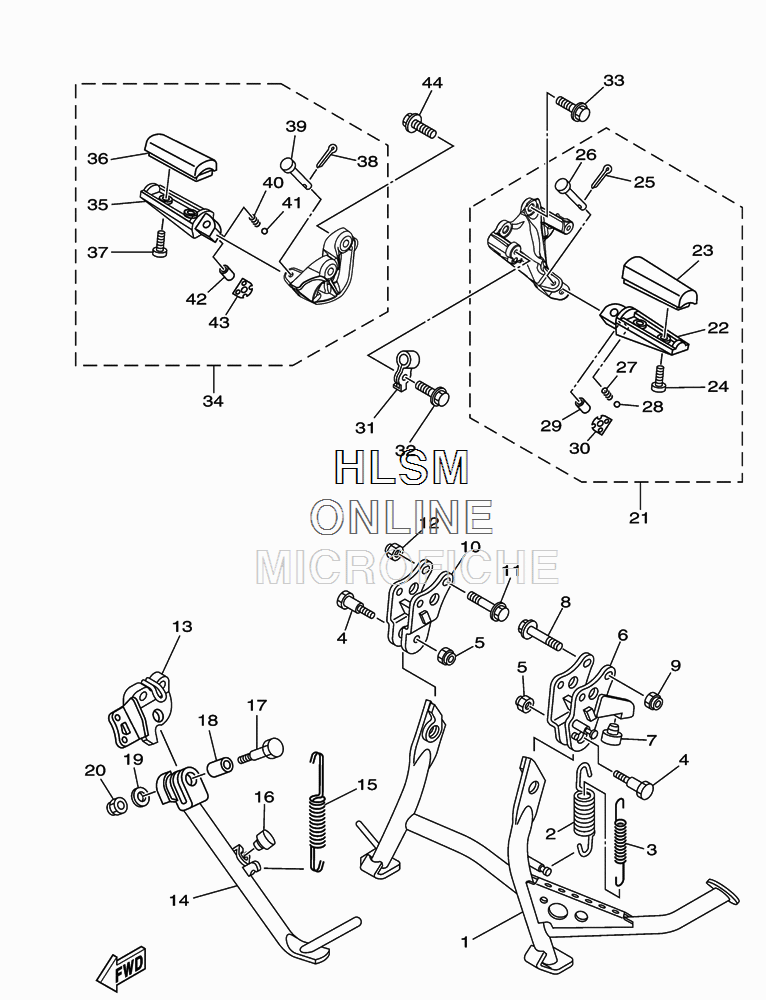

STAND W/ FOOTREST для Yamaha TMAX - 2010 года выпуска
-
№АртикулНазвание
-
14B5-27111-00-00 STAND, MAINSTAND, MAIN
-
290506-40508-00 SPRING, TENSIONSPRING, TENSION
-
390506-23509-00 SPRING, TENSIONSPRING, TENSION
-
490109-10029-00 BOLTBOLT
-
590185-10022-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
-
64B5-27151-00-00 BRACKET, MAIN STANDBRACKET, MAIN STAND
-
74X4-27114-00-00 STOPPER, MAIN STANDSTOPPER, MAIN STAND
-
890105-10283-00 BOLT, FLANGEBOLT, FLANGE
-
990185-10022-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
-
104B5-27152-00-00 BRACKET, MAIN STAND 2BRACKET, MAIN STAND 2
-
1190105-10283-00 BOLT, FLANGEBOLT, FLANGE
-
1290185-10022-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
-
134B5-27321-00-00 BRACKET, SIDE STANDBRACKET, SIDE STAND
-
144B5-27311-10-00 STAND, SIDESTAND, SIDE
-
1590506-20027-00 SPRING, TENSIONSPRING, TENSION
-
164X4-27114-00-00 STOPPER, MAIN STANDSTOPPER, MAIN STAND
-
1790101-10025-00 BOLTBOLT
-
1890387-10018-00 COLLARCOLLAR
-
1992902-10200-00 WASHERWASHER
-
2095602-10100-00 NUT, UNUT, U
-
214B5-27430-00-00 REAR FOOTREST ASSY 1REAR FOOTREST ASSY 1
-
224DN-27431-01-00 FOOTREST, REAR 1FOOTREST, REAR 1
-
234BP-27413-00-00 COVER, FOOTRESTCOVER, FOOTREST
-
2490157-05025-00 SCREW, PAN HEADSCREW, PAN HEAD
-
2591402-20012-00 PIN, COTTERPIN, COTTER
-
2691702-06038-00 PIN, CLEVISPIN, CLEVIS
-
2790501-15001-00 SPRING, COMPRESSIONSPRING, COMPRESSION
-
2893501-04011-00 BALLBALL
-
2990387-064H8-00 COLLARCOLLAR
-
304B5-27437-00-00 WASHER, SPECIALWASHER, SPECIAL
-
314B5-25876-00-00 HOLDER, BRAKE HOSE 2HOLDER, BRAKE HOSE 2
-
3295802-06014-00 BOLT, FLANGEBOLT, FLANGE
-
3395812-08025-00 BOLT, FLANGEBOLT, FLANGE
-
344B5-27440-00-00 REAR FOOTREST ASSY 2REAR FOOTREST ASSY 2
-
354DN-27441-01-00 FOOTREST, REAR 2FOOTREST, REAR 2
-
364BP-27413-00-00 COVER, FOOTRESTCOVER, FOOTREST
-
3790157-05025-00 SCREW, PAN HEADSCREW, PAN HEAD
-
3891402-20012-00 PIN, COTTERPIN, COTTER
-
3991702-06038-00 PIN, CLEVISPIN, CLEVIS
-
4090501-15001-00 SPRING, COMPRESSIONSPRING, COMPRESSION
-
4193501-04011-00 BALLBALL
-
4290387-064H8-00 COLLARCOLLAR
-
434B5-27437-00-00 WASHER, SPECIALWASHER, SPECIAL
-
4495812-08025-00 BOLT, FLANGEBOLT, FLANGE
