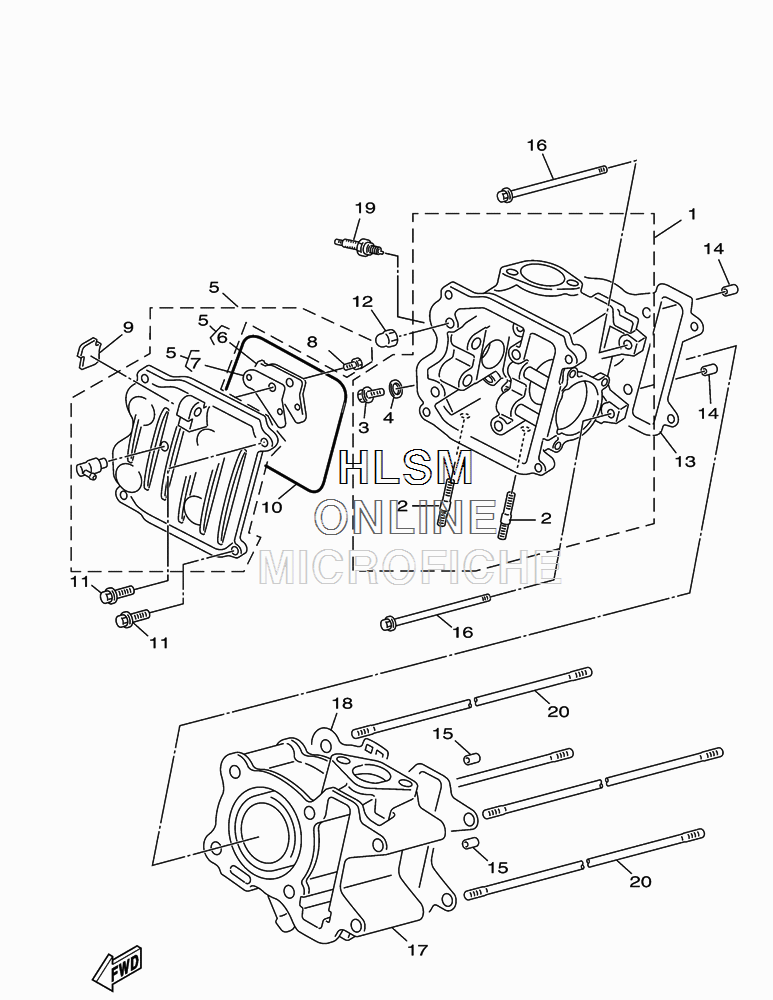

CYLINDER W/ HEAD ASSY. для Yamaha VINO CLASSIC - 2010 года выпуска
-
№АртикулНазвание
-
15ST-E1102-01-00 CYLINDER HEAD ASSYCYLINDER HEAD ASSY
-
290116-08808-00 BOLT, STUDBOLT, STUD
-
390153-06803-00 SCREW, HEXAGONSCREW, HEXAGON
-
490430-06014-00 GASKETGASKET
-
55ST-E1190-11-00 COVER, CYLINDER HEAD 1COVER, CYLINDER HEAD 1
-
65ST-E1165-10-00 PLATE, BREATHERPLATE, BREATHER
-
75ST-E1169-10-00 GASKET, BREATHER COVERGASKET, BREATHER COVER
-
890149-05801-00 SCREWSCREW
-
95ST-E131M-00-00 COVERCOVER
-
1093211-18800-00 O-RINGO-RING
-
1195027-06020-00 BOLT, FLANGEBOLT, FLANGE
-
1290176-06065-00 NUT, CROWNNUT, CROWN
-
135ST-E1181-00-00 GASKET, CYLINDER HEAD 1GASKET, CYLINDER HEAD 1
-
1491810-14807-00 PIN, DOWELPIN, DOWEL
-
1591810-14807-00 PIN, DOWELPIN, DOWEL
-
1695027-06080-00 BOLT, FLANGEBOLT, FLANGE
-
175ST-E1311-00-00 CYLINDER 1CYLINDER 1
-
185ST-E1351-10-00 GASKET, CYLINDERGASKET, CYLINDER
-
19NGK-CR7E0-00-00 PLUG, SPARK (NGK CR7E)PLUG, SPARK (NGK CR7E)
-
205ST-E1391-00-00 BOLT, STUD 1BOLT, STUD 1
