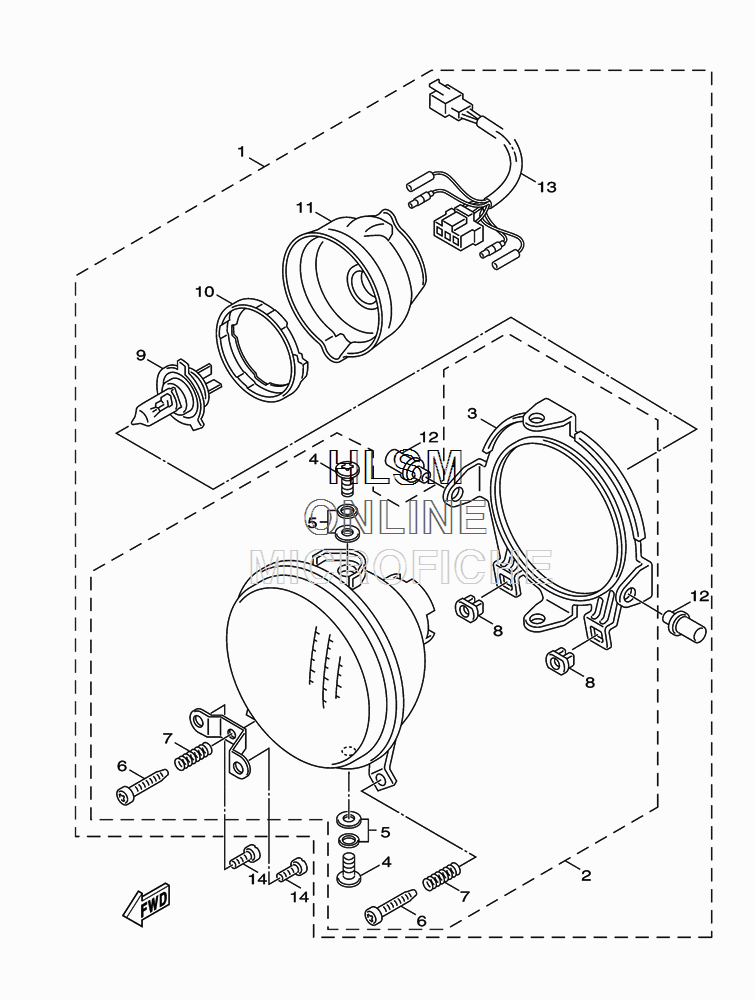

HEADLIGHT ASSY. для Yamaha VINO CLASSIC - 2010 года выпуска
-
№АртикулНазвание
-
13D1-H4310-01-00 HEADLIGHT UNIT ASSYHEADLIGHT UNIT ASSY
-
23D1-H4300-00-00 HEADLIGHT ASSYHEADLIGHT ASSY
-
33D1-H4318-00-00 STAY, HEADLIGHT 1STAY, HEADLIGHT 1
-
45PJ-H4325-00-00 SCREW, RIM FITTINGSCREW, RIM FITTING
-
55YR-H4344-10-00 WASHER, PLAINWASHER, PLAIN
-
65YR-H4331-10-00 SCREW, RIM ADJUSTINGSCREW, RIM ADJUSTING
-
75YR-H4332-00-00 SPRING, SCREWSPRING, SCREW
-
85PJ-H4317-00-00 NUTNUT
-
91ML-84314-00-XX BULB, HEADLIGHTBULB, HEADLIGHT
-
105PJ-H4397-10-00 COVER, SOCKETCOVER, SOCKET
-
115PJ-H4378-10-00 CAPCAP
-
125YR-H4345-00-00 DAMPER, HEADLIGHTDAMPER, HEADLIGHT
-
133D1-H331E-00-00 CORD ASSYCORD ASSY
-
1497707-50016-00 SCREW, TRUSS HEAD TAPPINGSCREW, TRUSS HEAD TAPPING
