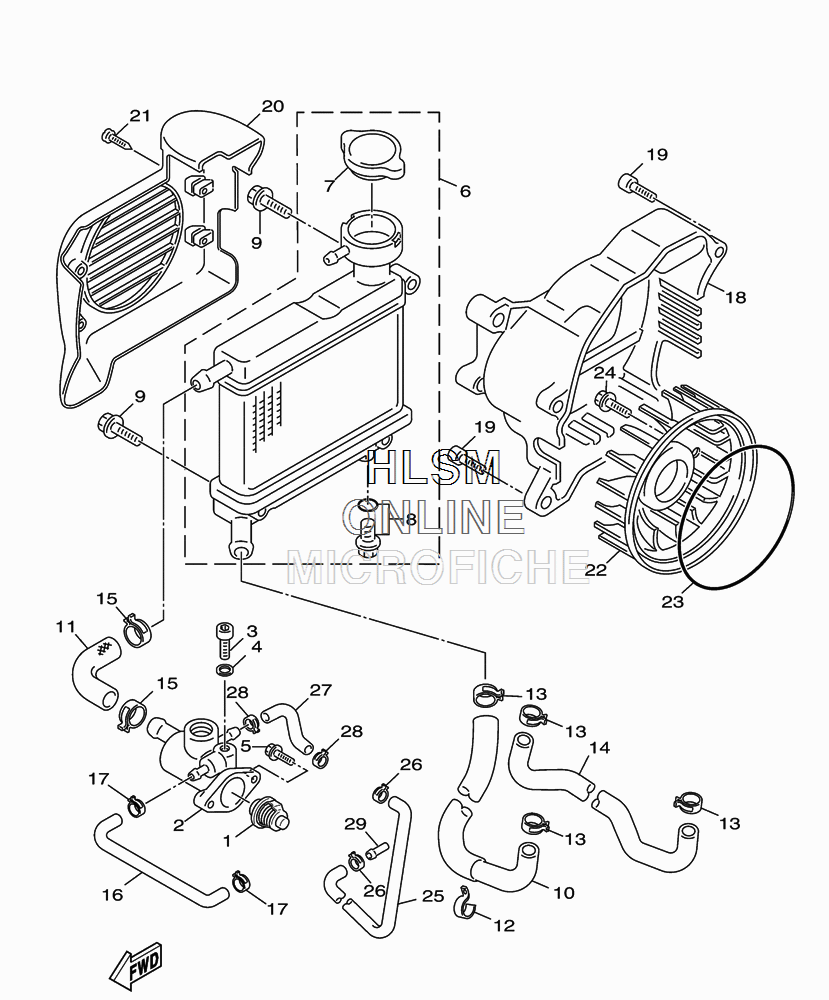

RADIATOR для Yamaha VINO CLASSIC - 2010 года выпуска
-
№АртикулНазвание
-
130Y-12411-00-00 THERMOSTATTHERMOSTAT
-
25ST-E2413-00-00 COVER, THERMOSTATCOVER, THERMOSTAT
-
391317-06010-00 BOLTBOLT
-
490430-06166-00 GASKETGASKET
-
595027-06020-00 BOLT, FLANGEBOLT, FLANGE
-
65ST-E240A-02-00 RADIATOR ASSYRADIATOR ASSY
-
75ST-E2590-00-00 CAP, RADIATORCAP, RADIATOR
-
85VU-12478-00-00 COCK, DRAINCOCK, DRAIN
-
997707-60530-00 SCREW, TAPPINGSCREW, TAPPING
-
105ST-E2482-01-00 PIPE 2PIPE 2
-
115ST-E2483-00-00 PIPE 3PIPE 3
-
1290462-10806-00 CLAMPCLAMP
-
1390467-20810-00 CLIPCLIP
-
145ST-E2477-00-00 PIPE 7PIPE 7
-
1590467-20810-00 CLIPCLIP
-
165ST-E243F-00-00 HOSE,3HOSE,3
-
1790467-09803-00 CLIPCLIP
-
185ST-E2621-00-00 CASE, FANCASE, FAN
-
1995027-06020-00 BOLT, FLANGEBOLT, FLANGE
-
205ST-E2467-00-00 COVER, RADIATORCOVER, RADIATOR
-
2197707-60530-00 SCREW, TAPPINGSCREW, TAPPING
-
225ST-E2611-01-00 FANFAN
-
2393210-76801-00 O-RINGO-RING
-
2495027-06012-00 BOLT, FLANGEBOLT, FLANGE
-
255ST-E243A-00-00 HOSE 1HOSE 1
-
2690467-09803-00 CLIPCLIP
-
275ST-E243E-00-00 HOSE 2HOSE 2
-
2890467-09803-00 CLIPCLIP
-
295ST-E3115-00-00 CONNECTOR, SUCTION PIPECONNECTOR, SUCTION PIPE
