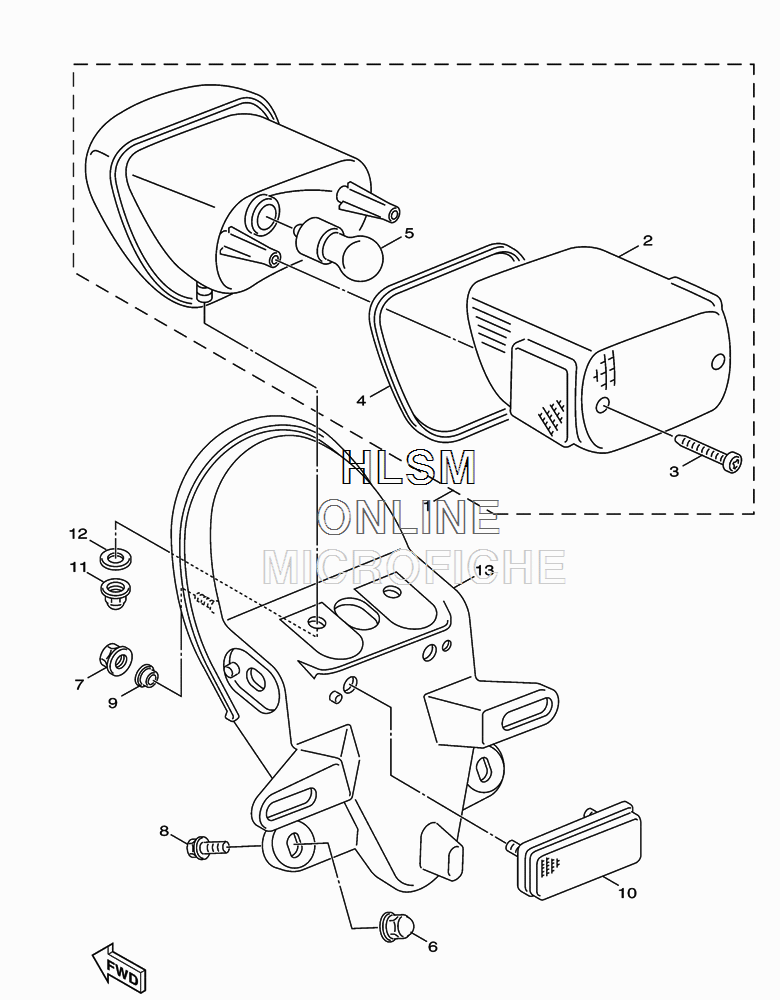

TAILLIGHT ASSY. для Yamaha VINO CLASSIC - 2010 года выпуска
-
№АртикулНазвание
-
13D1-H4700-00-00 TAILLIGHT ASSYTAILLIGHT ASSY
-
23D1-H472C-00-00 LENS, TAILLIGHTLENS, TAILLIGHT
-
397707-40625-00 SCREW, TAPPINGSCREW, TAPPING
-
43D1-H4723-00-00 GASKET, TAIL LENSGASKET, TAIL LENS
-
53D1-H4714-00-00 BULBBULB
-
690176-06055-00 NUT, CROWNNUT, CROWN
-
795707-06500-00 NUT, FLANGENUT, FLANGE
-
890109-06839-00 BOLTBOLT
-
990387-068S1-00 COLLARCOLLAR
-
105ST-H5130-00-00 REAR REFLECTOR ASSYREAR REFLECTOR ASSY
-
1190176-06055-00 NUT, CROWNNUT, CROWN
-
1290201-06557-00 WASHER, PLATEWASHER, PLATE
-
133D1-H4511-00-00 BASE, TAILLIGHTBASE, TAILLIGHT
