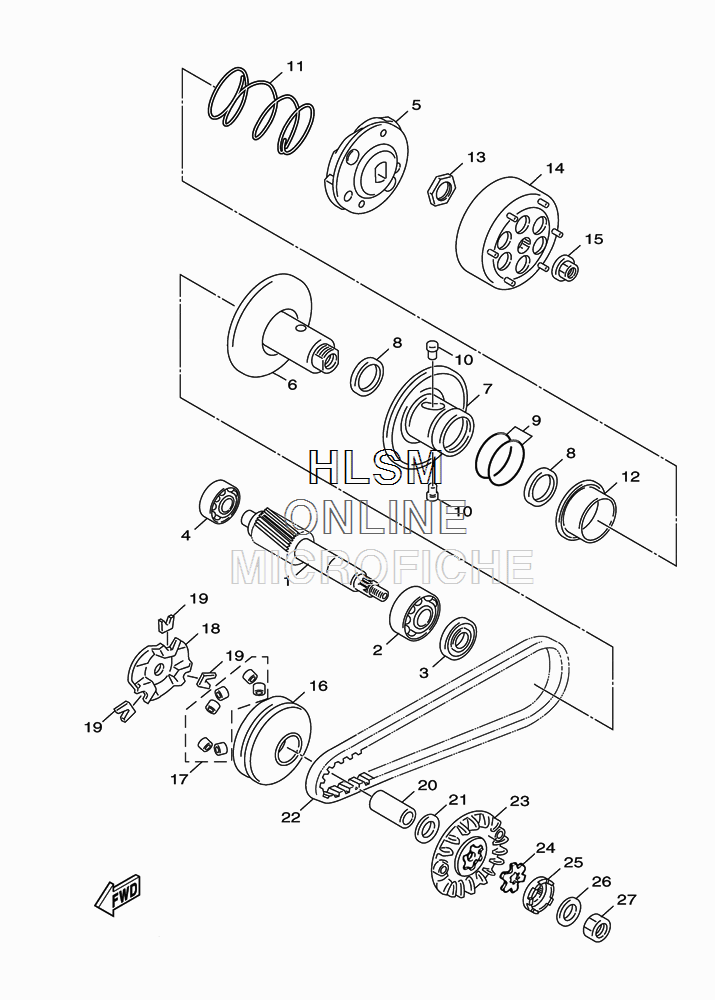

CLUTCH ASSY. для Yamaha ZUMA - 2010 года выпуска
-
№АртикулНазвание
-
14WX-E6111-01-00 GEAR, PRIMARY DRIVEGEAR, PRIMARY DRIVE
-
293306-203YE-00 BEARINGBEARING
-
393102-17810-00 OIL SEALOIL SEAL
-
493306-200Y1-00 BEARINGBEARING
-
55PJ-E6620-00-00 CLUTCH CARRIER ASSYCLUTCH CARRIER ASSY
-
65SU-E7660-00-00 SECONDARY FIXED SHEAVE COMP.SECONDARY FIXED SHEAVE COMP.
-
75ST-E7670-01-00 SECONDARY SLIDING SHEAVESECONDARY SLIDING SHEAVE
-
85SU-E7465-00-00 OIL SEALOIL SEAL
-
95SU-E7465-10-00 O-RINGO-RING
-
105SU-E7664-00-00 PIN, GUIDEPIN, GUIDE
-
115ST-E7683-00-00 SPRING, SECONDARYSPRING, SECONDARY
-
125SU-E7684-00-00 SEAT, SECONDARY SPRINGSEAT, SECONDARY SPRING
-
135SU-E7668-00-00 NUTNUT
-
145ST-E6611-01-00 CLUTCH HOUSING COMP.CLUTCH HOUSING COMP.
-
1590179-10609-00 NUTNUT
-
164WX-E7620-00-00 PRIMARY SLIDING SHEAVE COMP.PRIMARY SLIDING SHEAVE COMP.
-
174DM-E7632-00-00 WEIGHTWEIGHT
-
183XY-E7623-00-00 CAMCAM
-
194NG-17653-00-00 SLIDERSLIDER
-
2090387-13897-00 COLLARCOLLAR
-
2190201-133M8-00 WASHER, PLATEWASHER, PLATE
-
223AA-17641-00-00 V-BELTV-BELT
-
233XY-E7611-00-00 SHEAVE, PRIMARY FIXEDSHEAVE, PRIMARY FIXED
-
2490214-13055-00 WASHER, CLAWWASHER, CLAW
-
253KJ-15657-00-00 CLUTCH, ONEWAYCLUTCH, ONEWAY
-
2690208-10012-00 WASHER, CONICAL SPRINGWASHER, CONICAL SPRING
-
2790170-10219-00 NUTNUT
