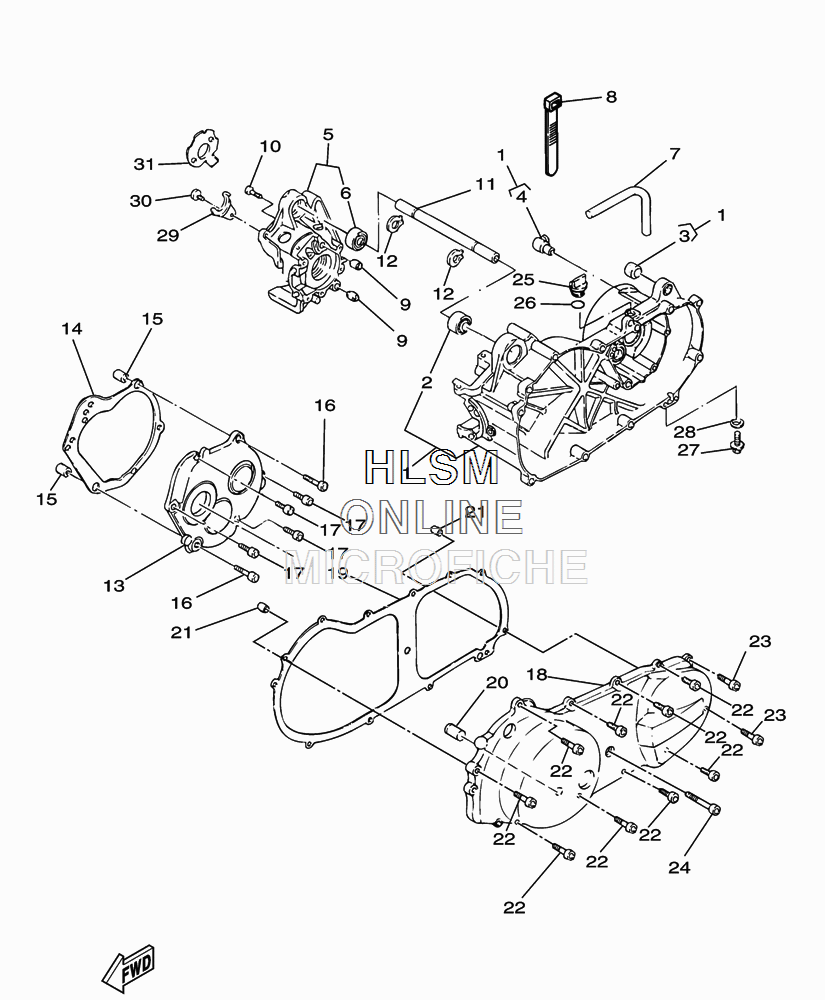

CRANKCASE ASSY. для Yamaha ZUMA - 2010 года выпуска
-
№АртикулНазвание
-
14WX-W1511-02-00 CRANKCASE 1CRANKCASE 1
-
293306-003Y4-00 BEARINGBEARING
-
34X6-F2216-00-00 BUSH, REAR SHOCK ABSORBERBUSH, REAR SHOCK ABSORBER
-
43XG-E5371-00-00 BREATHERBREATHER
-
54WX-W1512-00-00 CRANKCASE 2CRANKCASE 2
-
693306-003Y4-00 BEARINGBEARING
-
791A10-07033-00 TUBE, FLEXIBLETUBE, FLEXIBLE
-
890465-08028-00 CLAMPCLAMP
-
991812-16805-00 PIN, DOWELPIN, DOWEL
-
1091318-06035-00 BOLTBOLT
-
113XG-E5317-00-00 SPACER, ENGINE MOUNTSPACER, ENGINE MOUNT
-
1299009-17400-00 CIRCLIPCIRCLIP
-
134WX-E5421-00-00 COVER, CRANKCASE 2COVER, CRANKCASE 2
-
145DA-E5461-10-00 GASKET, CRANKCASE COVER 2GASKET, CRANKCASE COVER 2
-
1591810-14807-00 PIN, DOWELPIN, DOWEL
-
1691318-06035-00 BOLT (4MY)BOLT (4MY)
-
1791318-06020-00 BOLT (4FL)BOLT (4FL)
-
184WX-E5411-00-33 COVER, CRANKCASE 1COVER, CRANKCASE 1
-
195DA-E5451-10-00 GASKET, CRANKCASE COVER 1GASKET, CRANKCASE COVER 1
-
203XG-E5659-00-00 SHAFTSHAFT
-
2191810-14807-00 PIN, DOWELPIN, DOWEL
-
2291317-06025-00 BOLTBOLT
-
2391317-06035-00 BOLTBOLT
-
2491317-06045-00 BOLTBOLT
-
254Y4-E5363-00-00 PLUG, OILPLUG, OIL
-
2693210-14805-00 O-RINGO-RING
-
2795807-08016-00 BOLT, FLANGEBOLT, FLANGE
-
2890430-08119-00 GASKETGASKET
-
294VP-E5128-00-00 HOLDERHOLDER
-
3098507-06012-00 SCREW, PAN HEADSCREW, PAN HEAD
-
314SC-E5462-10-00 GASKET, CRANKCASE COVER 3GASKET, CRANKCASE COVER 3
